Troubleshooting 151
Disk Carrier LED Indicators
The LED on the physical disk carrier indicates the state of each physical disk.
Each disk carrier in your enclosure has two LEDs: an activity LED (green)
and a status LED (bicolor, green/amber) as shown in Figure 9-1. The activity
LED is active whenever a disk is being accessed while the status LED
indicates when a disk is being spun up, is rebuilding, or is in a fault state.

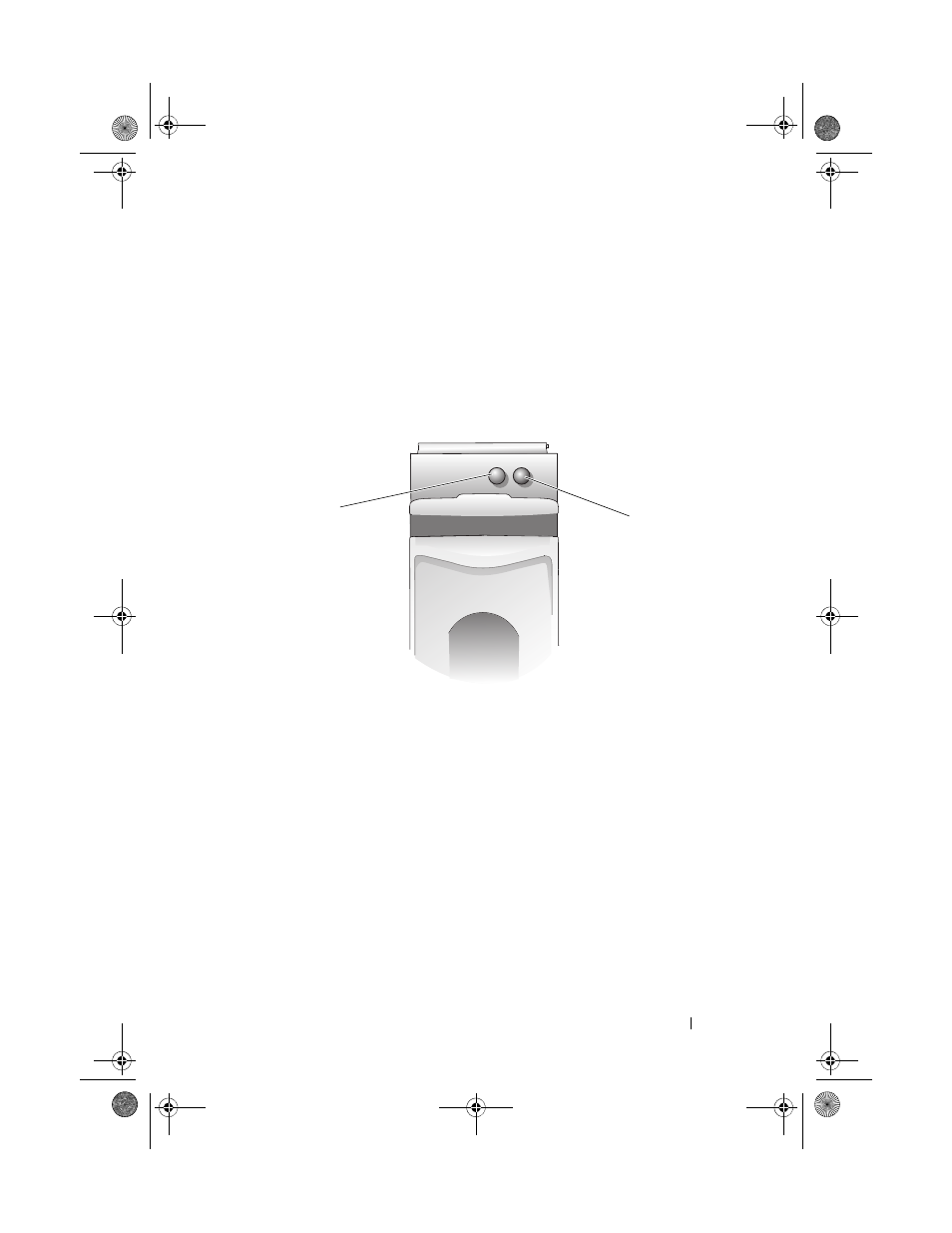

Figure 9-1. Disk Carrier LED Indicators
1 activity LED 2 status LED
2
1
