PIP/POP/PBP

You can view two active sources simultaneously using Picture-In-Picture (PIP), Picture-Outside-

Picture (POP), or Picture-By-Picture (PBP).

For POP, you can select from three different POP options:

POP

— One large POP window to the left and a smaller, centered window on the right.

POP3

— One large POP window to the left and three smaller, vertically-aligned windows on

the right.

POP12

— One large, centered POP window surrounded by twelve smaller windows.

The remote control offers the following PIP/POP/PBP

options:

•Use the

PIP SEL

button or the

POP/PBP

button on the

remote control to turn on and off PIP, POP, and PBP.

•f If you are in PIP, POP, or PBP mode, use the

SWAP

button on the remote control to switch between the two

windows.

•Use the

POS

button to change which corner of the screen

the

PIP

window appears.

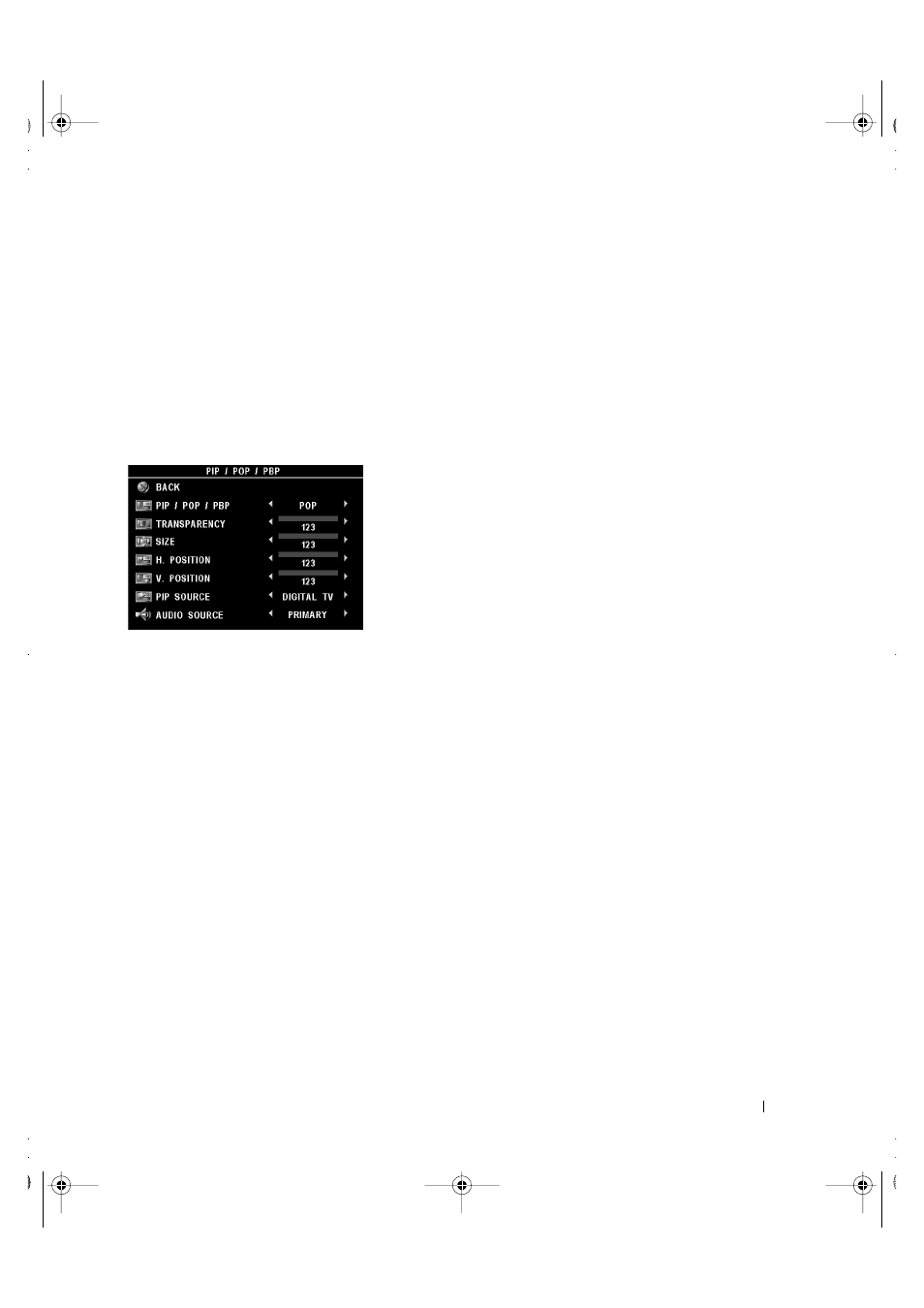

In the TV Menu, you can adjust the

Transparency

, the

Size

, and

H

(horizontal) and

V

(vertical)

position of the PIP/POP/PBP windows. When you are selecting the horizontal orientation, - moves

the window left and + moves the window to the right. When you are adjusting the vertical

orientation, 0 is at the top of the screen and 100 is at the bottom of the screen.

PIP Source

— Enables you to select the source for the PIP window. Refer to PIP / POP / PBP

compatibility on this page for more information.

POP Scan Mode

— Enables you to select

Sequential

or

Float

.

Float

mode plays the source for

selected channels that appear in the POP windows.

Sequential

rotates through each window and

plays all of the preselected channels. The rotation mode runs through all the available channels

before it starts again at the lowest channel.

PIP/POP/PBP Compatibility

When using PIP/POP/PBP you can select any of the input sources that appear in the PIP/POP/PBP

windows. The only input sources that cannot work together are HDMI with HDMI, DTV with

DTV, and HDMI with Composite 1080i.
