18 Setting Up Your TV
w
w
w
.d
el
l.
co
m
|
s
up
po
rt
.d
el
l.
co
m
FILE LOCATION: D:\manual\Dell\W4201OM\approval-B\ch2e.fm
DELL CO NFI DENTI AL – P RELI M INA RY 12/ 28/05 – FOR PR O OF ON LY

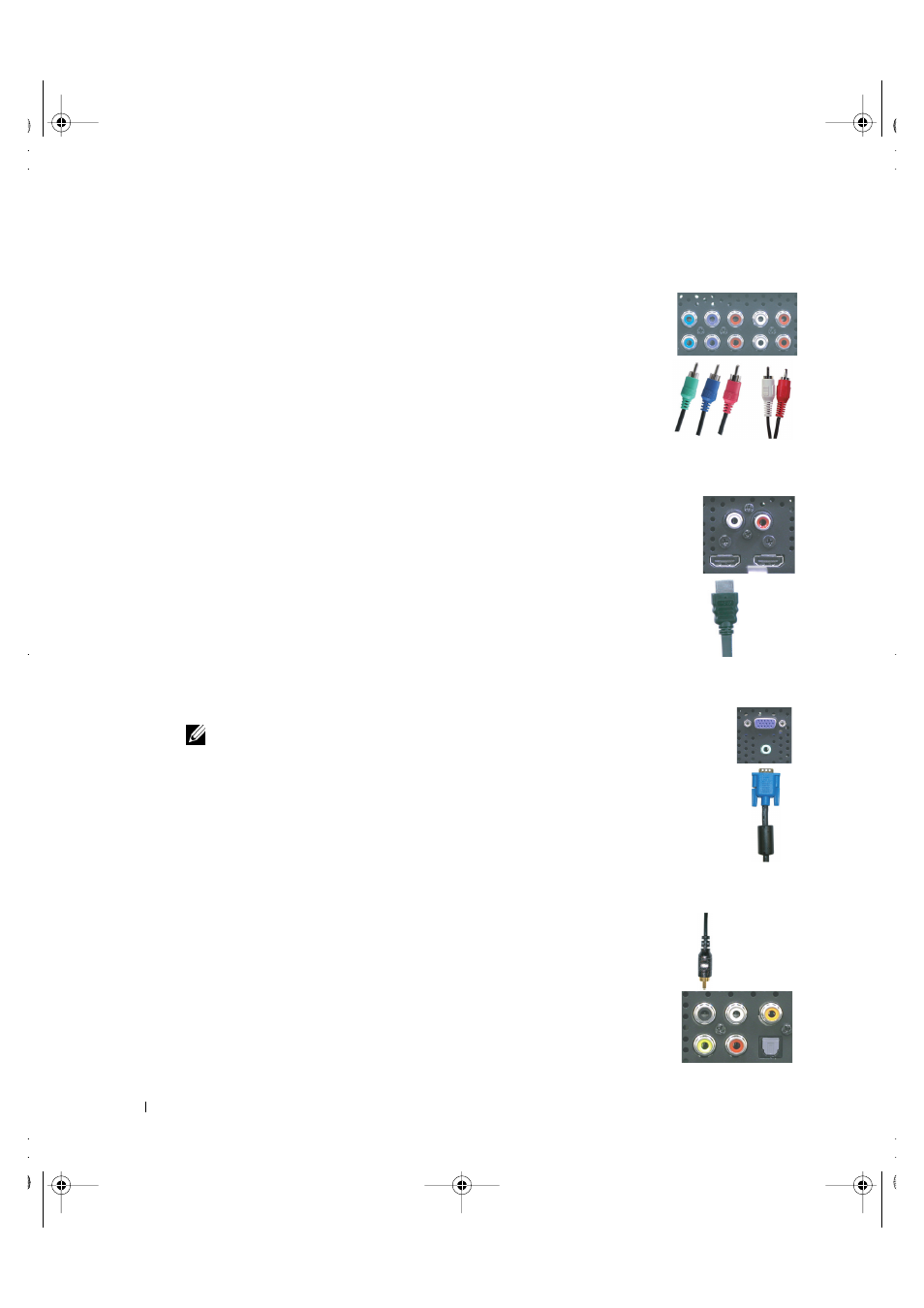

Using the Component Connector
1
Turn off the TV and unplug the power cord.
2
Connect your device using the component video and audio cables.
3
Plug in the power cords for the TV and devices and turn them on.
4
Enter the TV Menu and select AV5 or AV6. See "Input Select" on
page 28 for more information.
Using the HDMI Connector
1
Turn off the TV and unplug the power cord.
2
Connect your device using the HDMI connector.
3
Plug in the power cords for the TV and devices and turn them on.
4
Enter the TV Menu and select HDMI1 or HDMI 2. See "Input
Select" on page 28 for more information.
Using the VGA Connector
1
Turn off the TV and unplug the power cord.
NOTE: Suggest to use a VGA cable which has a ferrite core.
2
Connect the VGA and audio cables to your TV and to your computer.
3
Plug in the power cords for the TV and devices and turn them on.
4
Enter the TV Menu and select VGA. See "Input Select" on page 28
for more information.
Using the Subwoofer Connector
1
Turn off the TV and unplug the power cord.
2
Connect a subwoofer cable to your TV and to a powered subwoofer.
3
Plug in the power cords for the TV and subwoofer and turn them on.
