Setting Up Your TV
21
FILE LOCATION:
D:\manual\Dell\W4201OM\approval-B\ch2e.fm
DELL CO NFI DENTI AL – P RELI M INA RY 12/ 28/05 – FOR PR O OF ON LY
w
w
w
.d
el
l.
co
m
|
s
up
po
rt
.d
el
l.
co
m

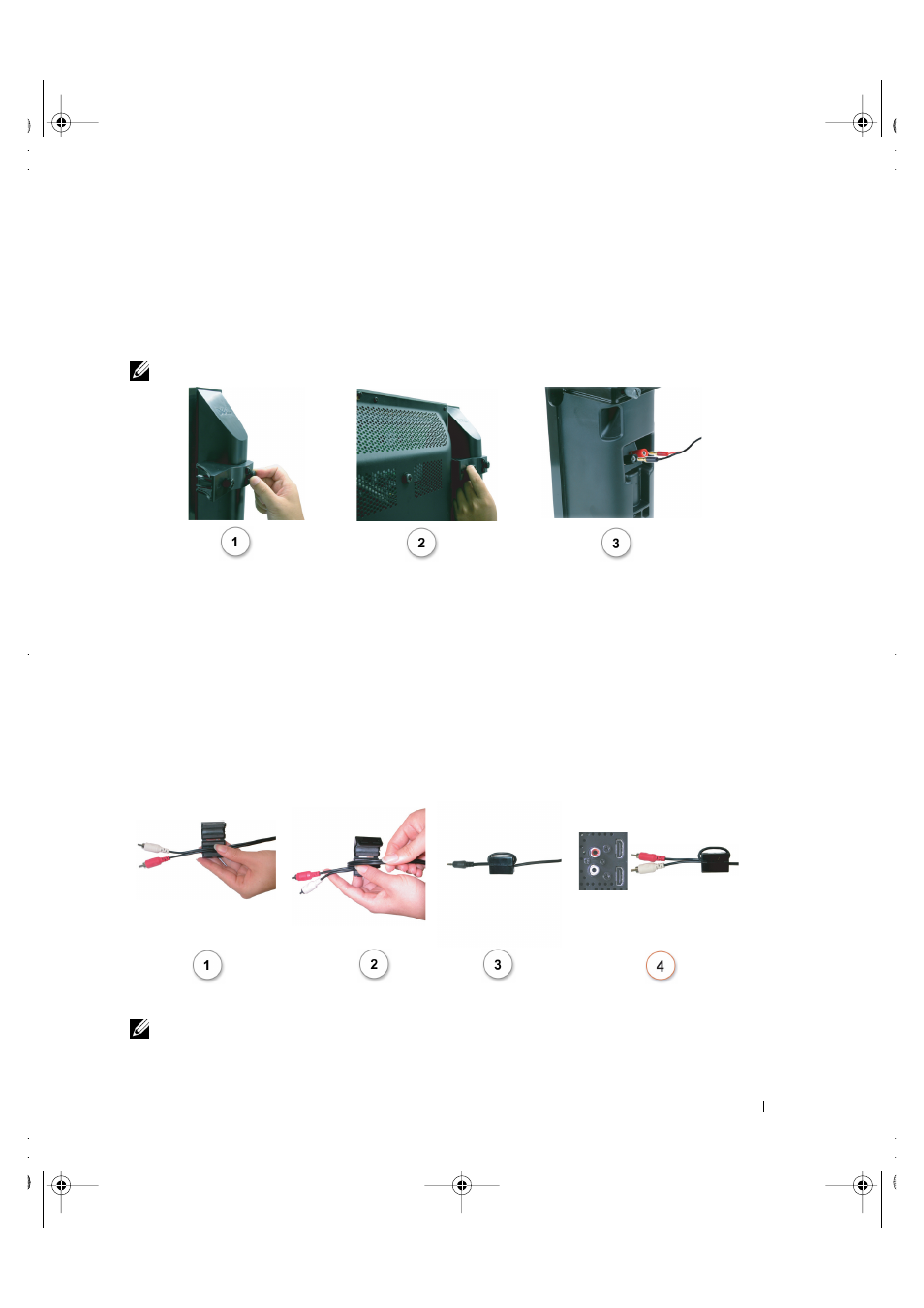

Attaching the Speakers to the W5001C TV
1
Attach the brackets to the speakers and tighten the screws.
2
Attach the brackets to the TV and tighten the screws.
3
Connect the speaker cables to the speaker connectors.
NOTE:
You may use a screwdriver to ensure all screws are completely tightened.
Installing the RCA-Phono Cable With Ferrite Core for your TV
1
Open the attached ferrite core then put the cable inside it.
2
Leave 4cm clearance between ferrite core and connector, wind a loop, and then close the
ferrite core.
3
Repeat steps 1 & 2 to the other end of the connector.
4
Connect the DVI audio connectors if you have connected a device such as a PC to the HDMI
connectors with a DVI to HDMI cable/dongle.
NOTE:
DVI to HDMI cable/ dongle and RCA-phono cable are not included with your TV.
