Installing System Components

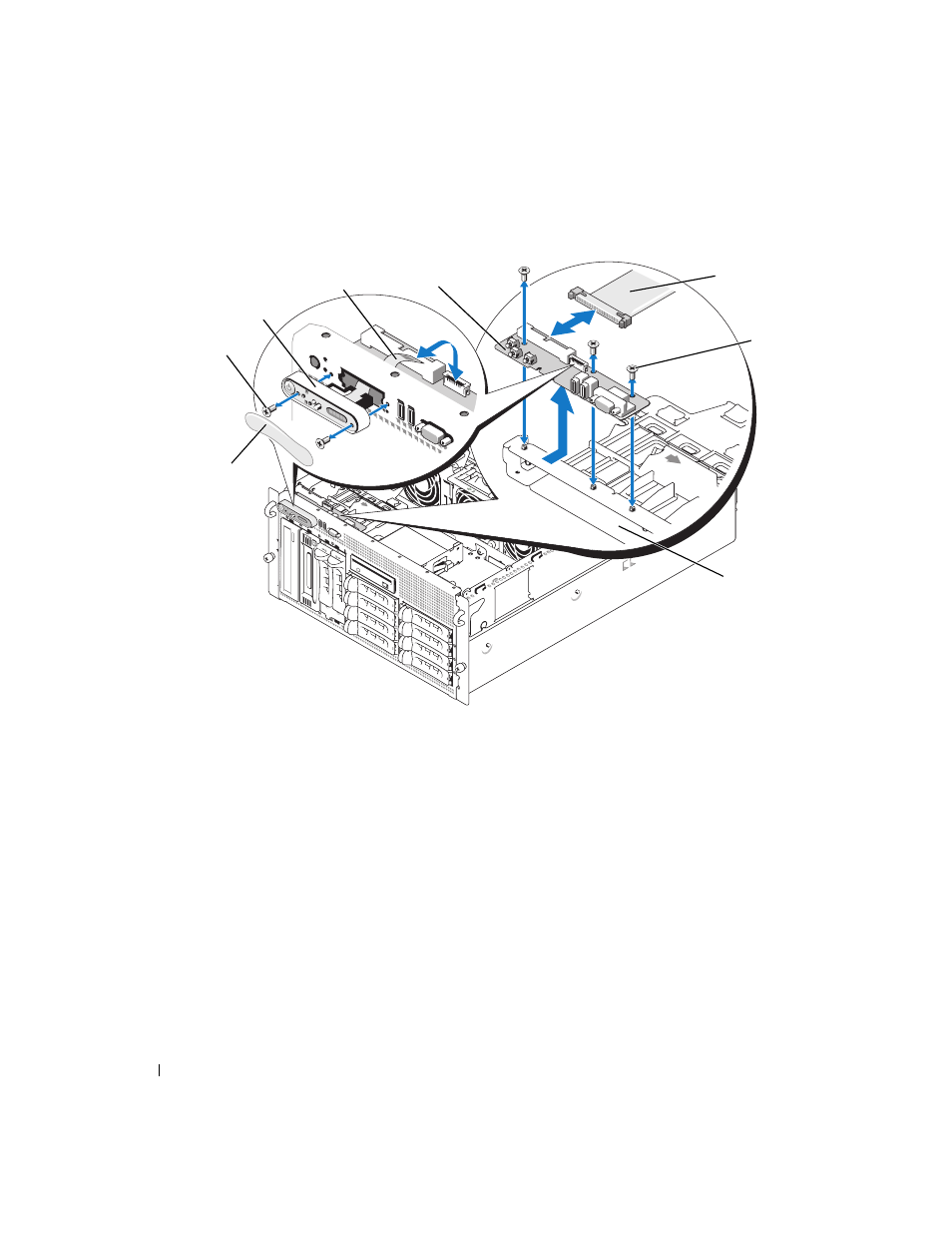

Figure 3-32. Removing the Control Panel Assembly
Installing the Control Panel Assembly
The following procedure applies to either a rack or tower system. Figure 3-32 illustrates a control panel
assembly in the rack orientation.
1 Insert the control panel assembly display module into the chassis cutout and secure with the two Torx
screws.
2 Affix the control panel label to the display module.
3 Install the control panel board in the system chassis and secure with the three Phillips screws. See
Figure 3-32.
4 Connect the display module ribbon cable to the control panel board. See Figure 3-32.
1 display module screws (2) 2 display module 3 display module cable
4 control panel board 5 control panel cable 6 screws (3)
7 system chassis 8 display module label
