60
Installing System Components

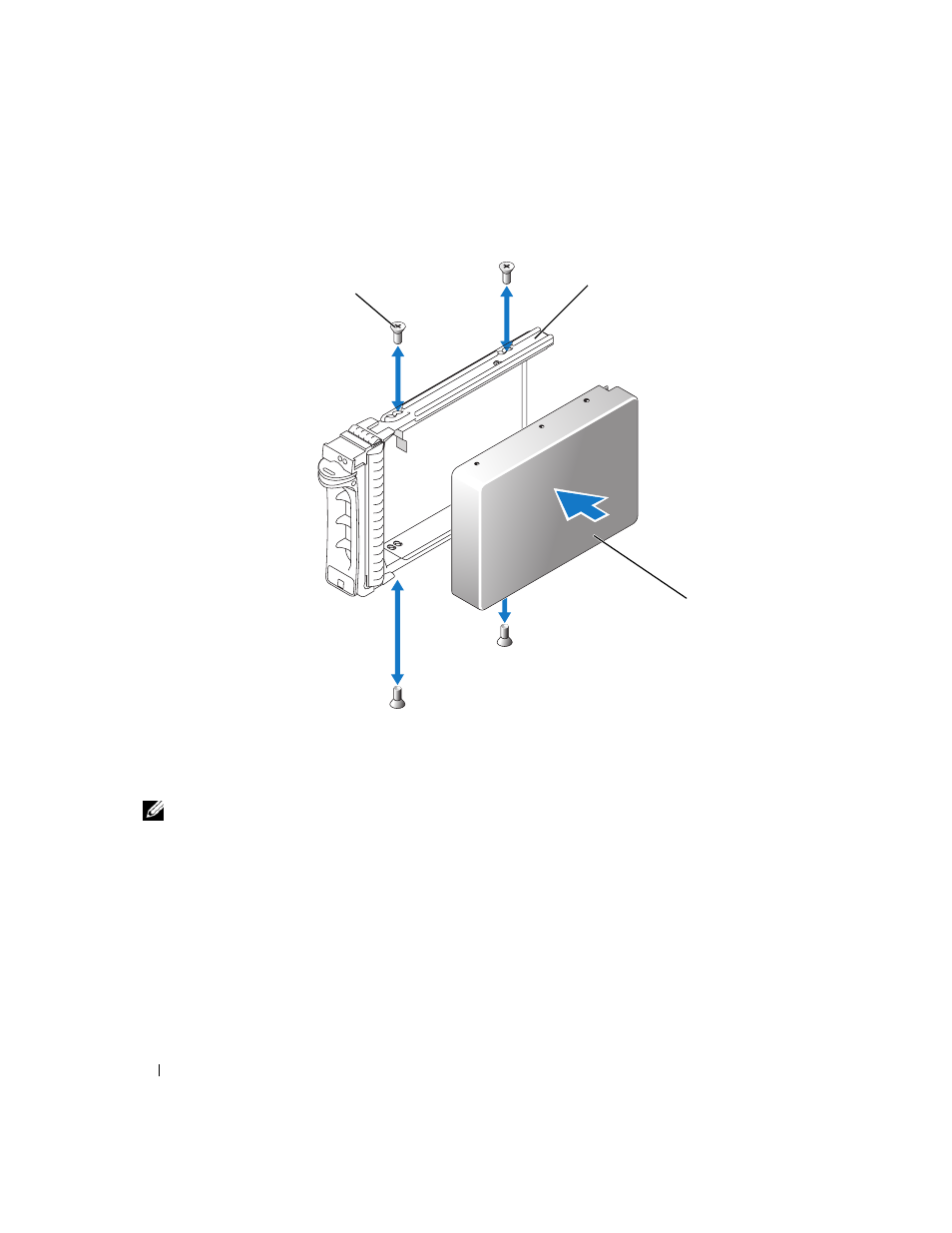

Figure 3-8. Installing a SATA Hard Drive Into a SATA Drive Carrier
Installing a SATA Hard Drive and Interposer Card Into a SATAu Hard-Drive Carrier
NOTE:
When you install a SATA hard drive into a SATAu drive carrier, you must install an interposer card onto the
back of the hard drive. The SATAu drive carrier is labeled "SATAu" and also has marks indicating the SAS and SATA
mounting screws.
1 Insert the SATA hard drive into the SATAu hard-drive carrier with the connector end of the drive at
the rear. See Figure 3-9.
2 Viewing the assembly as shown in Figure 3-9, align the bottom rear screw hole on the hard drive
with the hole labeled "SATAu" on the hard drive carrier.
When aligned correctly, the rear of the interposer will be flush with the rear of the hard-drive carrier.
3 Attach the four screws to secure the hard drive to the hard-drive carrier. See Figure 3-9.
1 screws (4) 2 SATA drive carrier 3 SATA hard drive
1
3
2
