Installing System Components

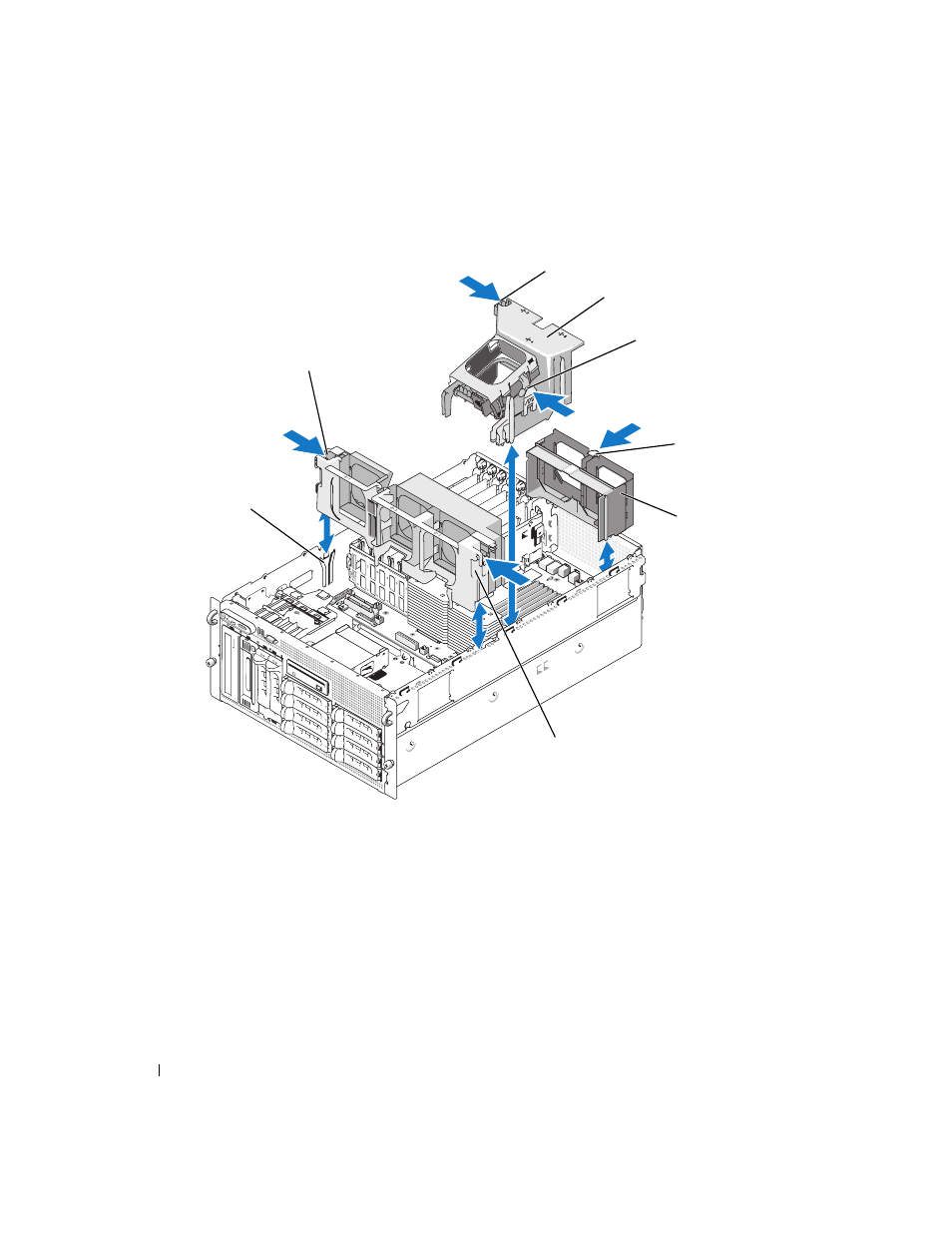

Figure 3-20.

Installing and Removing the Fan Brackets and Cooling Shroud

1

cooling shroud latch (left)

2

cooling shroud

3

cooling shroud latch (right)

4

back fan bracket release latch

5

back fan bracket

6

center fan bracket

7

chassis slot

8

center fan bracket release
latch (2)

8

2

6

5

4

1

3

7
