Installing System Components

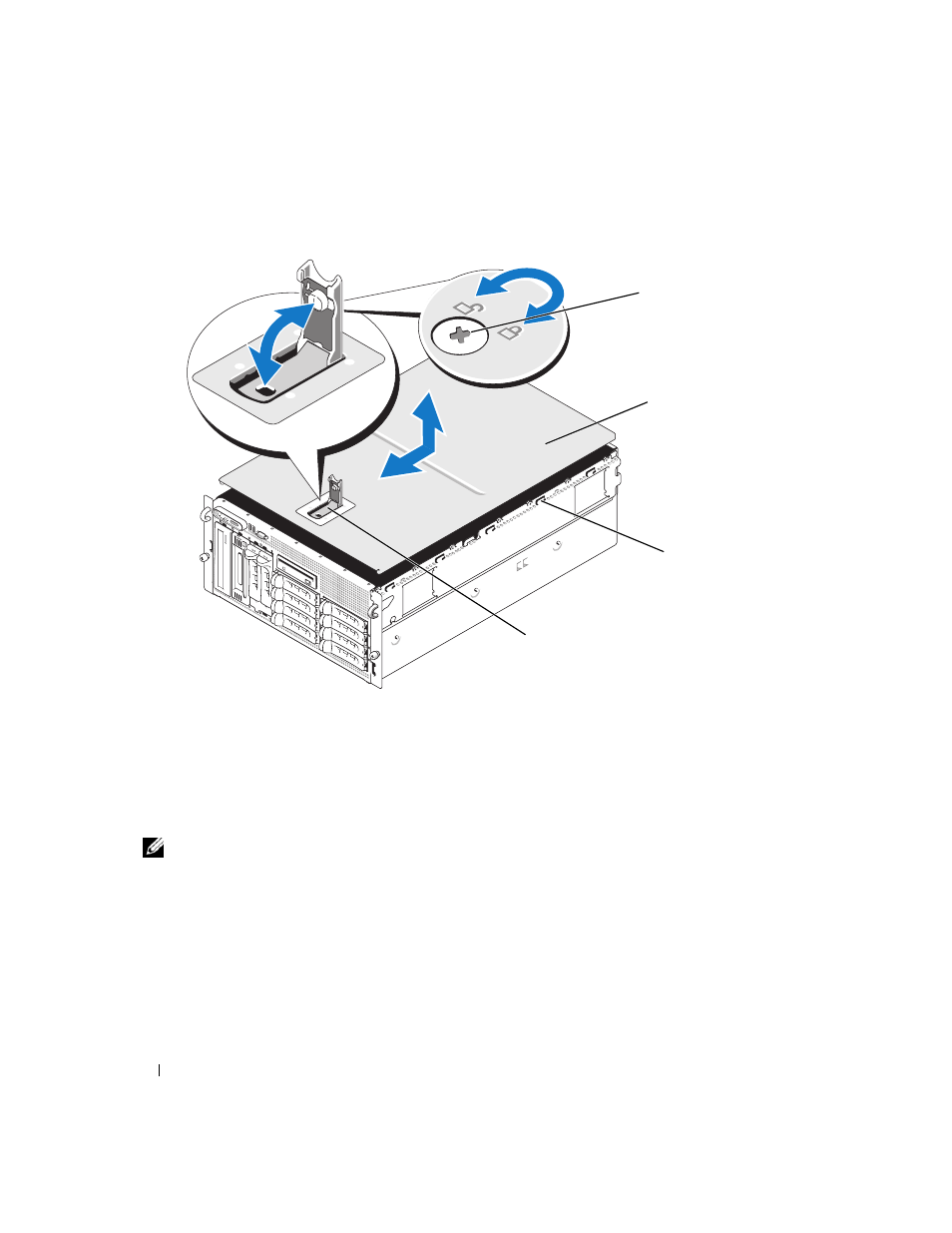

Figure 3-4.

Installing and Removing the System Cover

Hot-Plug Hard Drives

Figure 3-5 shows how the SAS/SATA hot-plug drive bays are numbered in the rack-mount orientation.

NOTE:

For the tower orientation, drive bays 8 and 9 are reversed.

1

latch release lock

2

system cover

3

chassis hooks

4

cover latch

3

1

2

4
