Dell PowerEdge 2900 - Manual (Page 88)

88
Installing System Components

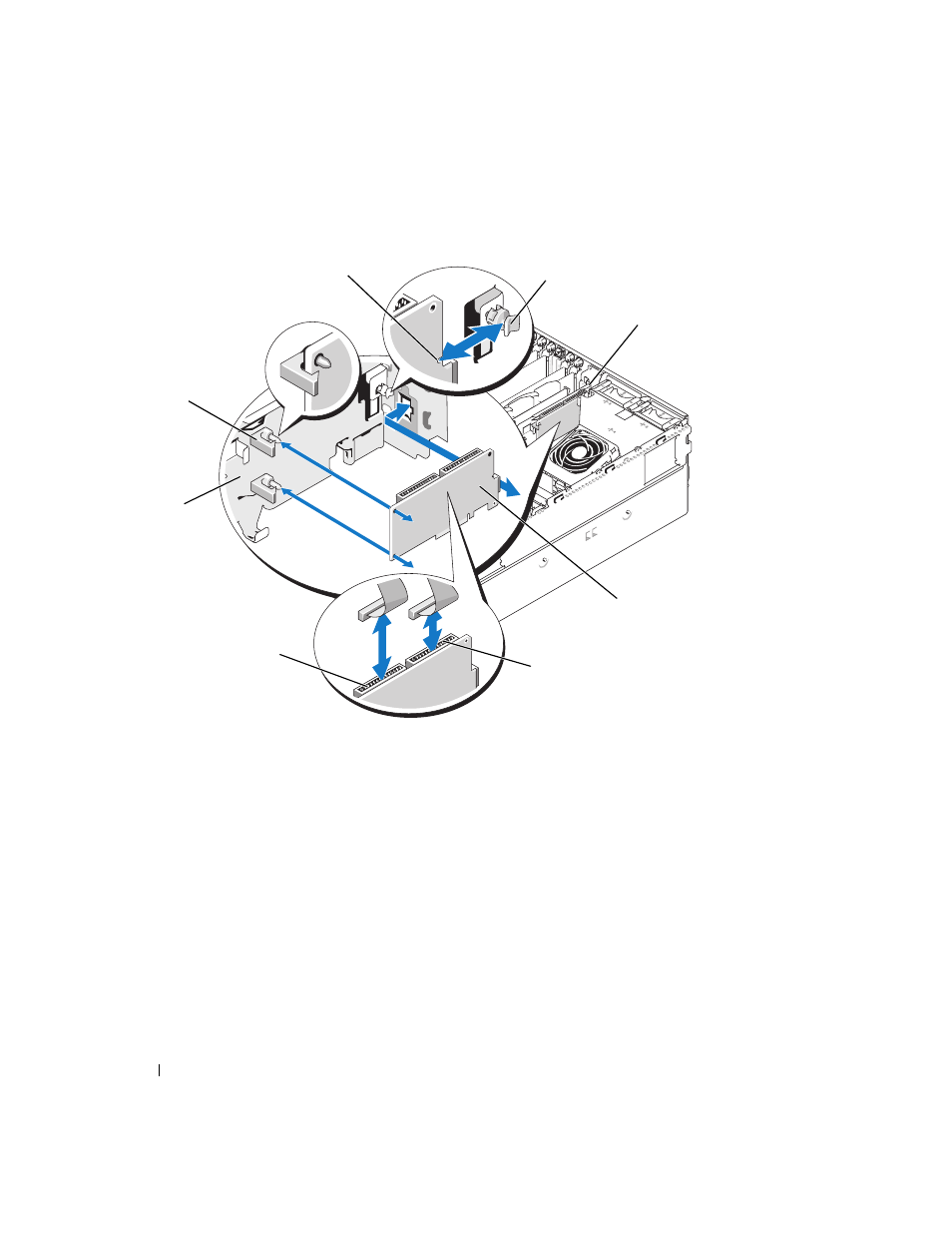

Figure 3-23. Installing a RAC Card
5 Angle the RAC card so that its NIC connector inserts through the back-panel RAC card opening.
See Figure 3-23.
6 Attach the card to the expansion-bay bracket:
a Position the RAC card on the expansion-bay bracket so that the plastic standoff at the back of the
bracket inserts into the notch on the edge of the RAC card.
b Carefully press the back end of the card onto the two plastic standoffs until the clips on the
standoffs snap over the card edges. See Figure 3-23.
1 notch in card edge 2 back standoff 3 NIC connector cutout
4 RAC card 5 RAC connector 2 6 RAC connector 1
7 expansion-bay bracket 8 standoffs with card-edge clips
(2)
2
6
7
8
4
3
5
1
