104
Installing System Components

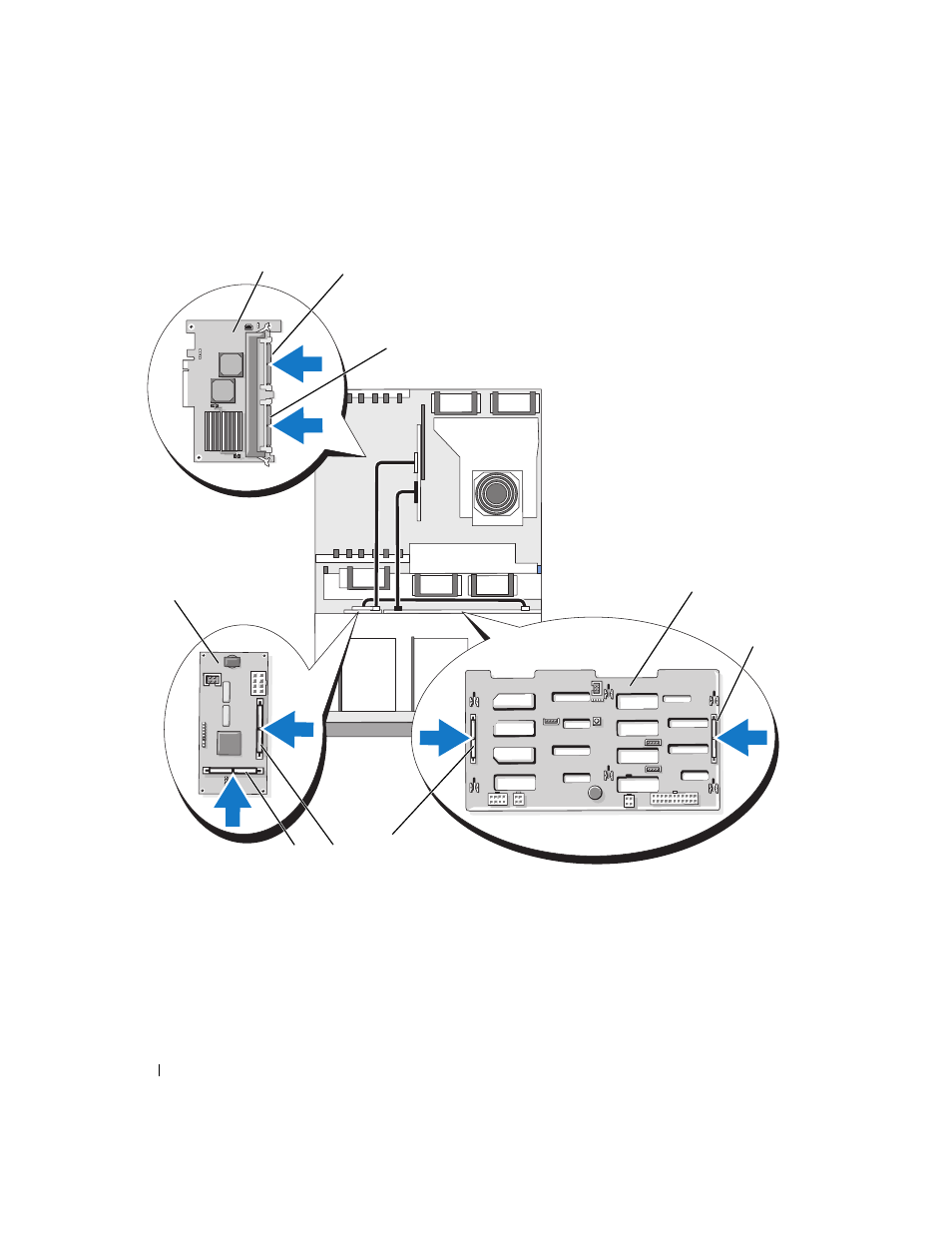

Figure 3-31. Cabling the SAS RAID Controller to the 1x8 and 1x2 Backplane
1 SAS RAID controller daughter
card (DIMM not shown) 2 SAS_1 connector (connect to
SAS_B_IN connector) 3 SAS_0 connector (connect to
SAS_A connector)
4 1x8 SAS backplane 5 SAS_B connector 6 SAS_A connector
7 SAS_B_IN connector 8 SAS_B_OUT connector
(connect to SAS_B connector) 9 1x2 SAS backplane
2
3
1
4
6
5
7 8
9
