8 About the System
Front-Panel Features and Indicators

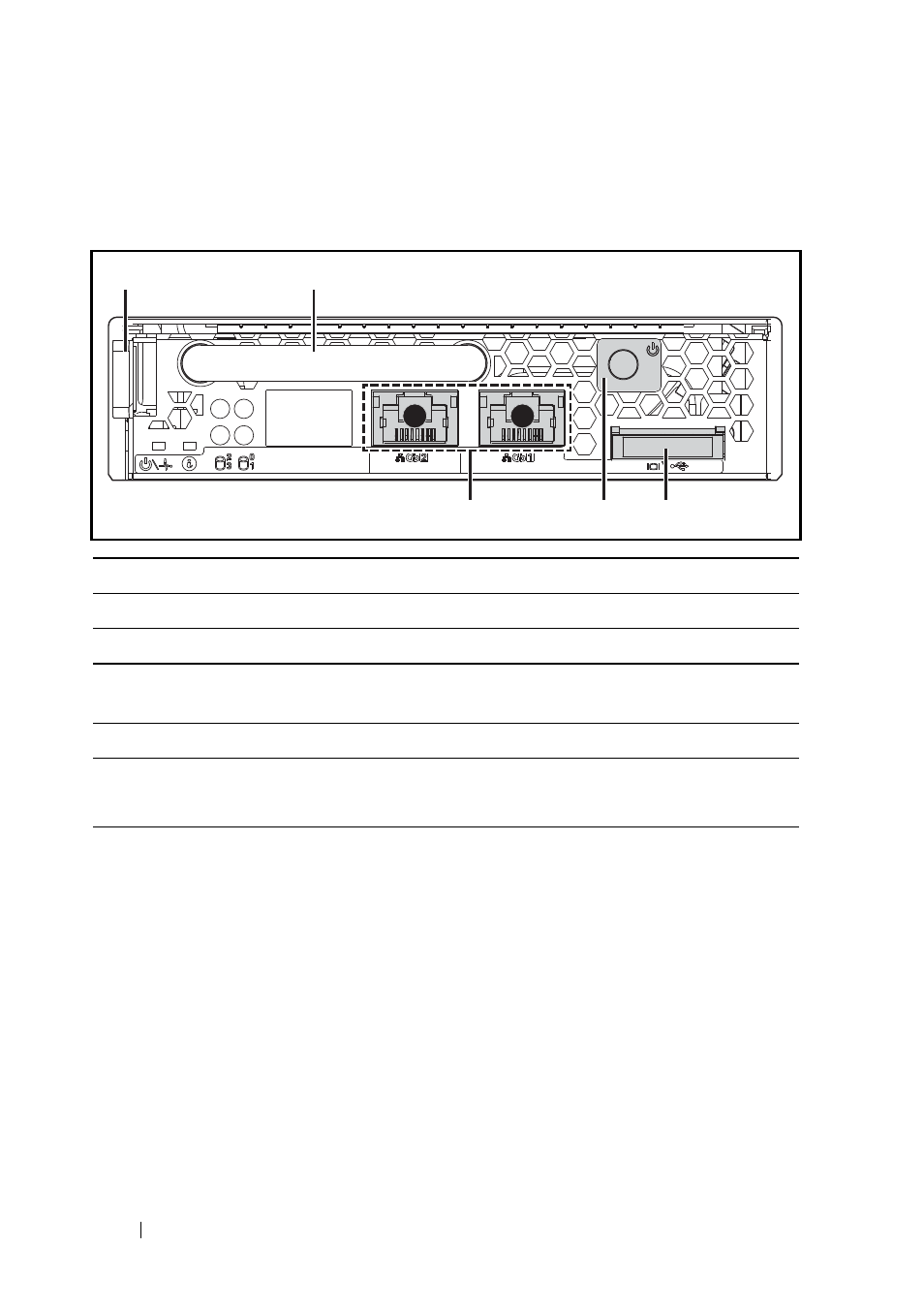

Figure 1-1. Sled Front Features (Rotated Counter-clockwise 90°)
Sled Population Rules
NOTE: The Dell PowerEdge C5000 is a blade enclosure supporting a Dell PowerEdge sled
system.
The following sled Stock Keeping Unit (SKU) is available for the PowerEdge
C5000 enclosure:
• A twelve sled SKU
For further information, see "Sled Configuration" on page 49.
Item Feature Description
1 Latch Press to release sled from chassis.
2 Handle Hold to pull sled out of chassis.
3 VGA/USB connector Custom port with custom cable
(USB [2] and video)
4 Power button ON/OFF button for sled
5 NIC LAN ports 10/100/1G NIC LAN connector 1
10/100/1G NIC LAN connector 2
