78 Installing System Components
4 Guide the PSU1 and the PSU2 power cables through the opening in the
middle wall on the chassis. See Figure 3-27.
5 Remove the three screws from the Power Distribution Board (PDB)
bracket. See Figure 3-27.
6 Lift the PDB assembly clear from the chassis.

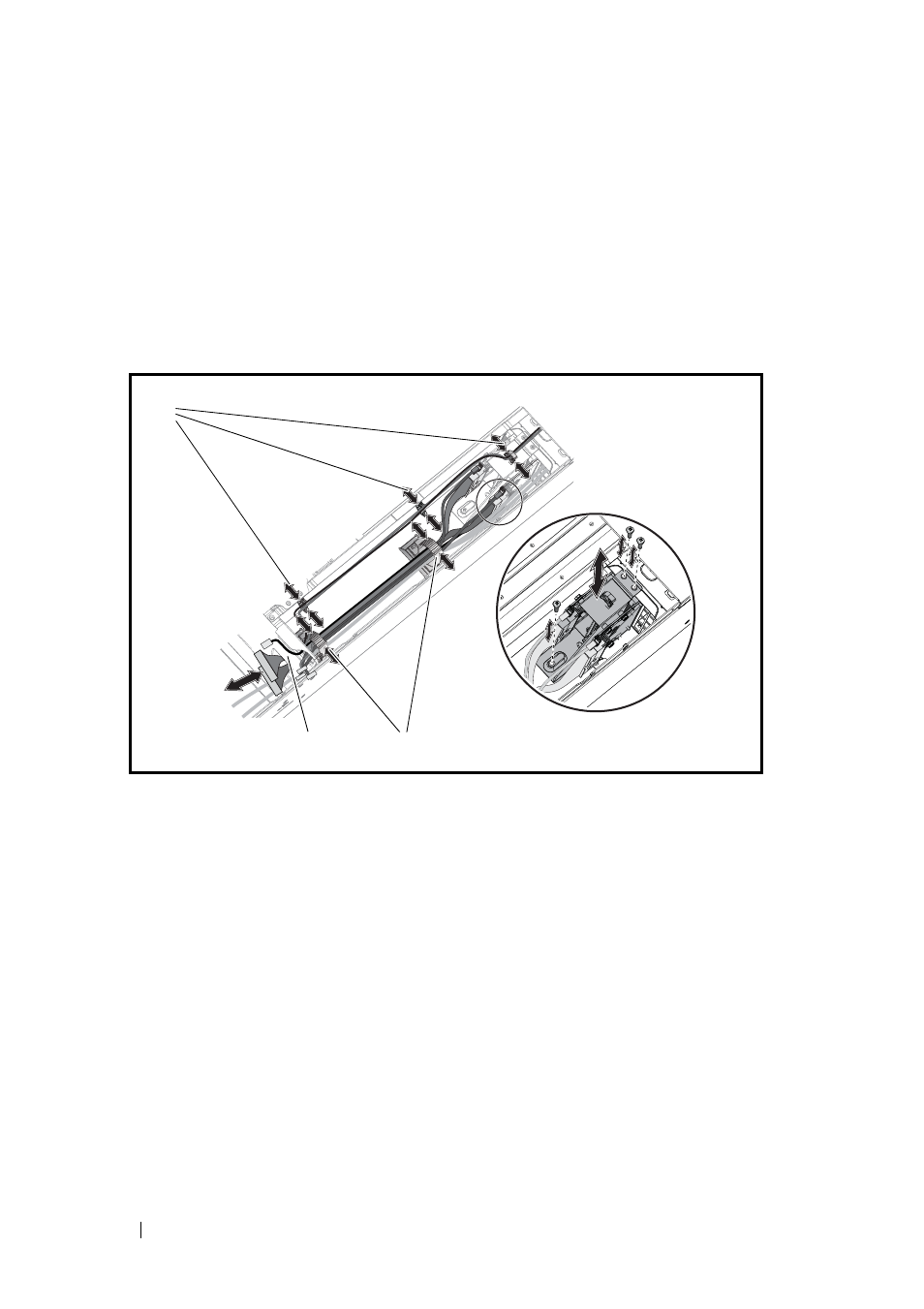

Figure 3-27. Removing and Installing the Cables and PDB Bracket
7 Disconnect the PSU power cable from the PDB connector. See
Figure 3-28.
8 Disconnect the PMBus cable from the PDB connector. See Figure 3-28.
9 Remove the four screws from the PDB. See Figure 3-28.
10 Remove PDB from the PDB bracket.
1 LAN and sideband cable clips 2 middle wall opening
3 power and PMBus cable clips
1
2 3
