56 Installing System Components
Removing 2.5" Hard-Drives
1 Remove the sled from the system. See "Removing a Sled" on page 50.
2 Remove the hard-drive bracket screws from underneath the sled. See Figure 3-6.

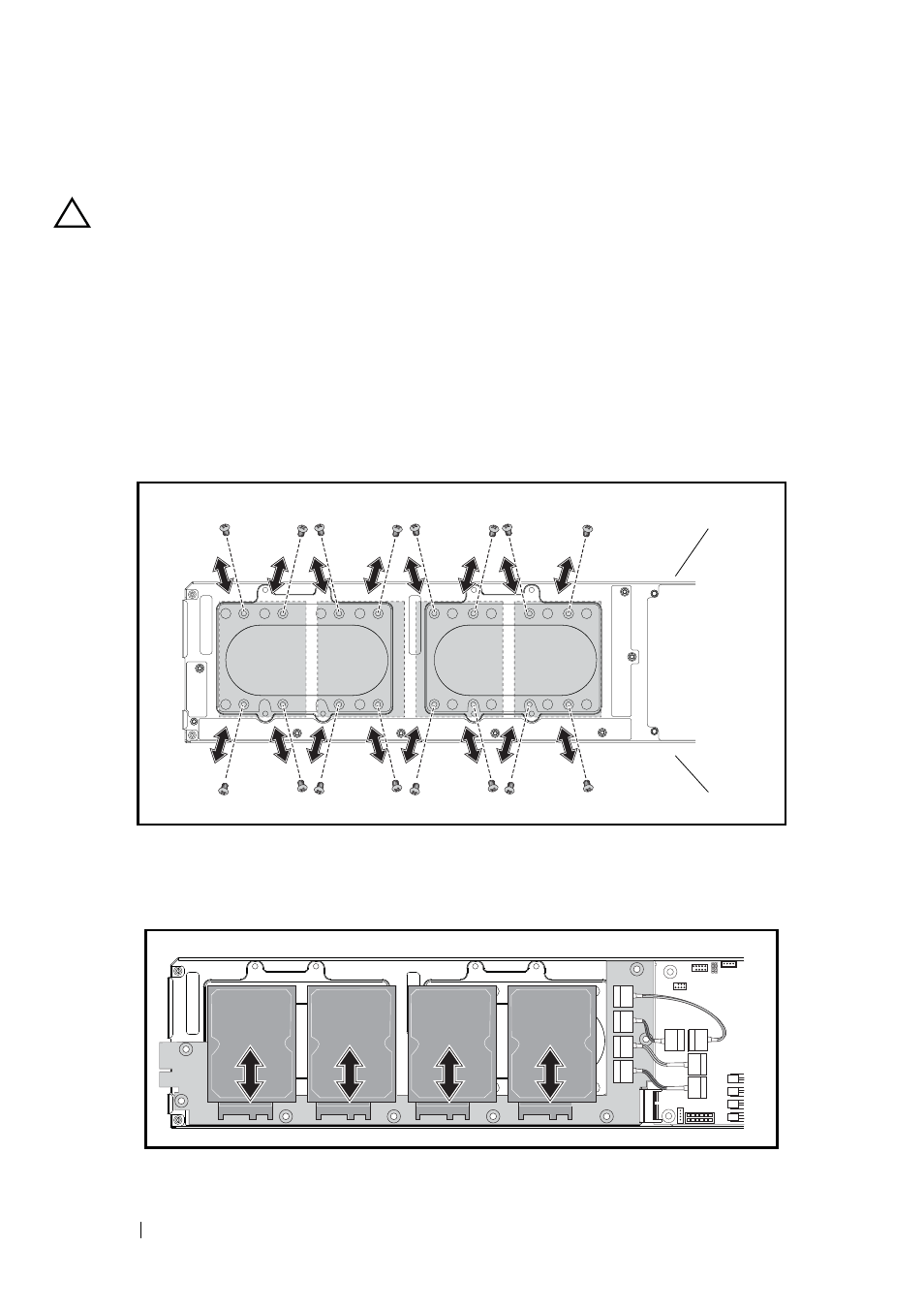

Figure 3-6. Removing and Installing the 2.5" HDD Bracket Screws
3 Remove the hard-drive from the sled docking bay. See Figure 3-7.
Figure 3-7. Removing and Installing the 2.5" Hard-Drives From the Docking Bay
CAUTION: Many repairs may only be done by a certified service technician. You
should only perform troubleshooting and simple repairs as authorized in your
product documentation, or as directed by the online or telephone service and
support team. Damage due to servicing that is not authorized is not covered by
warranty. Read and follow the safety instructions that came with the product.
Bottom of sled
Top of sled
HDD3 HDD2 HDD1 HDD0
2.5”HDD 2.5”HDD 2.5”HDD 2.5”HDD
