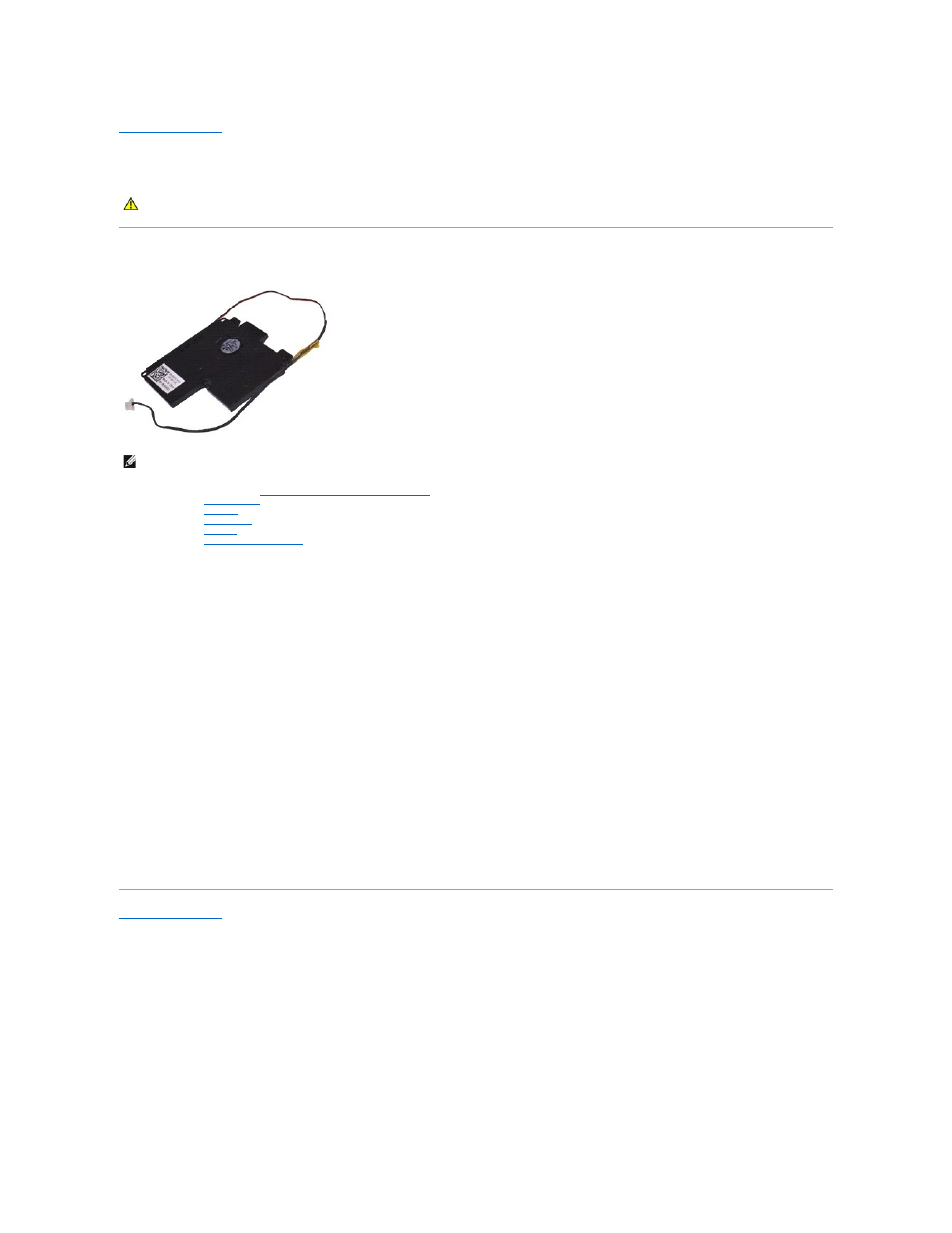

Speaker
Dell™ Latitude™ 13 Service Manual
Removing the Speaker
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the ExpressCard , if applicable.
3. Remove the SD card , if applicable.
4. Remove the base cover .
5. Remove the battery .
6. Remove the display closure sensor .
7. Disconnect the touch-pad cable from its connector on the system board.
8. Remove the tape to release the speaker cable from its routing guide in the computer.
9. Disconnect the speaker cable from the audio board and remove it from its routing guide in the computer.
10. Carefully pull up the flex cable and remove it from the speaker.
11. Remove the screws that secure the speaker to the computer.
12. Lift the speaker up and away from the computer.
Replacing the Speaker
To replace the speaker, perform the above steps in reverse order.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe® Flash® Player from Adobe.com in order to view the illustrations below.
