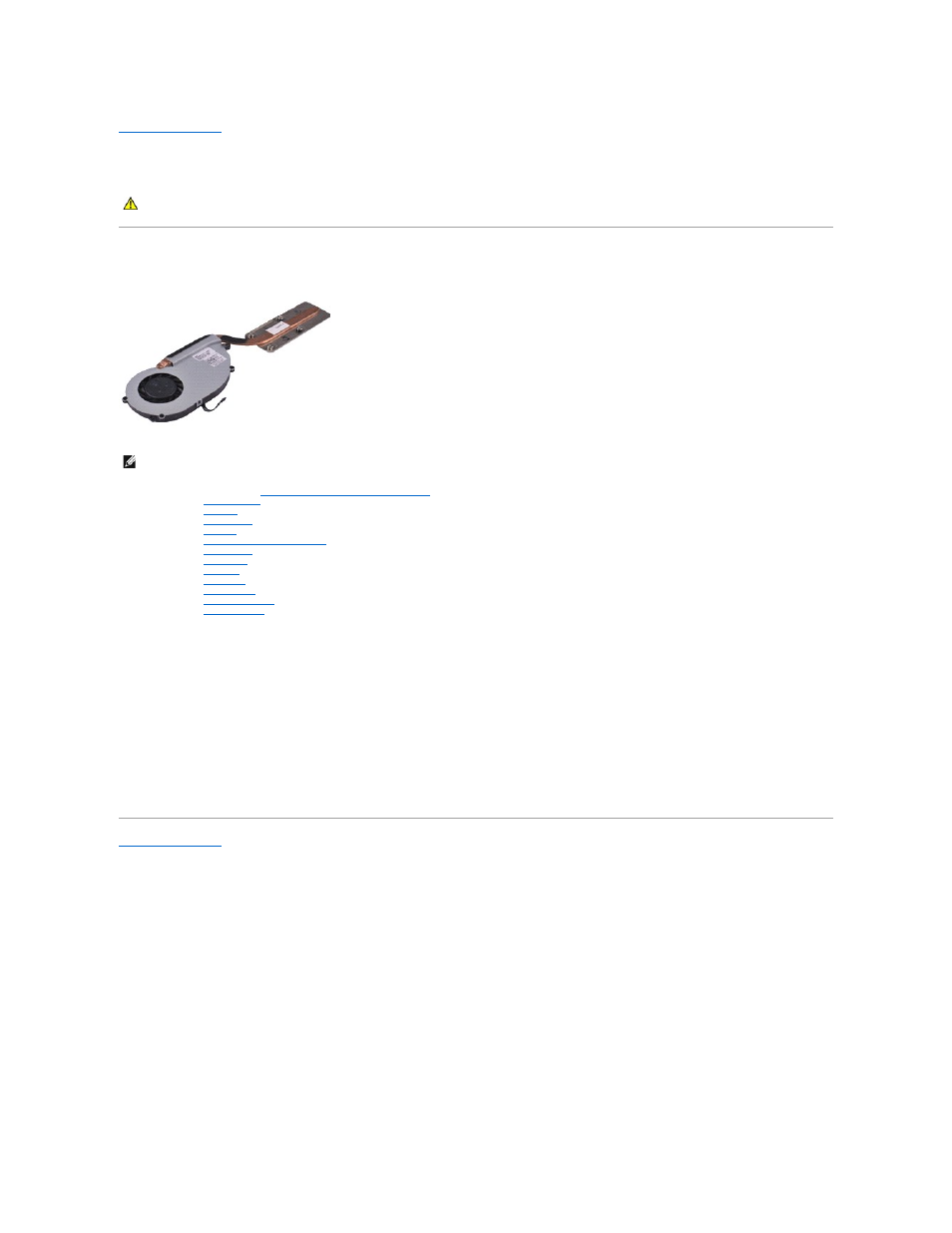

Heat Sink and Fan Assembly
Dell™ Latitude™ 13 Service Manual
Removing the Heat Sink and Fan Assembly
1. Follow the procedures in Before Working Inside Your Computer .
2. Remove the ExpressCard , if applicable.
3. Remove the SD card , if applicable.
4. Remove the base cover .
5. Remove the battery .
6. Remove the hard drive and audio board .
7. Remove the WLAN card .
8. Remove the LED cover .
9. Remove the memory .
10. Remove the keyboard .
11. Remove the card reader .
12. Remove the coin-cell battery .
13. Remove the system board .
14. Disconnect the fan cable from the system board.
15. Remove the screws that secure the heat sink and fan assembly to the system board.
16. Lift the heat sink and fan assembly up and away from the system board.
Replacing the Heat Sink and Fan Assembly
To replace the heat sink and fan assembly, perform the above steps in reverse order.
Back to Contents Page
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE: You may need to install Adobe® Flash® Player from Adobe.com in order to view the illustrations below.
