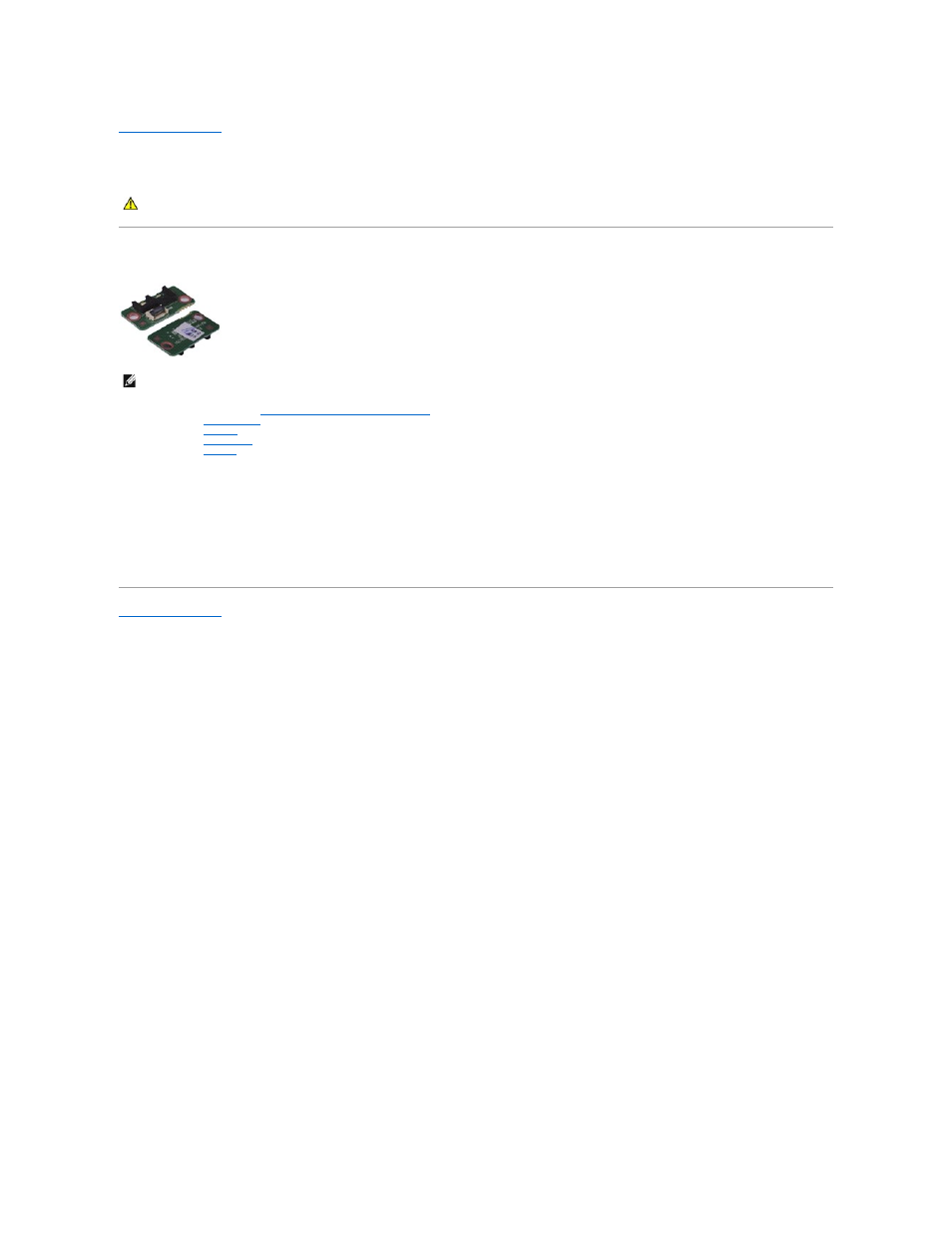

Display Closure Sensor
Dell™ Latitude™ 13 Service Manual
Removing the Display Closure Sensor
1.
Follow the procedures in
Before Working Inside Your Computer
.
2.
Remove the
ExpressCard
, if applicable.
3.
Remove the
SD card
, if applicable.
4.
Remove the
base cover
.
5.
Remove the
battery
.
6.
Remove the screw that secures the display closure board to the computer.
7.
Carefully slide the white latch to disconnect the flex cable that connects the display closure sensor to the computer.
8.
Remove the display closure sensor from the computer.
Replacing the Display Closure Sensor
To replace the display closure sensor, perform the above steps in reverse order.
Back to Contents Page
WARNING:
Before working inside your computer, read the safety information that shipped with your computer. For additional safety best
practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.
NOTE:
You may need to install Adobe® Flash® Player from Adobe.com in order to view the illustrations below.
