Step 3: After adding the rubber bumper, re-assemble the cable.

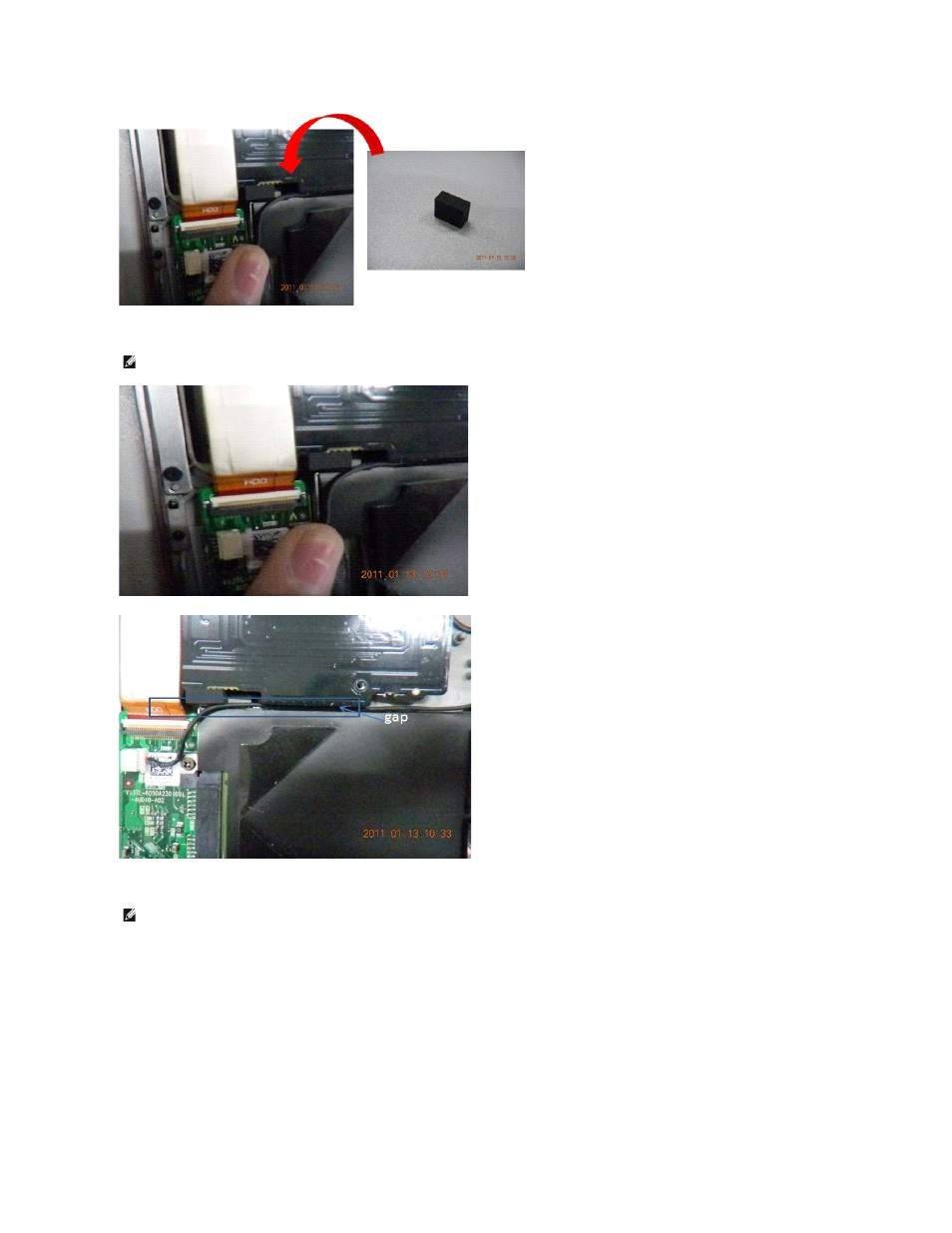

Step 4: Fix the cable and rubber as indicated in the diagrams below.

NOTE:

 Cable should be pressed back to the gap between board and HDD

NOTE:

The tape used here is for fixing black cable 100%.
