Page 58

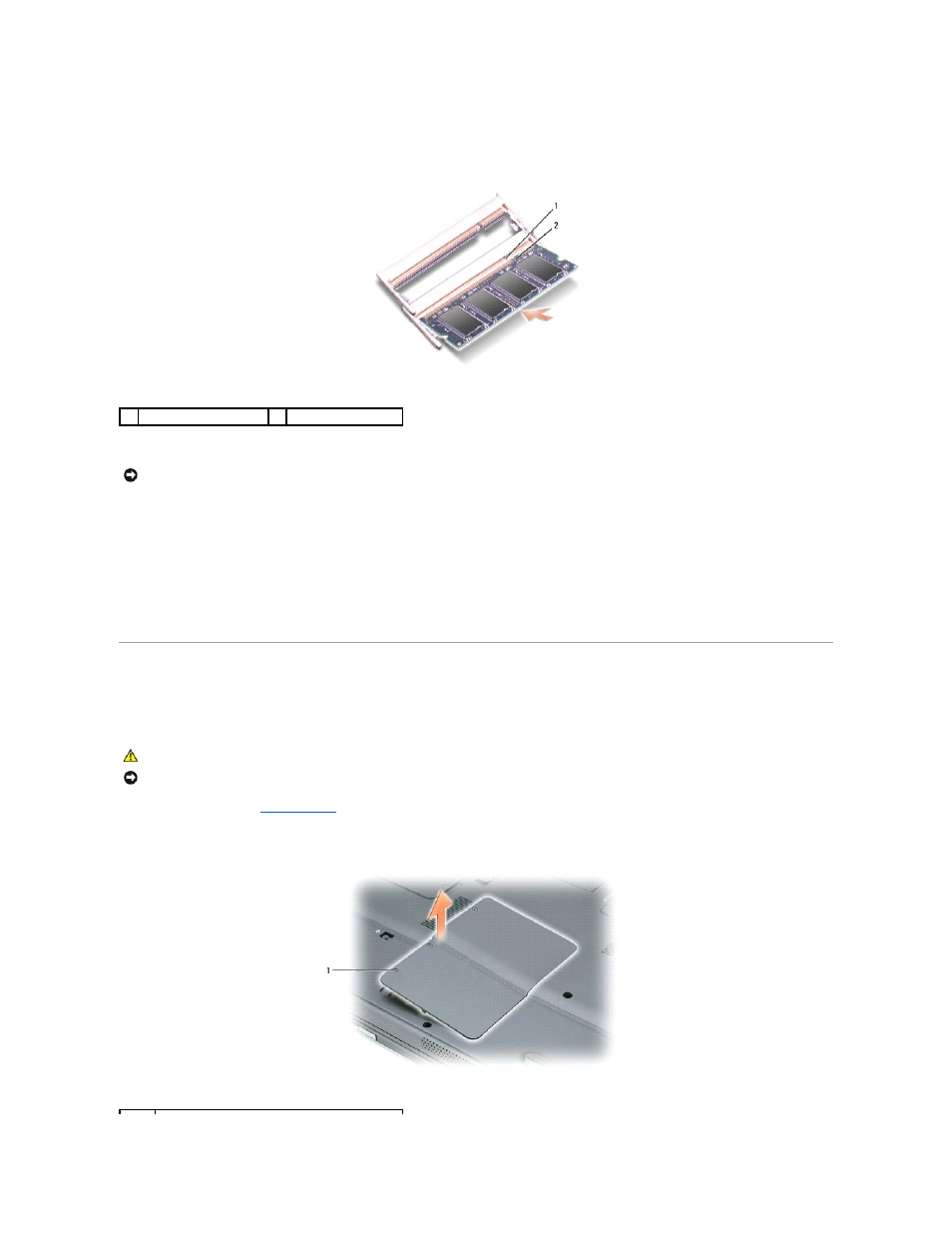

a.
Align the notch in the module edge connector with the tab in the connector slot.
b.
Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place. If you do not feel the click, remove
the module and reinstall it.
6.
Replace the memory module/Mini PCI cover and tighten the screws.
7.
Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical outlet.
8.
Turn on the computer.
As the computer boots, it detects the additional memory and automatically updates the system configuration information.
To confirm the amount of memory installed in the computer, click the Start button, click Help and Support, and then click Computer Information.
Wireless Mini PCI Card
If you ordered a Mini PCI card with your computer, the card is already installed.
1.
.
2.
Turn the computer over, loosen the captive screws on the memory module/Mini PCI cover, and then remove the cover.
1
memory slot notch
2
memory slot tab
NOTICE:
If the cover is difficult to close, remove the module and reinstall it. Forcing the cover to close may damage your computer.
CAUTION:
Before you begin any of the procedures in this section, follow the safety instructions in the Product Information Guide.
NOTICE:
To avoid damaging the system board, you must remove the main battery before you begin working inside the computer.
