Installing System Components
79

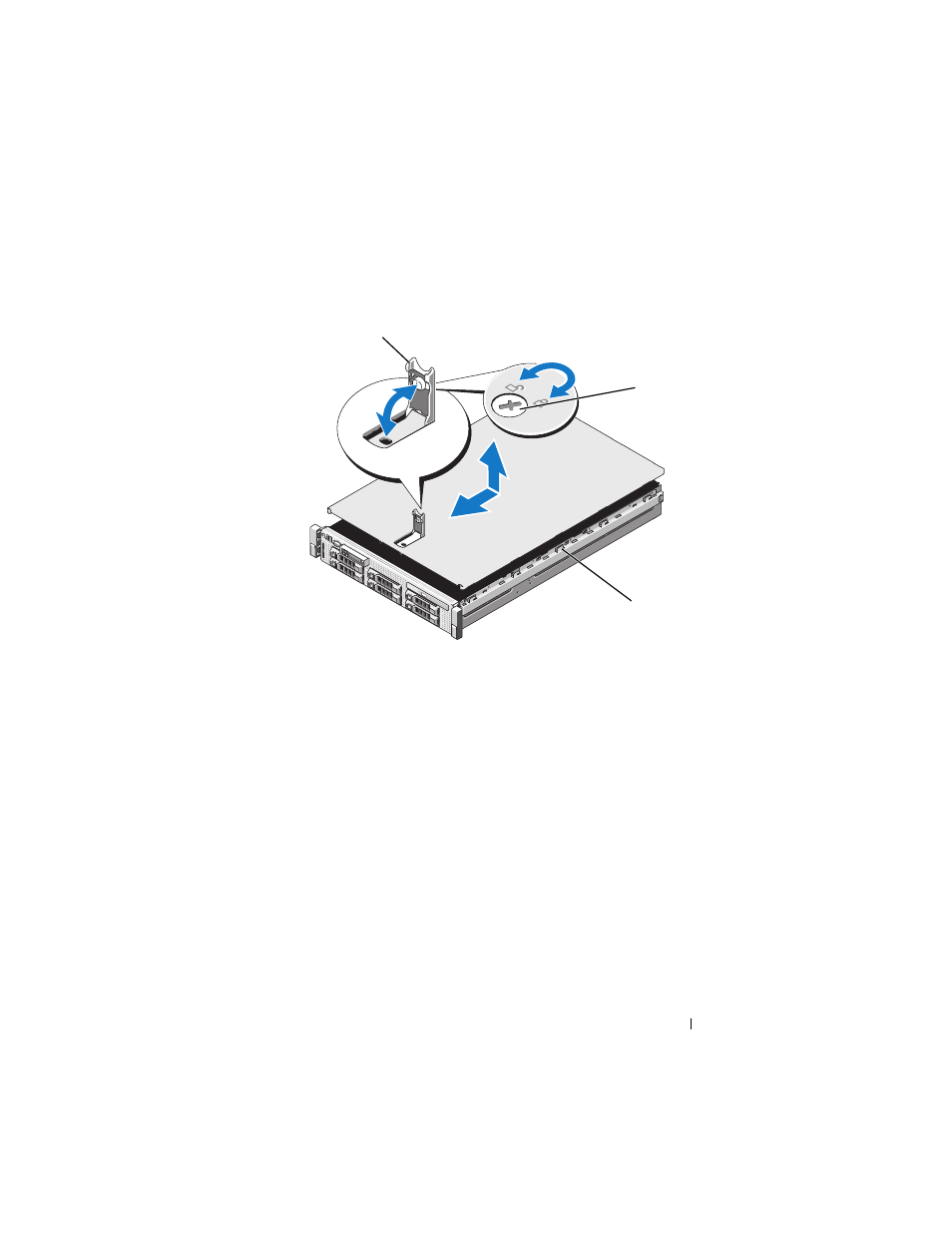

Figure 3-3. Removing or Installing the Cover
Information Tag
Removing the Information Tag
1 Pull the information tag out of its slot in the chassis, until it is in the lock
position.
2 To release the top portion of the tag, pull down on the tag until it
disengages from the slot in the chassis.
3 To release the lower portion of the tag, pull up on the tag until it
disengages from the slot in the chassis.
1 latch 2 latch release lock
3 chassis hooks
1
3
2
