Front Bezel
Dell Precision™ R5400 Service Manual
Removing the Front Bezel
Replacing the Front Bezel
A lock on the front bezel restricts access to the power button, optical drive, two front-panel USB connectors, and the hard drive(s). An array of lights located
on the front panel and accessible through the front bezel displays the computer's status.
The computer ships with the bezel unattached, and so it must be attached during initial setup of the computer.
Removing the Front Bezel
1. Using the bezel key, unlock the front bezel.
2. Press the tab at the left end of the bezel.
3. Rotate the left end of the bezel away from the computer to release the right end of the bezel.
4. Pull the bezel away from the computer.
Replacing the Front Bezel
To replace the front bezel, perform the above steps in reverse.
Back to Contents Page
CAUTION: Only trained service technicians are authorized to remove the computer cover and access any of the components inside the computer.
Before working inside the computer, read the safety information that shipped with the computer. For additional safety best practices information,
see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

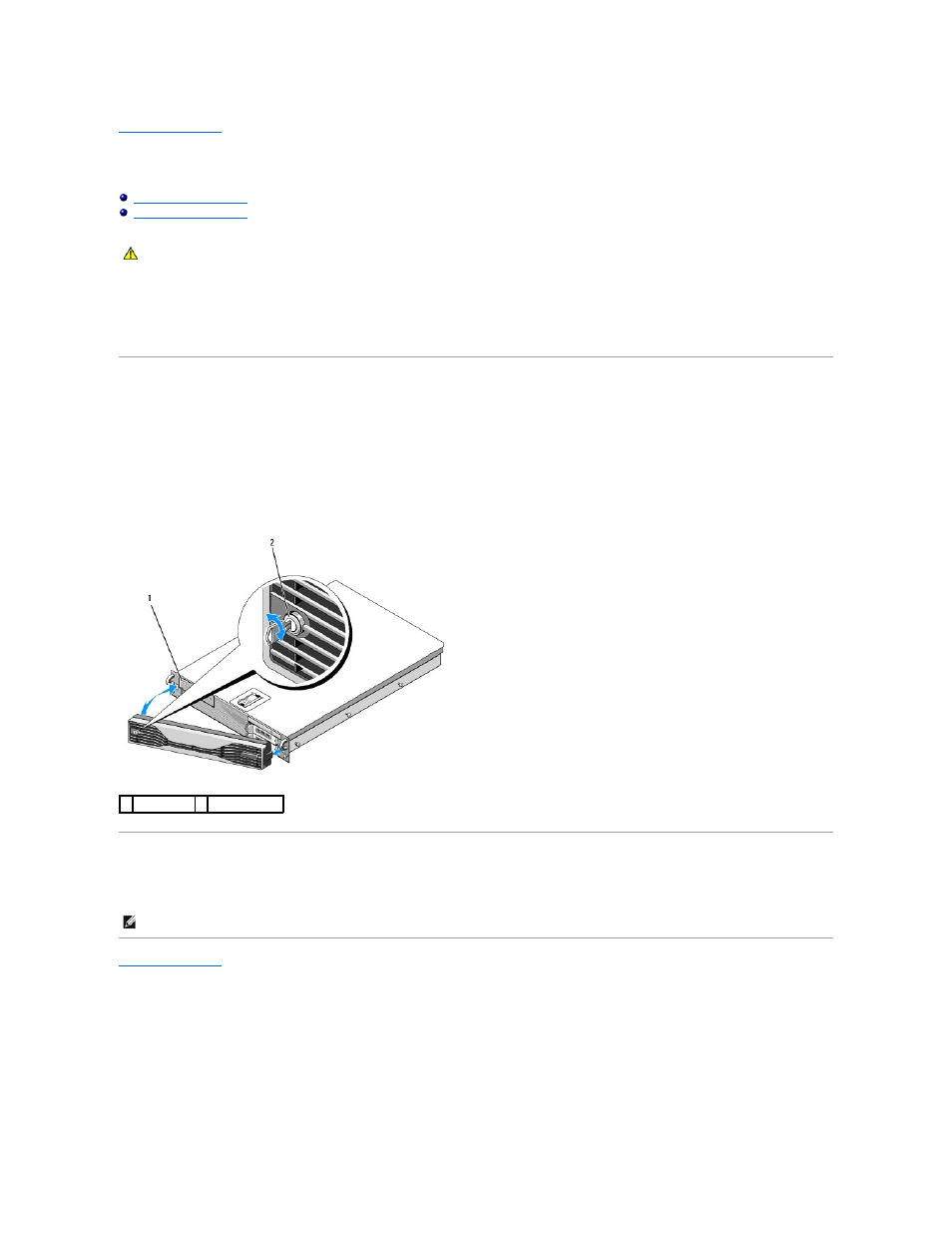

1 status lights 2 front bezel lock
NOTE: If you are installing a new replacement bezel, the bezel keys can be found clipped inside the bezel where they were stored during shipment.
