Adding and Replacing Parts
www
.dell.com | support.dell.com

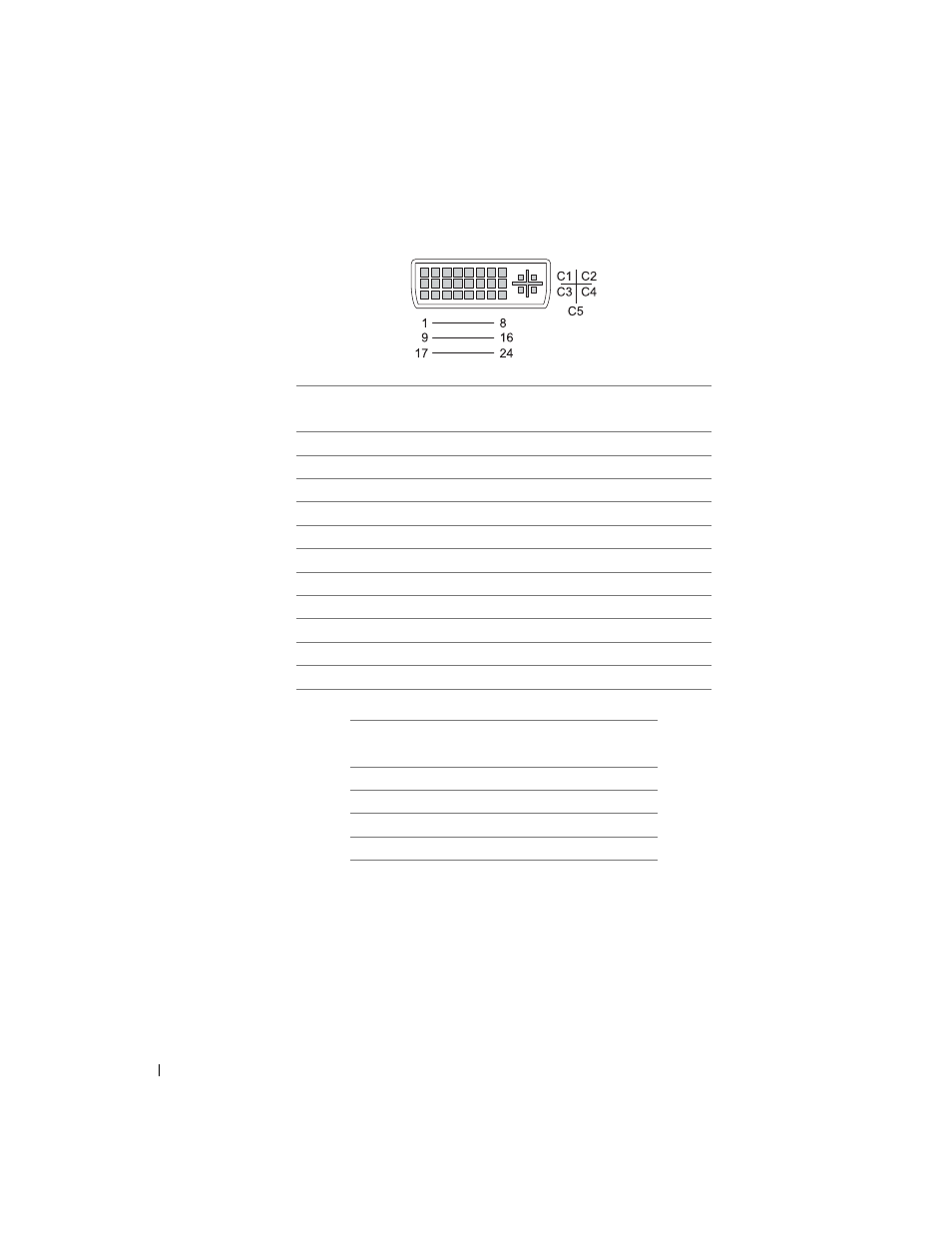

DVI-I Connector
Pin Signal Pin Signal
1 TMDS DATA2– 13 TMDS DATA3+
2 TMDS DATA2+ 14 +5V
3 TMDS DATA2/4 SHLD 15 GND (FOR +5V)
4 TMDS DATA4– 16 HOT PLUG DETECT
5 TMDS DATA4+ 17 TMDS DATA0–
6 DDC CLK 18 TMDS DATA0+
7 DDC DATA 19 TMDS DATA0/5 SHLD
8 ANALOG VERT SYNC 20 TMDS DATA5–
9 TMDS DATA1– 21 TMDS DATA5+
10 TMDS DATA1+ 22 TMDS CLK SHLD
11 TMDS DATA1/3 SHLD 23 TMDS CLK+
12 TMDS DATA3– 24 TMDS CLK–
Pin Signal
C1 ANALOG RED VID OUT
C2 ANALOG GRN VID OUT
C3 ANALOG BLU VID OUT
C4 ANALOG HOR SYNC
C5 ANALOG COM GND RET
