Dell Inspiron XPS User Manual
Page 122
122
Adding and Replacing Parts
www
.dell.com | support.dell.com
2
Remove the left and right hinge covers:
a
Open the display.
NOTICE:
To avoid damaging the cover, do not lift the center hinge cover on both sides simultaneously.
b
Slide the left and right hinge covers toward the back of the computer and then slide them
to the side, away from the computer.
3
Remove the center hinge cover:
a
Close the display.
b
Facing the front of the computer, press in on the two hinge cover snaps and pull them up
slightly to disengage them.

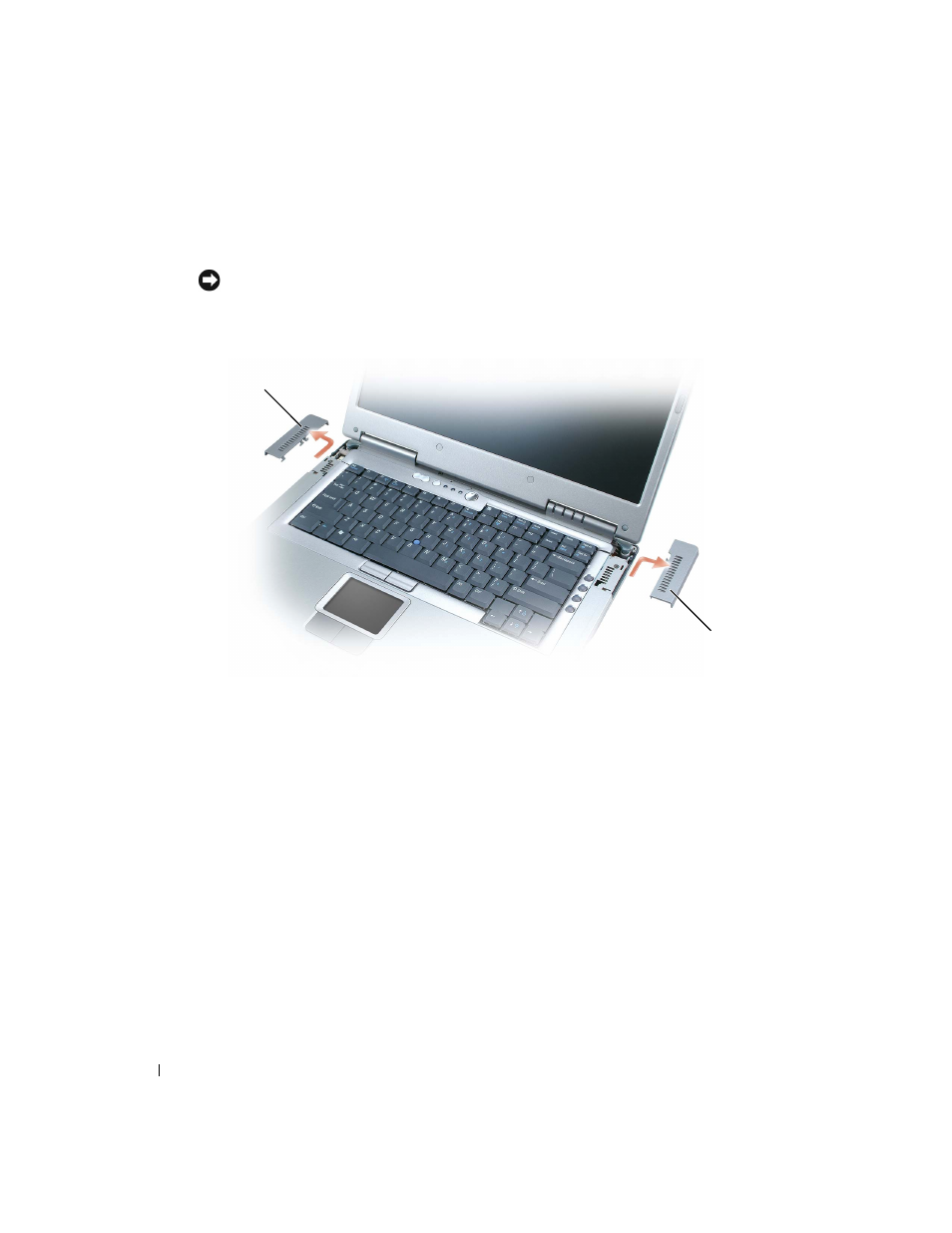

left hinge
cover
right hinge
cover
