Speakers
CAUTION:
Before you begin this procedure, read the safety instructions at the front of this document
(see page 11).
NOTICE:
To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by
periodically touching a connector on the back panel of the computer.
1 Follow the procedures in "Before You Begin" (see page 103).
2 Remove the center hinge cover (see page 121).
3 Remove the keyboard (see page 114).
4 Remove the display (see page 124).
5 Remove the palm rest (see page 130).
6 Remove the keyboard bracket (see page 118).
NOTICE:
Handle the speakers with care to avoid damaging them.
7 Remove the three M2.5 x 5-mm screws from the speakers.
8 Lift up the speakers.
9 Disconnect the speaker connector from the system board connector.

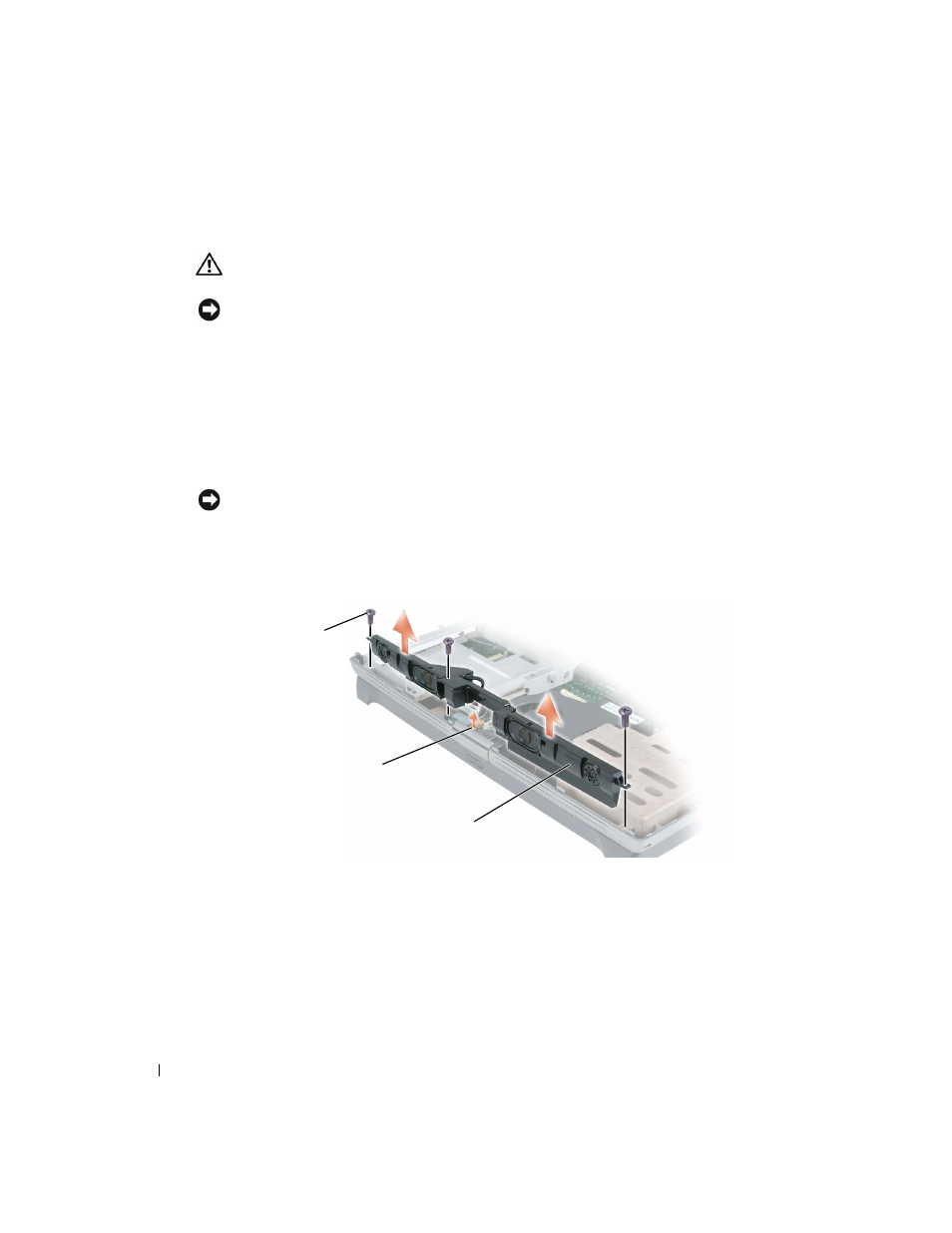

speakers
system board
connector
M2.5 x 5-mm
screws (3)
