70
Installing System Components

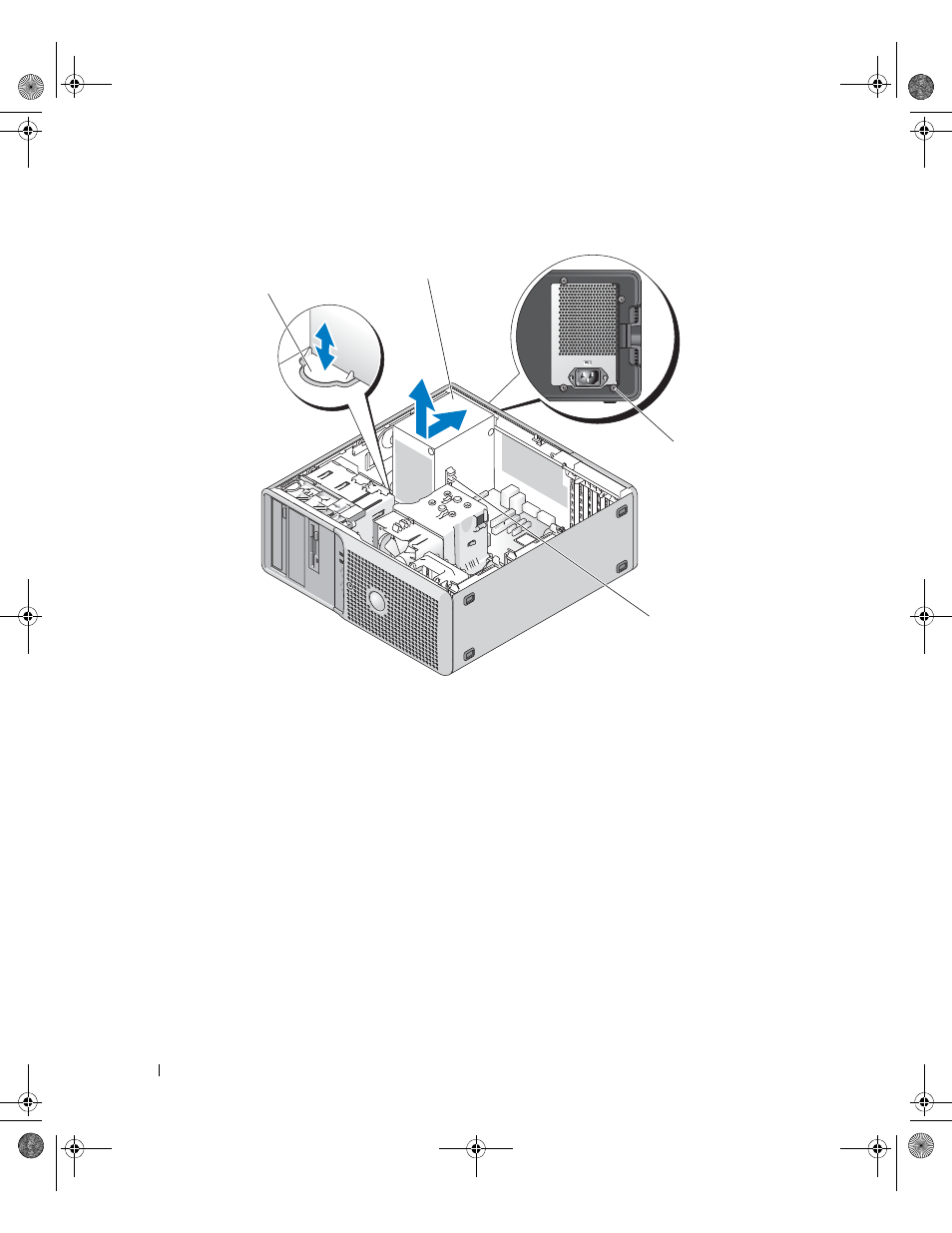

Figure 3-19. Removing the Power Supply
Installing the Power Supply
1 Attach the cable clamp to the new power supply.
2 Align the power supply mounting holes with the mounting holes on the back panel.
3 Slide the power supply toward the back panel until it snaps into place over the power-supply release
tab.
4 Using a #2 Phillips screwdriver, install the four Phillips screws that secure the power supply to the back
panel.
5 Reattach the IDE, I/O panel, and SATA cables (if present) to the routing clamp on the side of the
power supply. Reroute the SATA power cables along the bottom of the chassis. These cables must lie
under the heat sink and shroud when the system is assembled.
6 Clean off the bottom of the heat sink and apply new thermal grease.
1 power supply release tab 2 power supply 3 screws (4)
4 cable clamp
3
1
2
4
