Installing System Components
3 Disconnect the fan’s power cable from the system board by depressing the locking tab. See Figure 3-17.
4 If you are removing the smaller card cage fan (see Figure 3-17):
a Pull up on the single release tab that attaches the fan to the chassis.
b Slide the fan toward the back panel and lift the fan out.
5 If you are removing the larger processor cooling fan (see Figure 3-17):
a Remove the heat sink and shroud assembly. See "Removing the Processor" on page 62. Do not
remove the processor, however.
b Press the release tab that attaches the processor cooling fan to the chassis.
c Slide the fan toward the back panel and lift the fan out.

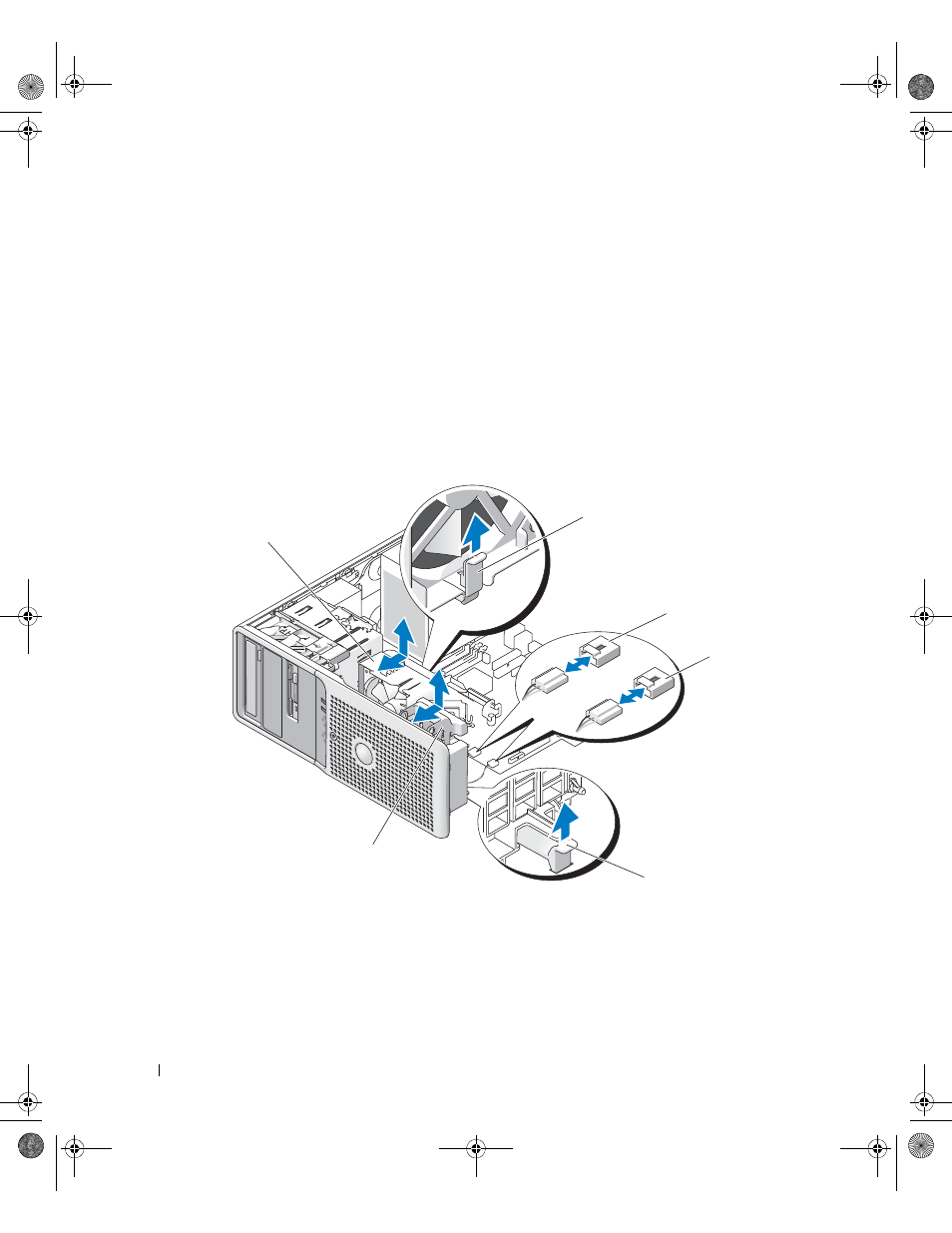

Figure 3-17. Removing and Installing the Cooling Fans
1 processor cooling fan 2 release tab for processor fan 3 connector for processor fan
(CPU_CAGE)
4 connector for card cage fan
(FAN_CARD_CAGE) 5 release tab for card cage fan 6 card cage fan
