36
Two-Post Rack Installation
Installing Chassis Static Rail Modules
NOTE:
You do not need to remove the optional front bezel to install or remove the chassis static rail modules
from the chassis.
1 To install a rail module, locate the three keyhole slots on the rail module and the corresponding
shoulder screws on the side of the system (see Figure 2-7).
2 Place the rail module against the side of the system so that the shoulder screws fit through the round
portion of the keyhole slots, then slide the module towards the back of the system.
3 Repeat steps 1 and 2 to install the other rail module.
To remove a rail module from the chassis, pull up on the release latch, then slide the rail forward and
remove the rail module from the chassis.

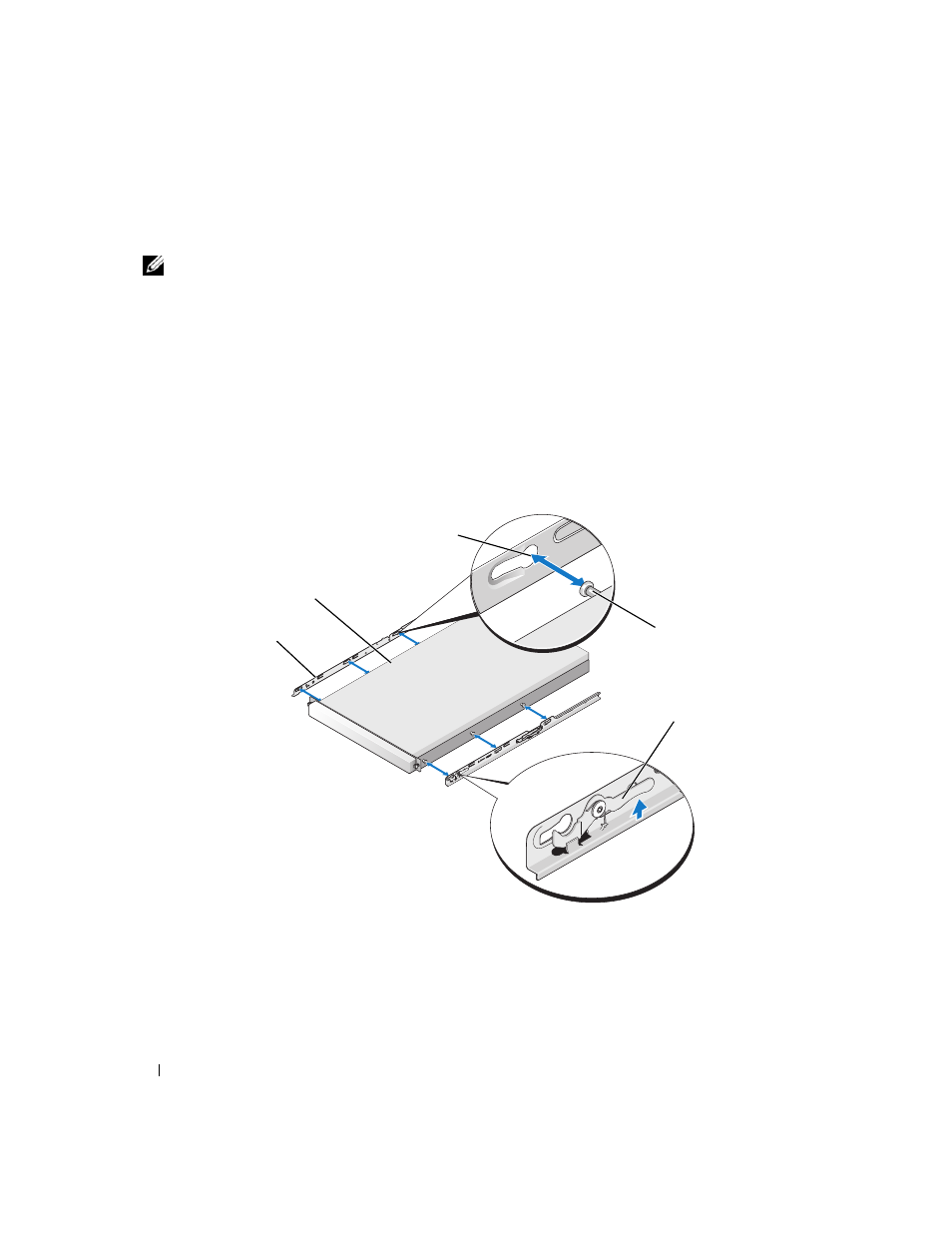

Figure 2-7. Installing and Removing Static Rail Chassis Modules
1 keyhole slots (6) 2 shoulder screws (6) 3 release latch
4 rail modules (2) 5 system
4
2
3
1
5
