Touch screen programming the CombiView™, type DFON

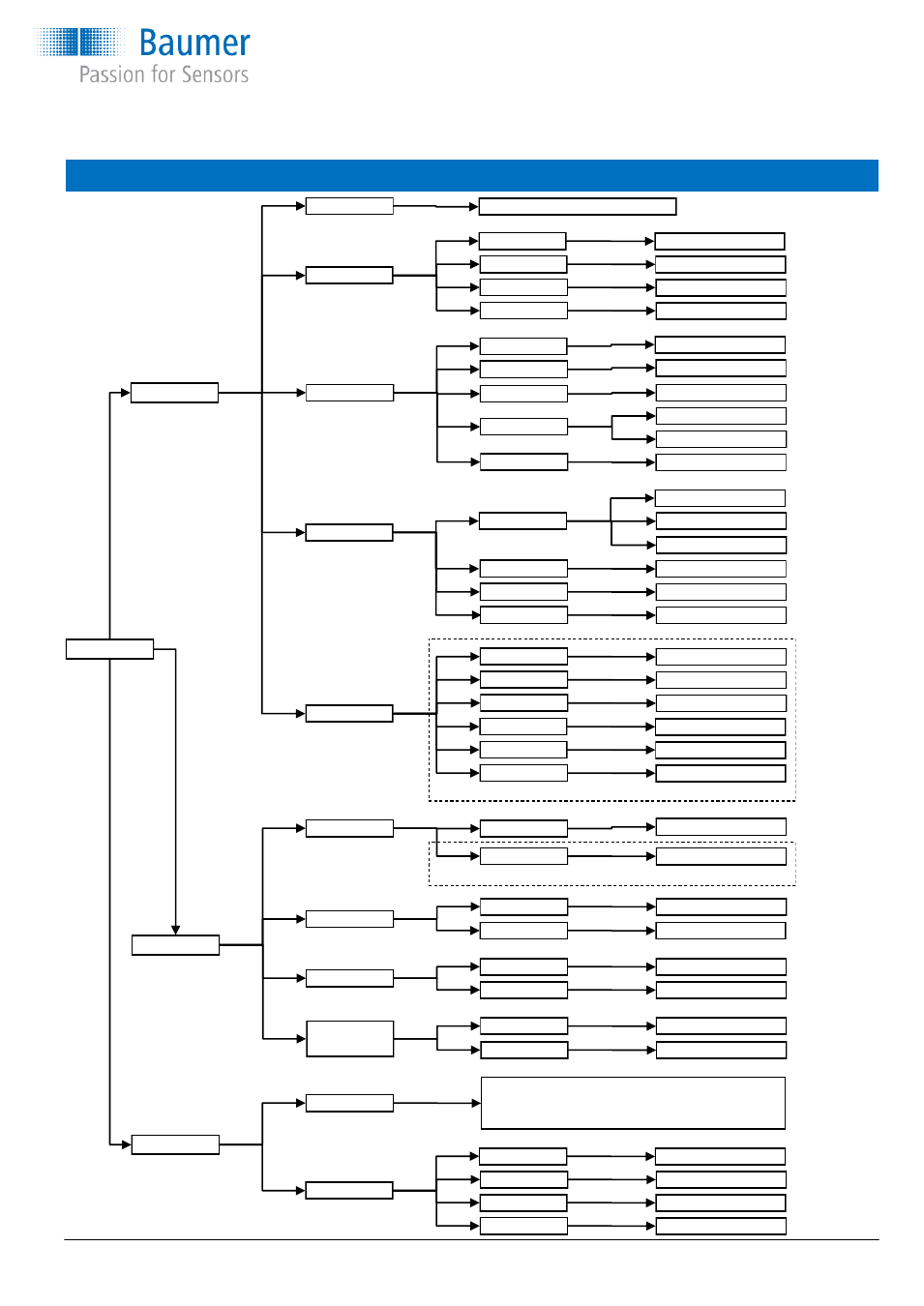

Display menu
Configuration
Display setup
Diagnostics
Identification
Input
Display output
Error/warning
Relay setup
TAG No. / Serial No. / Date / Prod. date
Input 100% Current at 100% (20 mA)
Input 0%
Damping
Linearization
Current at 0% (4 mA)
0 = off / 1...30 sec.
Enable / Disable
Display 100%
Display 0%
Decimals
Units
Rel. / Abs.
Display value at 100%
Display value at 0%
Number of digits point
Select from list
Select, when pressure
Select CUSTOM / create
High error
High error limit
High warning
Low error
Low warning
See High error
See High error
See High error
High error indication
High error back light
Relay 1 mode
Rel. 1 set point
Rel. 1 reset point
AO / AC / NO / NC
Point at relay ON
Point at relay OFF
Relay 1 mode
Rel. 1 set point
Rel. 1 reset point
AO / AC / NO / NC
Point at relay ON
Point at relay OFF
Screen layout
This menu section is only available when the relays are activated
Back light
Password
Attached
Statistics
Standard screen Select display design
Specific screen Select display design
Colour Point at relay OFF
Intensity Point at relay OFF
Password enable Enable / Disable
New password Create new password
Attached instr. Display name of A.I.
Att. Instr. menu Instr. Specific menu
Min. / Max. value
High / Low errors
This menu section is only available when synchronized via UnitCom
Demo setup
Demo mode Disabled / Static / Cyclic
Static value
Factory setting
Service menu
Insert value
Load factory setting
For service personnel
Operators instructions
CombiPress™, type PFMx
