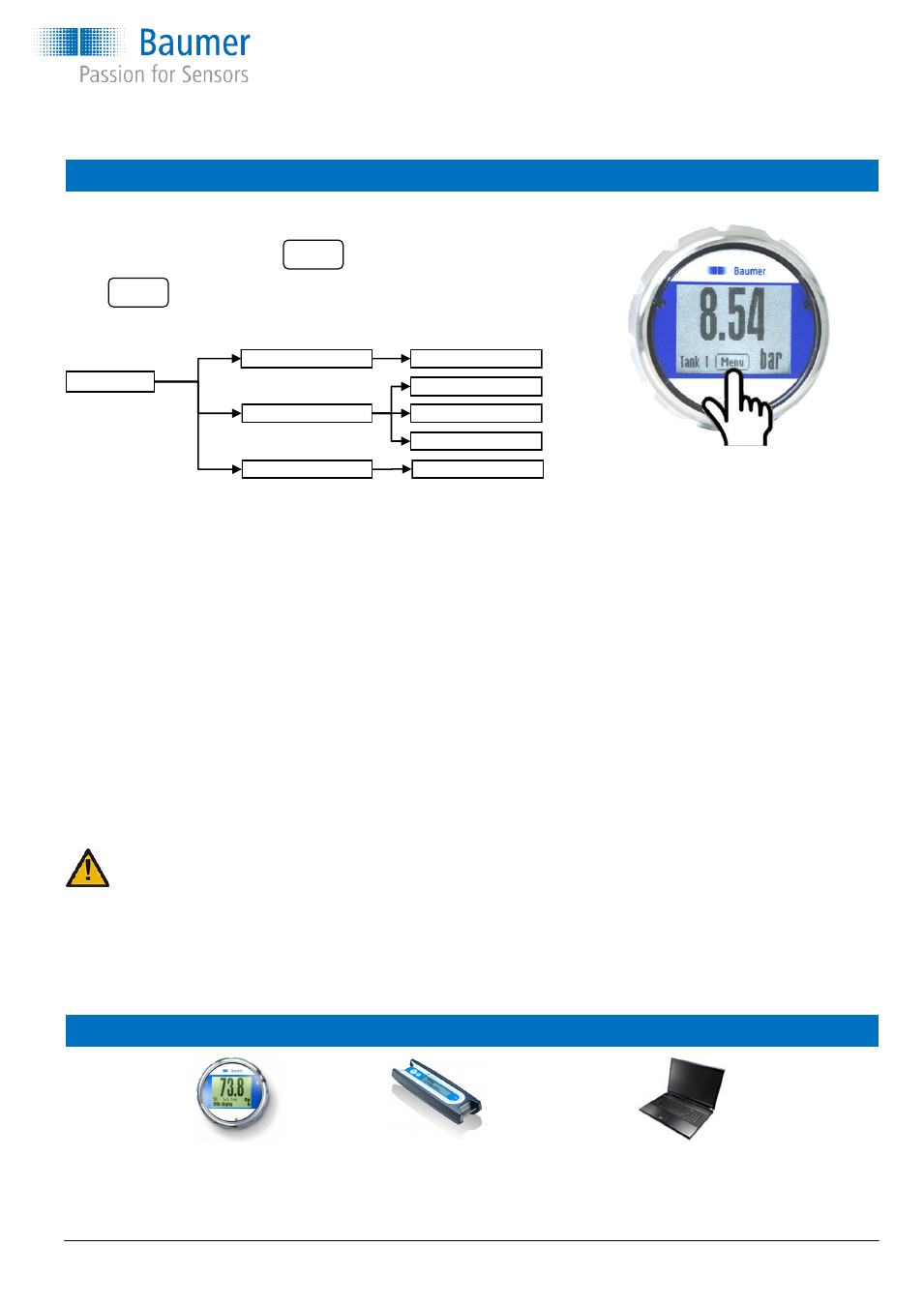

Touch screen programming the CombiView™, type DFON
Programming CombiView™, type DFON using the touch screen on the display
Tap on the display screen and the button will appear in the bottom.
Press
and the display will start with the below menu.
With a transmitter communicating with the DFON via UnitCom ribbon cable
Instrument name menu
Enabling to the user to programme the connected transmitter through the DFON display. All data programmed into the
transmitter will automatically be uploaded in the display.
Display menu
Enabling to the user to programme the DFON display only. This is necessary for programming the ColourView and relays
in the display and also if a level measurement is wanted e.g. a volume or weight acc. to the pressure.
Data display mode
Enabling to the user to programme the connected transmitter and the programmed values will also be valid for the DFON
display. (Ignoring whatever setup already set on the display)
Only programming of background colours and relays must be done under “Display menu” / “Configuration”.
In this mode the display will communicate directly with the transmitter digitally, which is more accurate than using
the 4…20 mA communication.
For programming configuration please see page ?
For programming Display setup and Diagnostics please see page ?
MENU
MENU
Display menu
Instrument name menu
Display setup
Data display mode
Instrument name menu
Instrument name menu
Instrument name menu
Instrument name menu
Instrument name menu
Operators instructions
CombiPress™, type PFMx
Guidance on programming of CombiPress™ PFMx with the DFON display using FlexProgram on your PC and the FlexProgram-
mer hardware tool will not be described here. A full manual for this is available on Baumer home page.
Please see or download the instruction from below internet address:
www.baumer.com → download → product documentation → assembly instructions/Operation instructions/Manuals → Programming the DFON
Programming the CombiPress™, type PFMx with the FlexProgram and FlexProgrammer
Programming the PFMx/DFON mounted on the application on site using either the touch screen or the FlexProgrammer .
If mounted with DFON the ribbon cable (UnitCom) must not be disconnected after installation and power up of the PFMx. If this
happens the transmitter cannot “see” the display. To enable the PFMx to “see” the DFON again, please disconnect the power
supply to the transmitter, reconnect the ribbon cable (UnitCom) and connect the power supply again.
Operators instructions: 11120948 PFMx Page 6 / 12
