S280-79-10

39

!

SAFETY

FOR LIFE

TB1

Y' VOLTAGE

120Vac

B' VOLTAGE

120Vac

CLOSING
VOLTAGE

NEUTRAL

SOURCE 2

NEUTRAL

SOURCE 1

AC

CUSTOMER

CONNECTIONS

NEUTRAL

SOURCE 2
POWER

OUTPUT

VOLTAGE

NEUTRAL

*NEUTRAL

POWER

SOURCE

OUTPUT

*BØ

AC

CUSTOMER

CONNECTIONS

SOURCE 1
POWER

*REQUIRED FOR
CONTROL OPERATION

1

2

3

4

5

6

7

8

9

10

11

12

13

14

240Vac CLOSING

OPTION

NEU

15

16

NEU (LV Closing Output)

HOT (LV Closing Output)

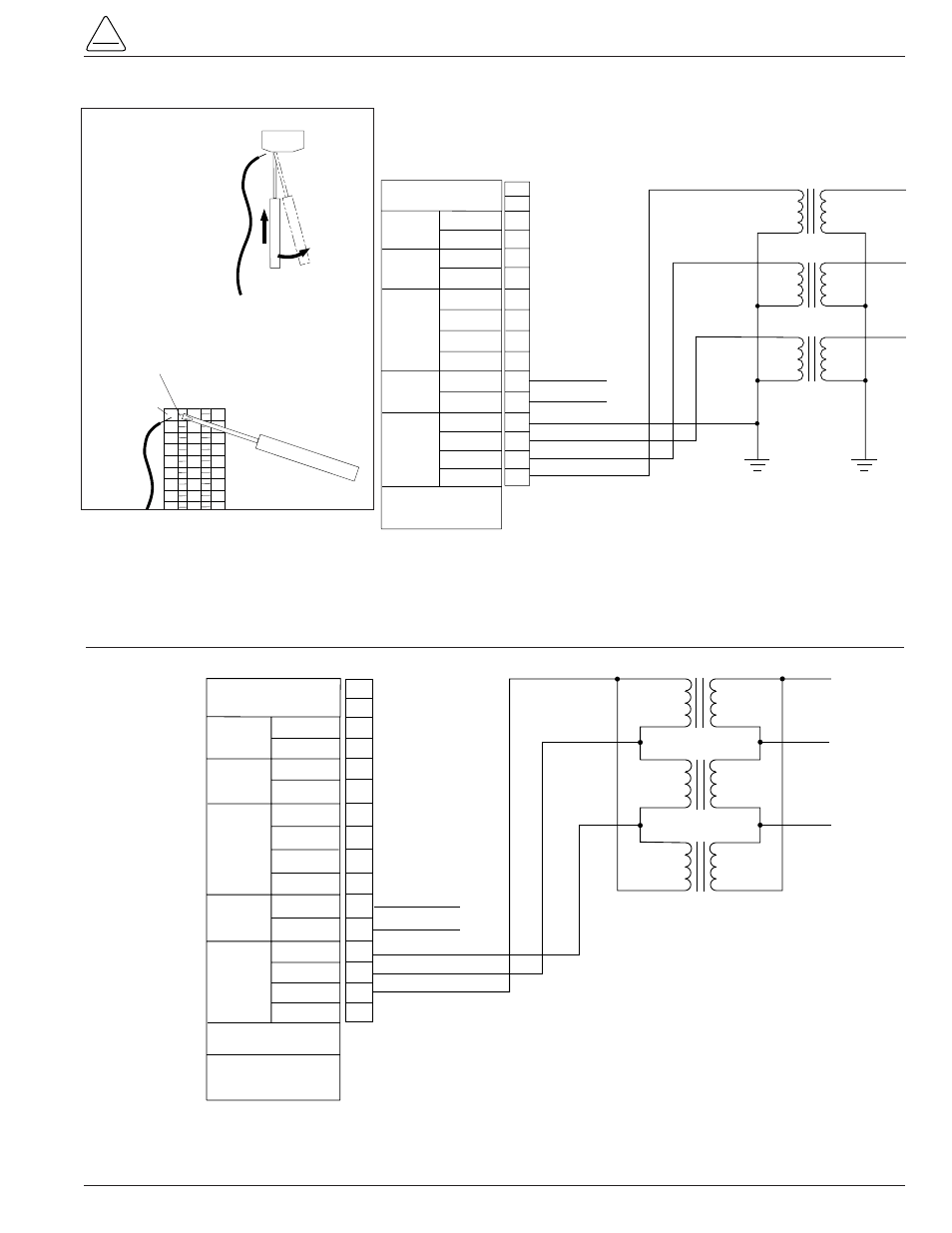

Figure 34.
Form 5 and Form 5 UDP Power and Low Voltage Closing customer connections to terminal block TB1
(120Vac or 240Vac Wye Connection).

AC

CUSTOMER

CONNECTIONS

SOURCE 2
POWER

OUTPUT

VOLTAGE

OUTPUT

VOLTAGE

*CØ

POWER

SOURCE

OUTPUT

*AØ

AC

CUSTOMER

CONNECTIONS

SOURCE 1
POWER

*REQUIRED FOR

CONTROL OPERATION

SEE POWER SUPPLY

MODULE FOR

CORRECT VOLTAGE

TB1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

240V CLOSING

OPTION

15

16

HOT (LV Closing Output)

HOT (LV Closing Output)

Figure 35.
Form 5 and Form 5 UDP Power and Low Voltage Closing customer connections to terminal block TB1
(120Vac or 240Vac Delta Connection).

TB1

16
15
14
13
12
11

10

9
8

1. Insert 3/32 inch flat-

blade screwdriver into
Wire Release and
Locking hole.

2. Carefully insert the

screwdriver along side
the locking clamp.

3. Pull toward the center

of terminal block TB1
until the locking clamp
opens.

4. Insert wire into Terminal

Connection hole.

5. Release screwdriver.

6. Carefully pull wire to be

sure it is secure.

To insert wire:

Terminal

Connection Hole

3/32 inch

Flat-Blade

Screwdriver

TB1

(Top View)

Connection

Wire

Wire Release

and Locking Hole

Note: Only slight pressure is

required to open the
locking clamp. Excessive
pressure can damage
the terminal block.
