PowerStorm 350 PCI Graphics Controller Overview
PowerStorm 300 AGP and 300/350 PCI Graphics Controllers 3–3
3.3 Connector Pinouts
Figure 3-2 shows the pins and signals found on the standard 15-pin VGA connector.
Figure 3-3 shows the pins and signals on the stereo connector.

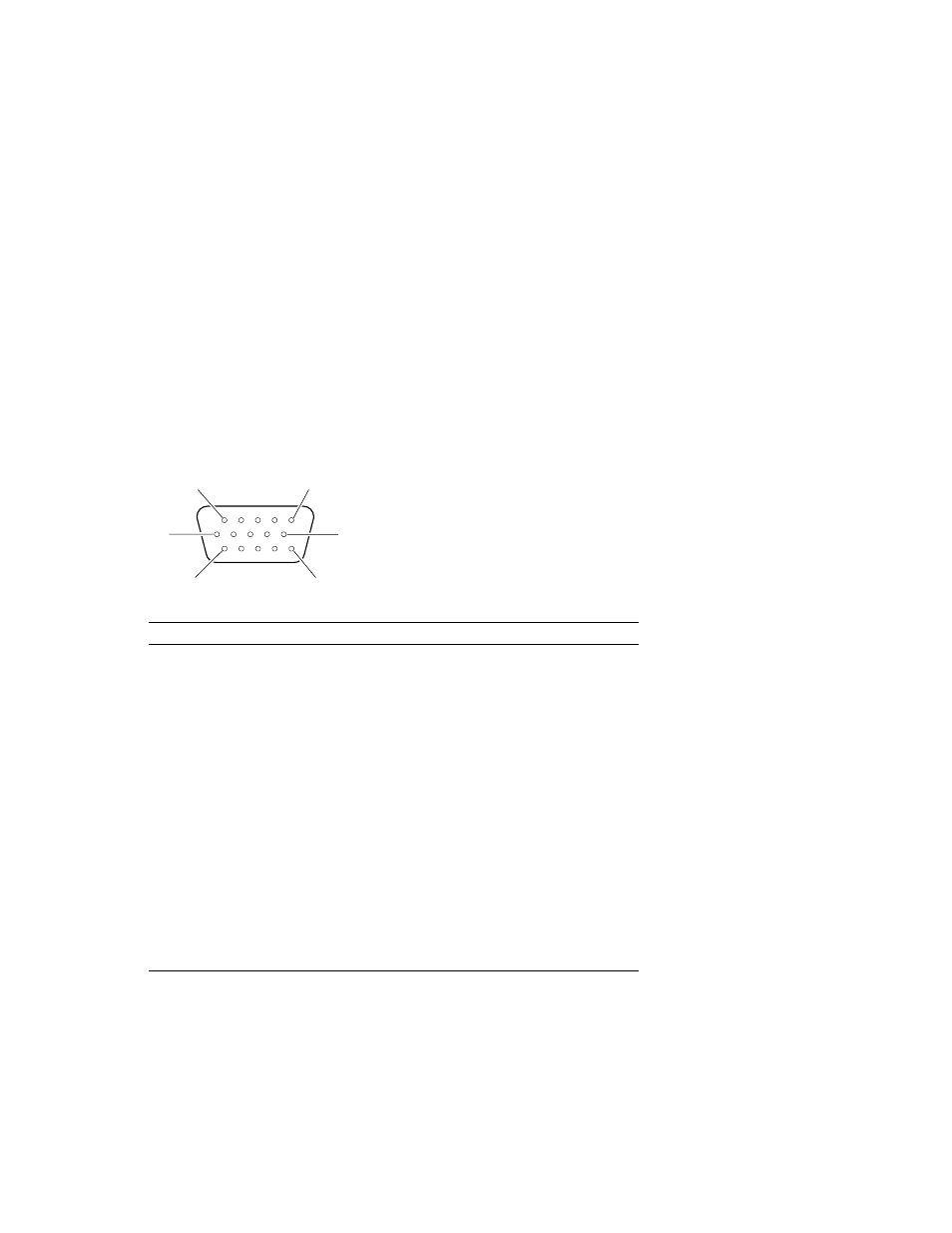

Figure 3-2 VGA Connector Pinouts
1
10
ML013579
5
6
11 15
Pin No. Signal
1 RED VIDEO
2 GREEN VIDEO or COMPOSITE SYNC with GREEN VIDEO
3 BLUE VIDEO
4 NC (no connection)
5 GROUND
6 GROUND
7 GROUND
8 GROUND
9 +5V
10 GROUND
11 NC (no connection)
12 SERIAL DATA
13 HORIZONTAL SYNC or COMPOSITE SYNC
14 VERTICAL SYNC (VCLK)
15 SERIAL CLOCK
