PowerStorm 350 PCI Graphics Controller Overview
3–2 PowerStorm 300 AGP and 300/350 PCI Graphics Controllers
Table 3-2 provides software support information for the PowerStorm 350 PCI graphics
controller.
Table 3-2 Compaq PowerStorm 350 PCI Software Support
Workstation
Minimum System
ROM Revision
O/S Version
Compaq Professional
Workstation XP1000 V5.68
X5.4 2935 Windows NT version 4.0
Tru64 UNIX 4.0E
The PowerStorm 350 PCI graphics controller (see Figure 3-1) contains one standard 15-pin
VGA connector and one 5-pin mini-DIN StereoVision connector on the PCI bulkhead.
The graphics controller contains one 3-pin jumper for enabling or disabling the VGA
capability when more than one VGA graphics controller is installed in the same
workstation.

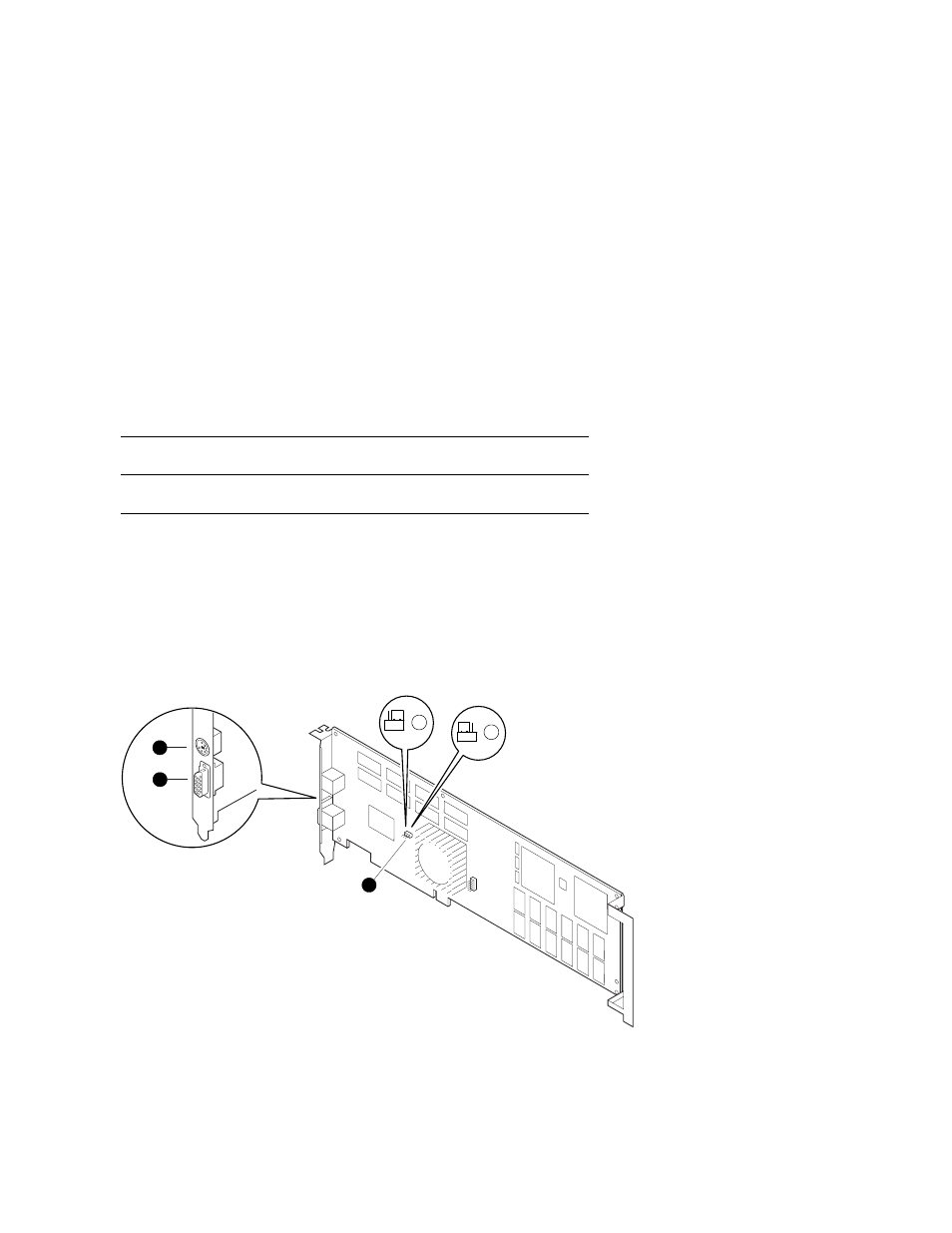

Figure 3-1 PowerStorm 350 PCI Graphics Controller
ML014911
5
4
1
2
3
➊
Standard 15-pin VGA connector
④
Shows the jumper setting for VGA
disabled
➋
StereoVision 5-pin circular DIN connector
⑤
Shows the jumper set for VGA enabled
(default)
➌
VGA enable/disable jumper
