PowerStorm 300 PCI Graphics Controller Overview
2–2 PowerStorm 300 AGP and 300/350 PCI Graphics Controllers
Table 2-2 provides software support information for the PowerStorm 300 PCI graphics
controller.
Table 2-2 Compaq PowerStorm 300 PCI Software Support
Workstation
Minimum System
ROM
O/S Version
Compaq Professional
Workstation XP1000 V5.68 Windows NT version 4.0
Compaq Professional
Workstation XP1000 X5.4 2935 Tru64 UNIX 4.0E/F
The PowerStorm 300 PCI graphics controller (see Figure 2-1) contains one standard 15-pin
VGA connector on the PCI bulkhead.
The graphics controller contains one 3-pin jumper for enabling or disabling the VGA
capability when more than one VGA graphics controller is installed in the same
workstation.

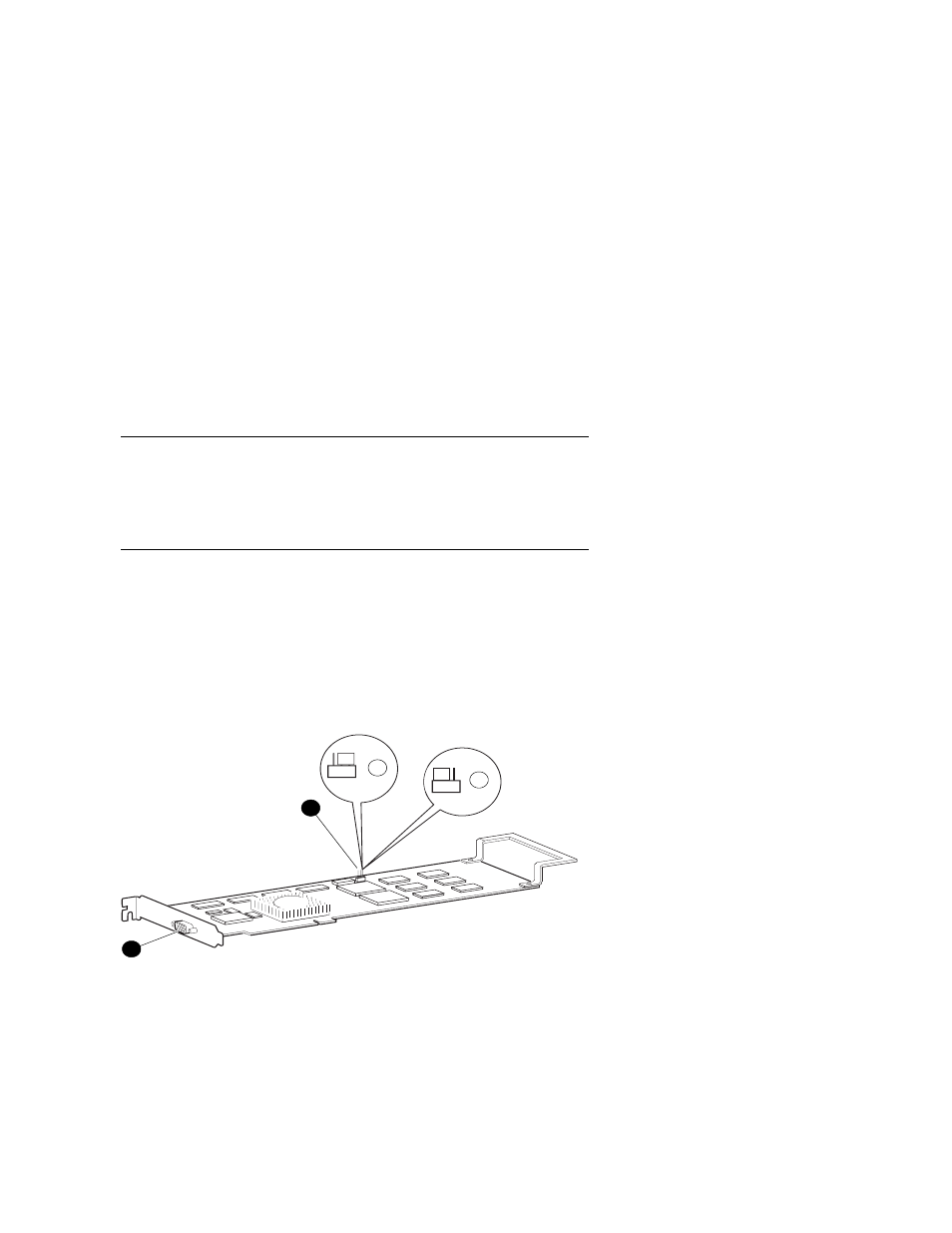

Figure 2-1 PowerStorm 300 PCI Graphics Controller
4
2
3
1
ML014615
➊
Standard 15-pin VGA connector
③
Shows the jumper setting for VGA
enabled (default)
➋
VGA enable/disable jumper
④
Shows the jumper set for VGA disabled
