PowerStorm 300 AGP Graphics Controller Overview
1–2 PowerStorm 300 AGP and 300/350 PCI Graphics Controllers
Table 1-2 provides software support information for the PowerStorm 300 AGP graphics
controller.
Table 1-2 Compaq PowerStorm 300 AGP Software Support
Workstation
Minimum System
ROM
O/S Version
Compaq Professional
Workstation AP200 4/2/99 Windows NT 4.0
Compaq Professional
Workstation AP400 4/24/98 Windows NT 4.0
Compaq Professional
Workstation AP500 6/5/98 Windows NT 4.0
Compaq Professional
Workstation SP700 11/13/98 Windows NT 4.0
The PowerStorm 300 AGP graphics controller (see Figure 1-1 and Figure 1-2) contains one
standard 15-pin VGA connector on the AGP bulkhead.
The graphics controller contains one 3-pin jumper for enabling or disabling the VGA
capability when more than one VGA graphics controller is installed in the same
workstation.

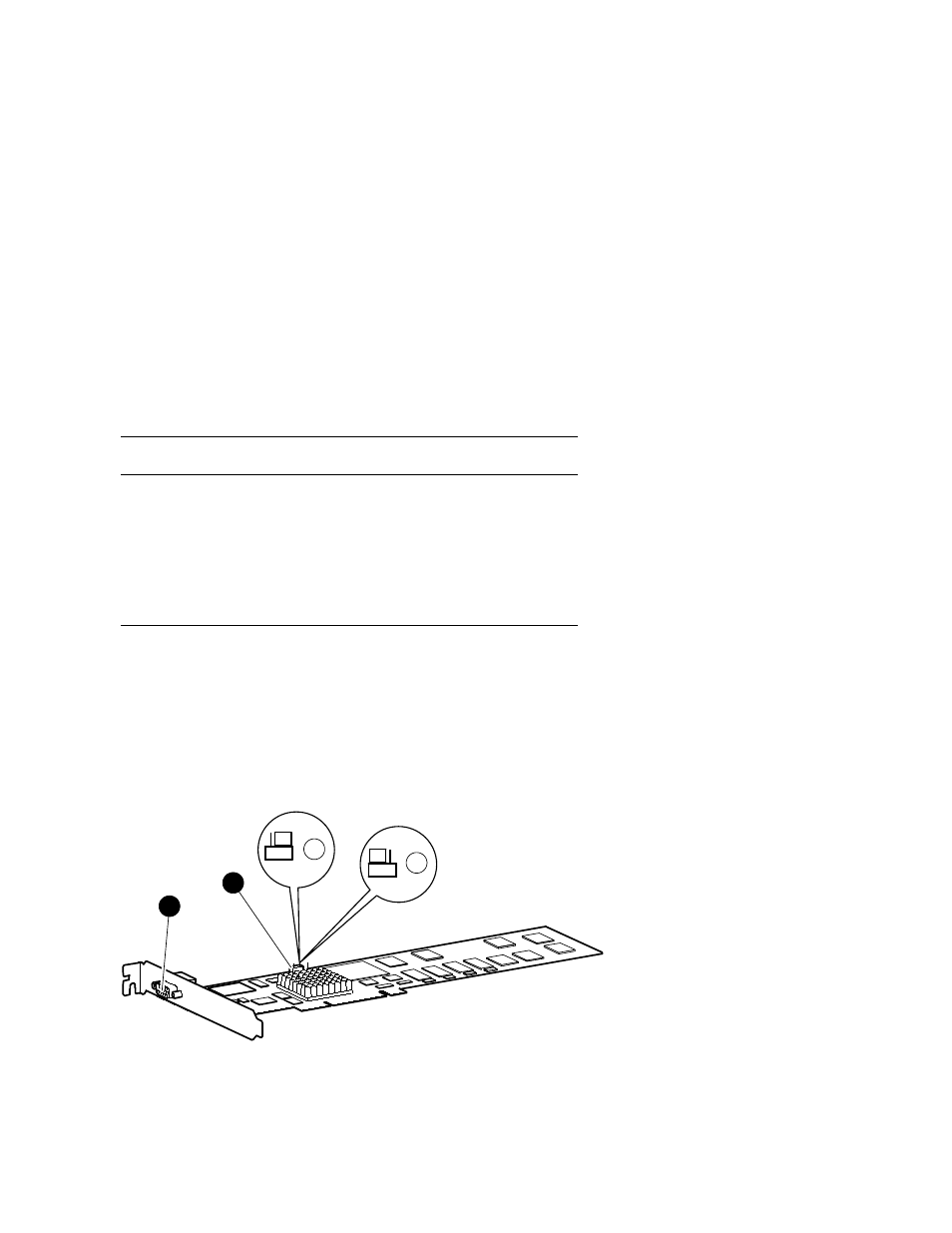

Figure 1-1 PowerStorm 300 AGP Graphics Controller (ATX)
ML014617
1
4
3
2
➊
Standard 15-pin VGA connector
③
Shows the jumper set for VGA enabled
(default)
➋
VGA enable/disable jumper
④
Shows the jumper set for VGA
disabled
