PowerStorm 300 AGP Graphics Controller Overview
1–4 PowerStorm 300 AGP and 300/350 PCI Graphics Controllers
1.3 Connector Pinout

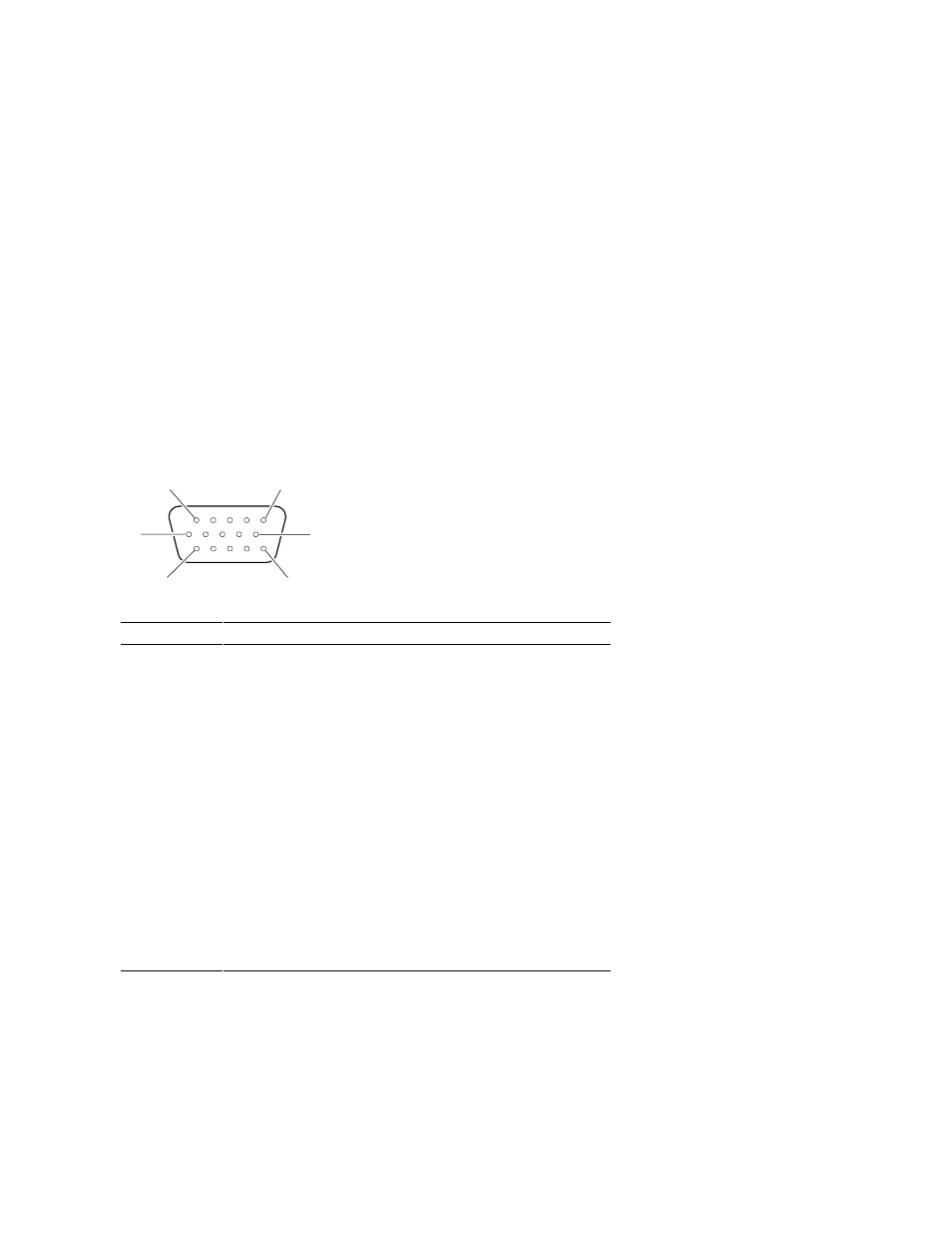

Figure 1-3 contains a listing of the pins and signals found on the standard 15-pin VGA
connector.
Figure 1-3 VGA Connector Pinouts
1
10
ML013579
5
6
11 15
Pin No. Signal
1 RED VIDEO
2 GREEN VIDEO or COMPOSITE SYNC with GREEN VIDEO
3 BLUE VIDEO
4 NC (no connection)
5 GROUND
6 GROUND
7 GROUND
8 GROUND
9 +5V
10 GROUND
11 NC (no connection)
12 SERIAL DATA
13 HORIZONTAL SYNC or COMPOSITE SYNC
14 VERTICAL SYNC (VCLK)
15 SERIAL CLOCK
