CF 147 15 version 1.1
keys together for two
seconds.
•
The Safe Setup method restricts access to the Trade Critical settings. Changes made in this mode will not
increment the calibration counter. In this manual, items marked with indicate that the setting is trade critical.
If an attempt is made to enter Safe Setup using the incorrect passcode, or if an attempt is made to alter a trade
critical setting while in Safe Setup, the instrument will respond with the message ENTRY DENIED. Refer to
Passwords section 6.6 for more information.

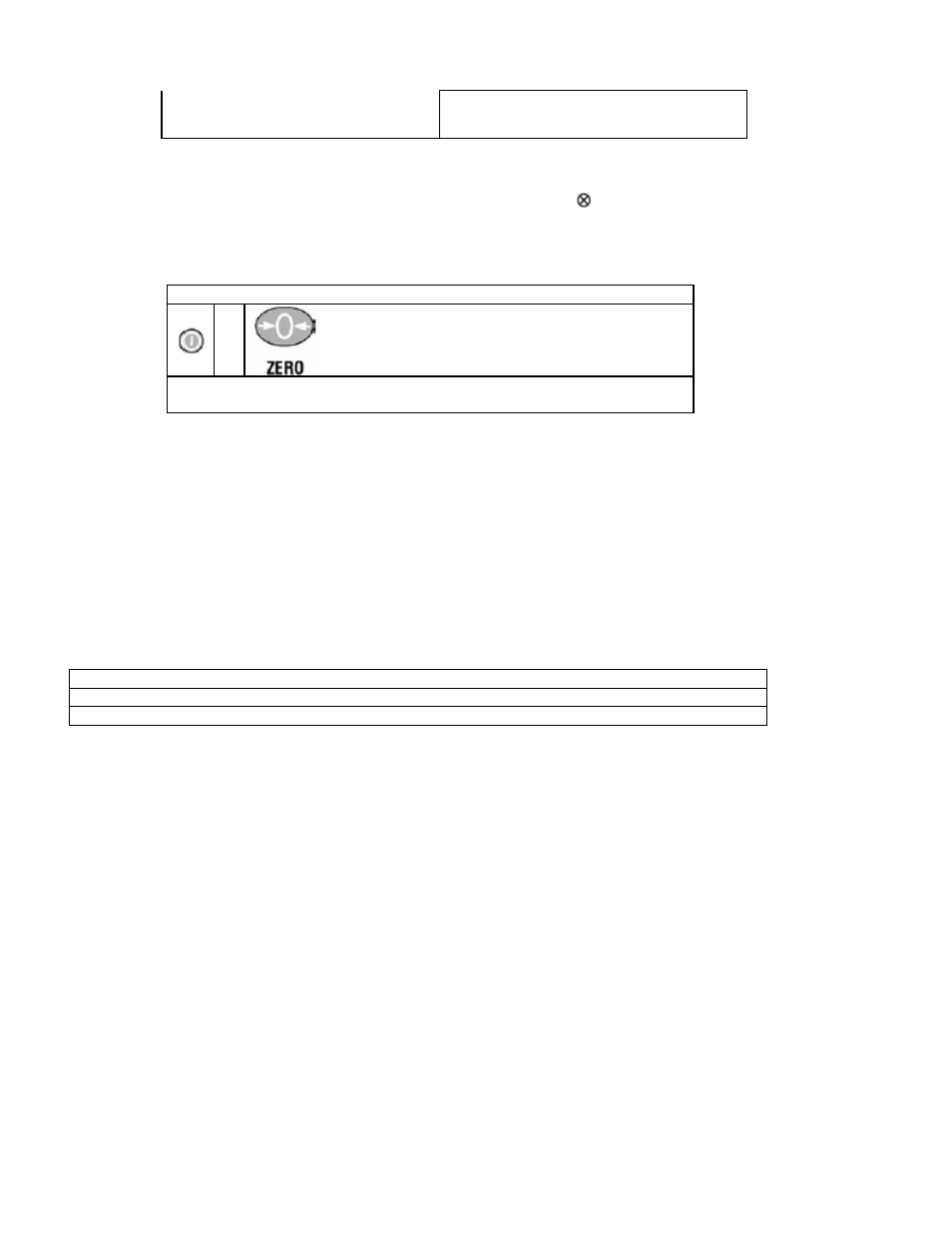

SAFE SETUP
+
To access Safe Setup, first ensure the instrument is on. Then press and
hold both the and keys together for two seconds.
7.1.1 Setup Display Prompts
When accessing Full or Safe Setup the instrument will beep twice and then display the following:
•
FULL or SAFE (depending on setup access type)
•
SETUP
•
Software Version (e.g. V1.0)
•
Calibration Counter (e.g. C.00010). Refer to Calibration Counter section 6.5 for more information.
•
If a passcode has been configured, the ENTER PASS prompt will display and the setup passcode must be
entered to gain access. Refer to Passwords section 6.6, SAFE.PC (Safe Security Passcode for Digital Setup)
section 7.4.4 and FULL.PC (Full Security Passcode for Digital Setup) section 7.4.4 for more information.
•
The title of the first Group (i.e. BUILD) will then be displayed.
7.2 Exiting Full or Safe Setup
To save settings, exit setup and return to the normal weighing mode use one of the following methods:
• Method 1: Press and hold both the and keys together for two seconds.
• Method 2: Press and hold both the and keys together for two seconds.
• Method 3: Press the key repeatedly. When - End - displays press or .
The instrument will beep and then display the following:
•
SAVING
•
Software Version (e.g. V1.0)
•
Calibration Counter (e.g. C.00010). Refer to Calibration Counter section 6.5 for more information.
•
The current weight will then display.
Warning: If the power is interrupted while in setup (i.e. by disconnecting the power cable or pressing the
key), unsaved settings will be lost.
7.3 Groups and Items
All keypad setup options in the instrument are organized in a tree structure made up of Groups and Items. To
simplify this document, Groups and Items will be notated as follows (GROUP:ITEM). Refer to Setup Menu Quick
Reference section 12.3 for a list of all Groups and Items.
7.3.1 GRP (Group)
Setup is divided into a series of Groups. Each group has a distinctive group title. All options in any one group have
related functions. The <GRP> key can be used to cycle through the available groups.
7.3.2 ITM (Item)
Each group is divided into individual Items. Each item represents a parameter that can be changed. Pressing the
