Great Plains Mfg., Inc.
Installation Instructions 13
11/08/2006 148-771M
Install Valve Assembly
Refer to Figure 21 (Closed Center valve assembly shown, but Open
Center mounting shown - both are similar.)
The valve mounting bracket (23) itself mounts, via two
holes, to the right side of the right weight hanger
➀
.
99. Select the two (29) 802-082C,
(HHCS 1/2-13X1 3/4 GR5) bolts,
and insert them through the valve assembly
mounting plate (23).
Note: If you are installing the Closed Center kit, omit
next step. Resume with step 101.
100. Select the four (41) 804-113C,
(WASHER FLAT 1/2 USS HARD PLT).
Slide them over the bolts (29).
101. Move the entire valve mount assembly (23) Left, so
the bolts (29) pass through the holes in the weight
hanger
➀
.
102. Select two each (38) 804-015C,
(WASHER LOCK SPRING 1/2 PLT) and
(34) 803-020C,
(NUT HEX 1/2-13 PLT),
and tighten them onto the bolts.
T
B
F
B
L
R
29
41
38
➀

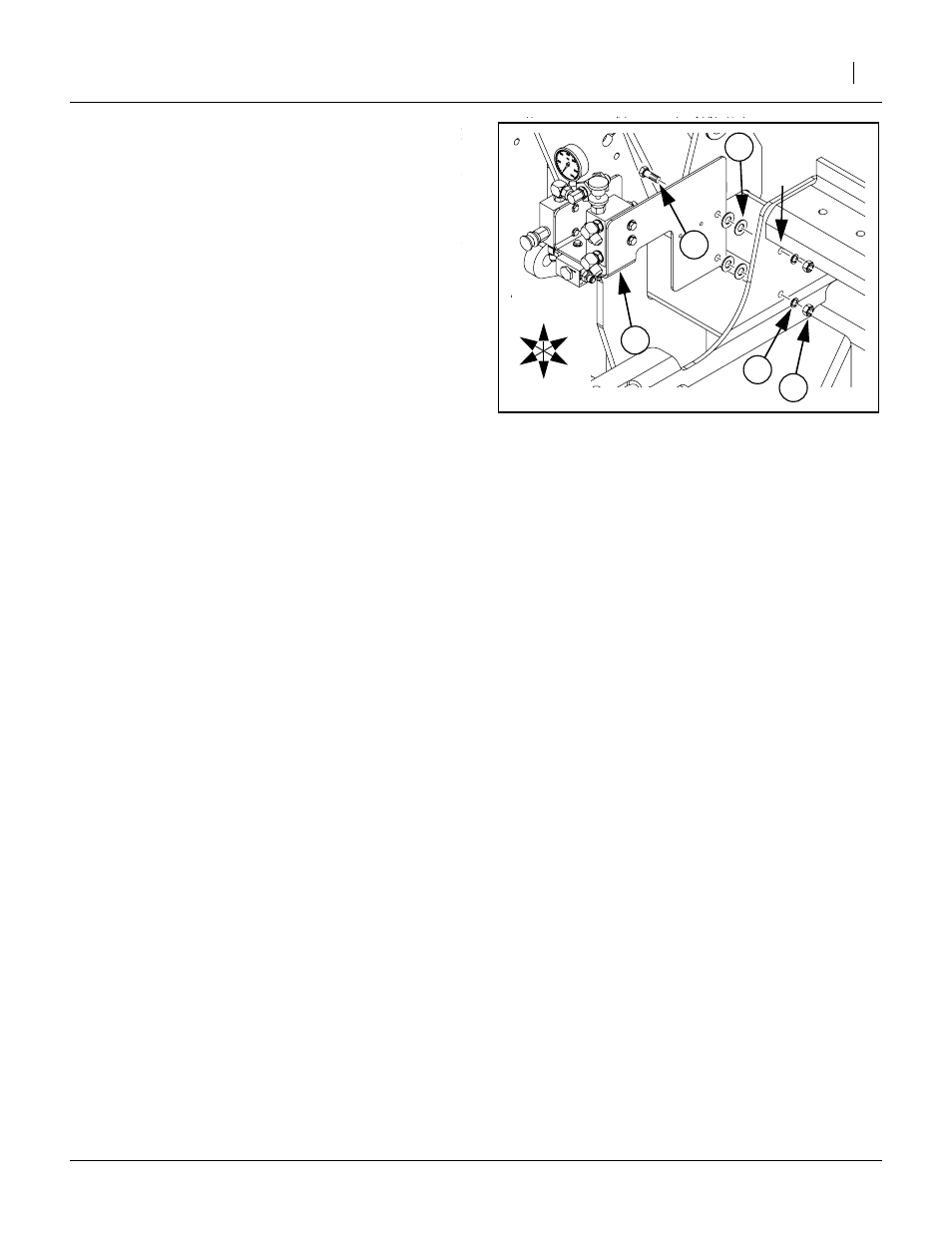

Figure 21
Mount Valve Assembly
25135
34
23
