Introduction
The 800EW Fertilizer Kits add the capability to meter dry
fertilizer with the Great Plains 8-Foot End-Wheel Drill.
Material may be metered during seeding, or separately.
The fertilizer rate is independent of seed rates from main
box or Small Seeds box.
Models Covered
Kits Covered
This manual describes installation of four kits. Kits are
provided in two versions for each row spacing:
175-248A 800 FERT 6 FLD INST ON SGS
Use this kit with an 800-1506 drill which also has
the Small Seeds or Agitator options (or when
simultaneously installing another option which
includes an Accessory Drive).
175-249A 800 FERT 6 FLD INST WITH DRIVE
Use this kit with an 800-1506 drill which has only a
Main Seed Box without Agitator (or when simulta-
neously installing the Small Seeds option version
which does not include an Accessory Drive).
175-250A 800 FERT 7.5 FLD INST ON SGS
Use this kit with an 800-1275 drill which also has
the Small Seeds or Agitator options (or when
simultaneously installing another option which
includes an Accessory Drive).
175-251A 800 FERT 7.5 FLD INST WITH DRV
Use this kit with an 800-1275 drill which has only a
Main Seed Box without Agitator (or when simulta-
neously installing the Small Seeds option version
which does not include an Accessory Drive).
Note: These kits are for pull-type 8-foot end-wheel drill.
There are separate kits for three-point 8-foot drills.
Notations and Conventions
Right-hand and left-hand as used in
this manual are determined by facing
the direction the machine will travel
while in use unless otherwise stated.
An orientation rose in some line art
illustrations shows the directions of:
Up, Back, Left, Down, Front, Right.
Definitions
The following terms are used throughout this manual.
IMPORTANT !
A crucial point of information related to the preceding
topic. Read and follow the directions to remain safe,
avoid serious damage to equipment and ensure
desired field results.
Note: Useful information related to the preceding topic.
Call-Outs
Drill Description
800-1275 8-Foot 12-Row 7.5in Spacing
800-1506 8-Foot 15-Row 6in Spacing

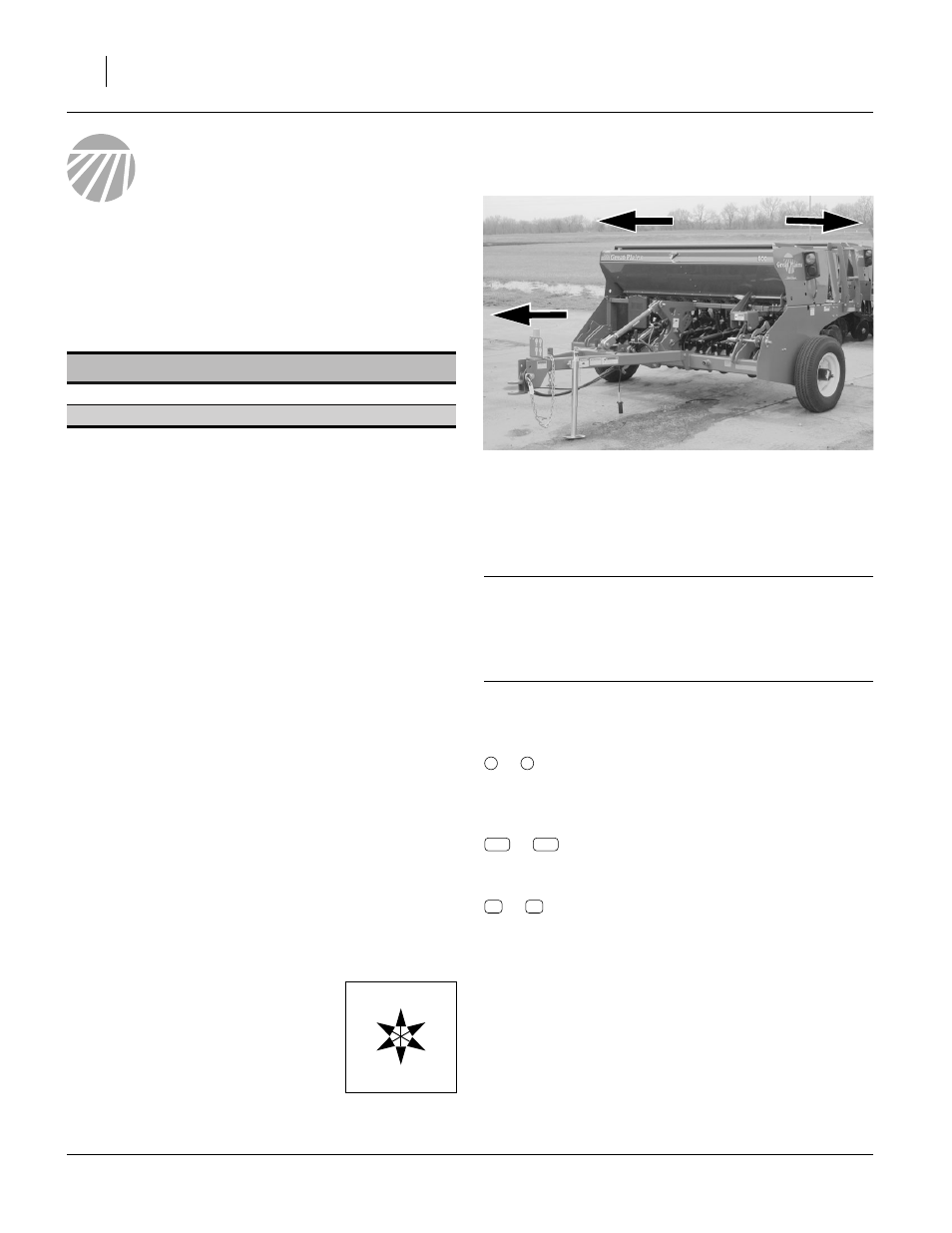

Figure 1
800 End Wheel Drill
29565
L R
U
D
F
B
L
R
to Single-digit callouts identify components in
the currently referenced Figure or Figures.
These numbers may be reused for different
items from page to page.
to 3-digit callouts in the range 100 to 242 refer-
ence new parts from the new parts lists
beginning on page 31.
to 2-digit callouts in the range 11 to 45 refer-
ence affected existing parts from the table
starting on page 36. The descriptions match
those in your Parts Manual. The narrative
and table indicate any re-use of the parts.
1 9
100 242
11 45
