Great Plains 800EW Operator Manual - Manual (Page 20)

18 175-248A, -249A, -250A, -251A
175-253M 02/24/2010
Re-Install Small Seeds Box
If the drill did not previously have a Small Seeds box
installed, continue at “Re-Install Ladder” on page 24.
Refer to Figure 24
63. Check that the four 9 /
16
in (14mm) handle holes at
the upper corners of the rear face of the fertilizer box
are open. If not remove any fasteners used to plug
those holes. This hardware is not re-used.
64. Select four (4) sets saved:
802-203C HFSS 1/2-13X1 1/2 GR5
803-169C NUT HEX FLG. LOCK 1/2-13 PLT.
65. Position the Small Seeds box , with lid latches (not
shown) to the rear, directly behind the new fertilizer
box. Insert bolts
through forward face of end
plates, through handle holes in fertilizer box. Loosely
secure with lock nuts
.
66. Select four (4) sets saved:
802-034C HHCS 1/2-13X1 1/4 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
67. Insert bolts through lower break of Small Seeds
box end plates, and then through top break of side
frame. Add lock washers
and nuts . Tighten all
eight nuts ( , ).
Install SGS to Fertilizer Chain
If the drill did not previously have a Small Seeds box
installed, continue at “Re-Install Ladder” on page 24.
Review chain clip and slack reference information on
page 28 before installation.
Refer to Figure 25
68. Select one (1) new:
136-014D CHAIN RL #40 79 PITCHES
Route chain :
around fertilizer jackshaft output sprocket ,
around SGS jackshaft input sprocket , and
over SGS input idler .
69. Adjust idler for recommended slack.

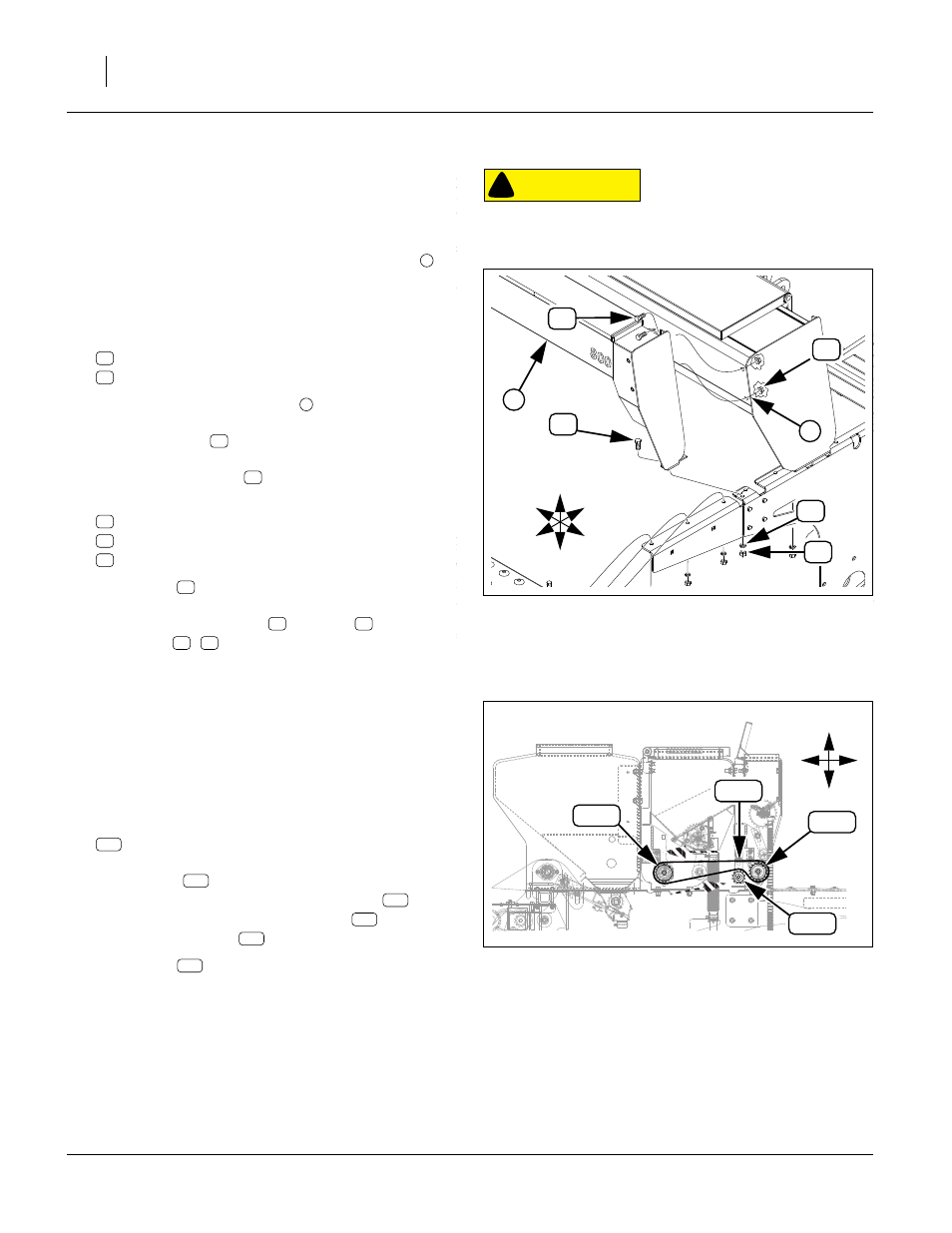

Figure 24
Re-mount Small Seeds Box
29569
1
CAUTION !
A hoist or at least three (3) people are required.
The empty Small Seeds assembly weighs approximately
200 pounds (91 kg).
U
D
B
F
R
L
28
44
30
37
2
38
1
30
38
2
30
38
28
44
37
28
44 38
37 38
Figure 25
Fertilizer-SGS Chain Routing
28307
U
D
F B
110
217
17T
12i
110
110
217
17T
12i
12i
