Remove Walkboard Support(s)
All short supports are replaced by longer supports in
“Install Supports and Walkboard” on page 20.
Refer to Figure 5
10. At the left frame, remove and save four (4) sets of:
803-020C NUT HEX 1/2-13 PLT
804-015C WASHER LOCK SPRING 1/2 PLT
and three (3)
802-079C HHCS 3/8-16X1 1/4 GR5
and one (1)
802-214C RHSNB 1/2-13X1 1/4 GR5
These parts are not re-used.
Then remove one of:
175-413D SEED ONLY LH LADDER MNT
175-416D LH WLK BRD SUPP SML SEEDS
This support is not re-used.
11. If the drill has the Small Seeds option, at the right
frame, remove and save four (4) sets of:
803-020C NUT HEX 1/2-13 PLT
804-015C WASHER LOCK SPRING 1/2 PLT
802-079C HHCS 3/8-16X1 1/4 GR5
These parts are not re-used.
Then remove one:
175-417D RH WLK BRD SUPP SML SEEDS
This support is not re-used.
Remove Handles
If the Small Seeds attachment is installed, skip to
step 13, as the handles remain on the SGS box after
Fertilizer installation.
Refer to Figure 6
12. At each grab handle on the back corners of the main
seed box, remove and save two sets (four sets total)
of:
802-203C HFSS 1/2-13X1 1/2 GR5
803-169C NUT HEX FLG. LOCK 1/2-13 PLT.
and two:
119-190D HANDLE
The handles are re-mounted on the new Fertilizer
box at step 107 on page 24. The lights (not shown in
the Figure) remain on the Main Seed box.

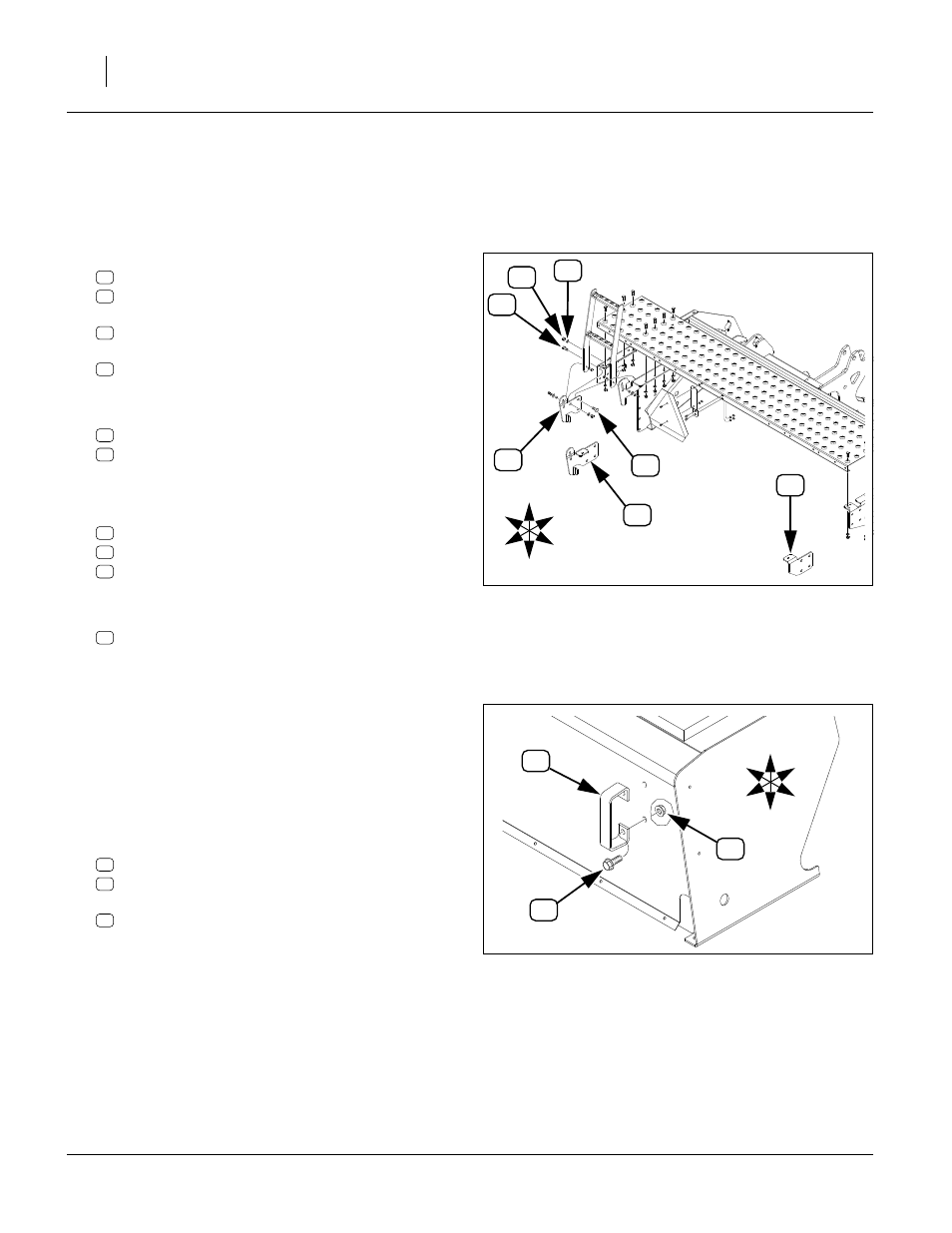

Figure 5
