Great Plains 800EW Operator Manual - Manual (Page 26)

24 175-248A, -249A, -250A, -251A
175-253M 02/24/2010
Re-Install Ladder
Refer to Figure 36
103.Select the saved:
119-294H 3PT HINGED WALKBOARD LADDER
and two saved:
802-079C HHCS 3/8-16X1 1/4 GR5
104.Position the ladder inverted (pivot holes at bot-
tom), and with the side frame bend tipped forward,
between the slotted holes
in the left end walk-
board supports.
Hole in place by inserting the bolts through the
ladder pivot holes and support slots.
105.Select two (2) saved:
119-278D WALKBOARD LADDER PIVOT BUSHING
Add a bushing to each bolt . Press the bushing
into the support slots.
106.Select two (2) sets saved:
804-011C WASHER FLAT 3/8 USS PLT
804-013C WASHER LOCK SPRING 3/8 PLT
803-014C NUT HEX 3/8-16 PLT
Add a flat washer , then lock washer to each
bolt . Secure with nuts .
Re-Install Handles
If Small Seeds is also installed, skip step 107 (handles
are already installed on the Small Seeds box).
Refer to Figure 37
107.Select two saved:
119-190D HANDLE
and four (4) sets saved:
802-203C HFSS 1/2-13X1 1/2 GR5
803-169C NUT HEX FLG. LOCK 1/2-13 PLT.
Position each the handle at the 9 /
16
in (14mm)
handle holes at the upper corners of the rear face
of the fertilizer box. Insert a bolt from the outside
of the box, and secure with lock nuts inside the
box.

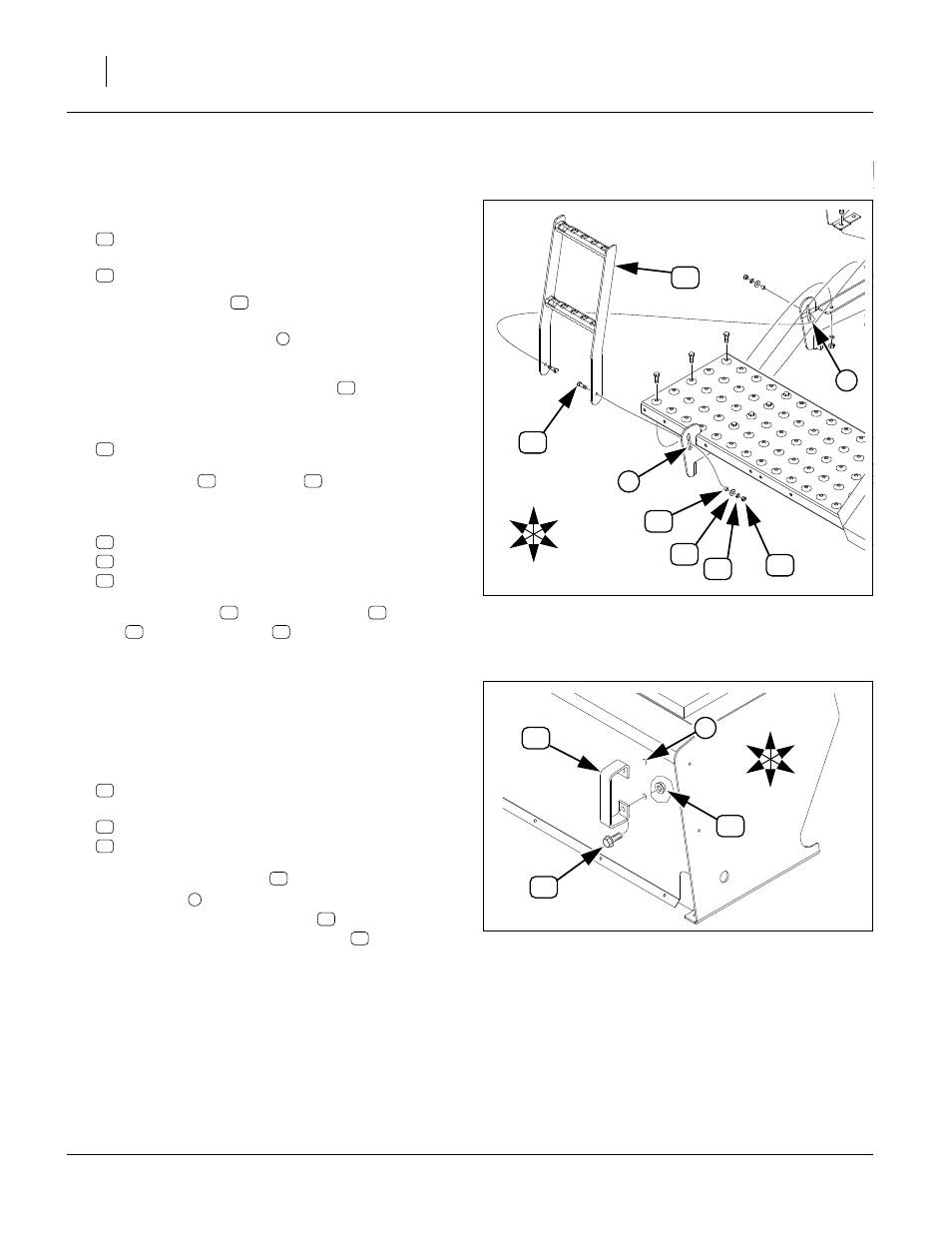

Figure 36
Re-install Ladder
29569
U
D
B
F
R
L
9
13
29
35 42
41
12
9
13
29
13
9
29
12
12 29
41
42
35
41 42
29 35
Figure 37
Re-install Grab Handle
18651
30
38
11
U
D
B
F
R
L
1
11
30
38
11
1
30
38
