Install Hardware 15
02/24/2010 175-253M
Install Gearbox Output Chain
Review chain clip and slack reference information on
page 28 before installation.
Refer to Figure 18
49. Select one (1) new:
136-036D CHAIN RL #40 70 PITCHES
Route chain :
around gearbox accessory sprocket ,
around accessory shaft input sprocket , and
over gearbox accessory idler .
50. Adjust idler for recommended slack.
Install Transmission Chain
51. Select one new:
136-250D CHAIN RL #40 96 PITCHES
Routing - Fertilizer Only
If optional Agitator is installed, continue at “Routing -
Fertilizer and Agitator”.
Refer to Figure 19
52. Observing the clip orientation instructions on page
13, route the chain :
around accessory shaft output sprocket ,
around fertilizer jackshaft shaft input sprocket ,
under rear idler , and
over front idler .
53. Continue at step 55.
Routing - Fertilizer and Agitator
If optional Agitator is not installed, use the steps at
“Routing - Fertilizer Only” above.
Refer to Figure 20
54. Observing the clip orientation instructions on page
13, route the chain :
around accessory shaft output sprocket ,
over agitator shaft input sprocket ,
around fertilizer jackshaft shaft input sprocket ,
under rear idler , and
over front idler .
55. Adjust idlers for recommended slack.

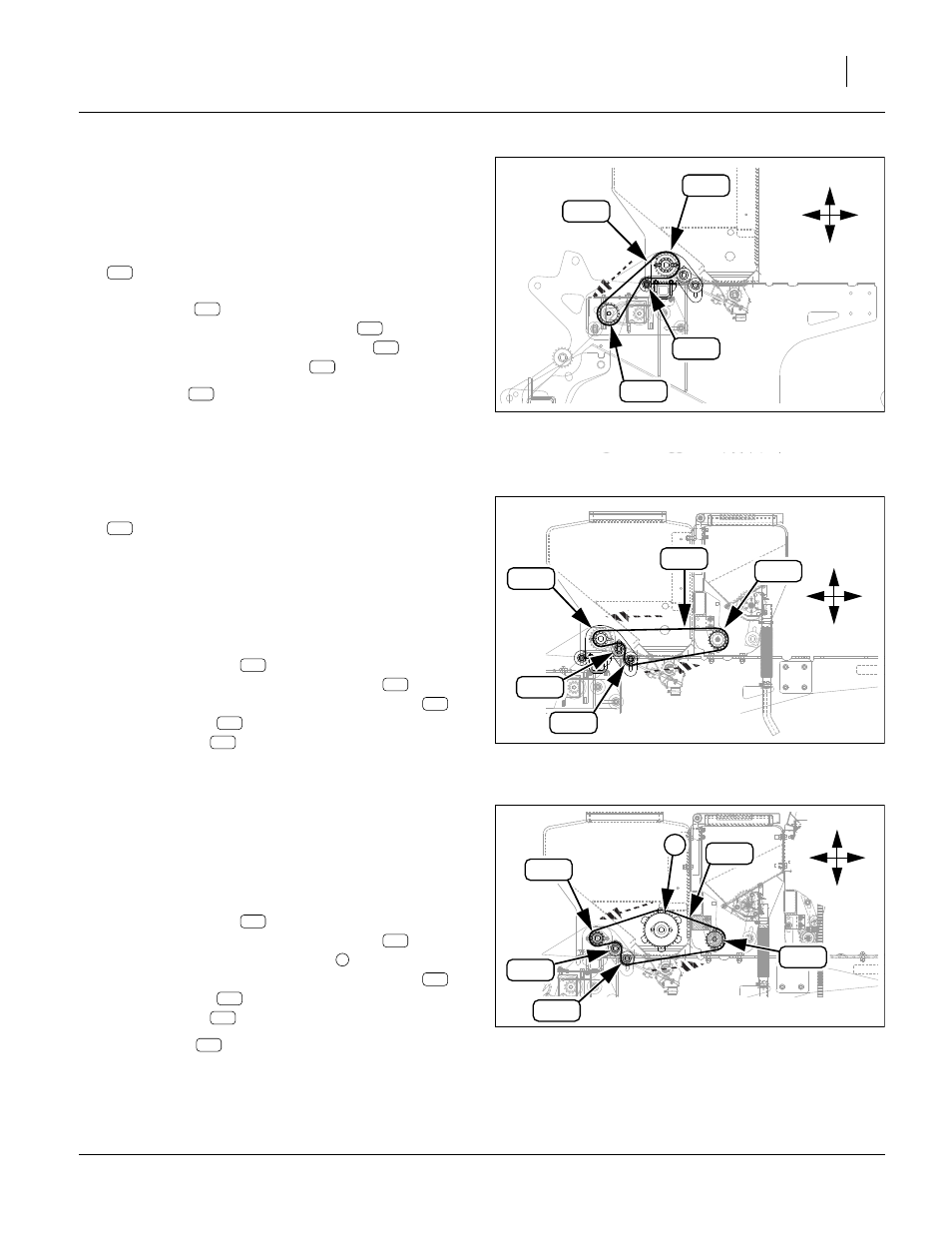

Figure 18
Gearbox/Jackshaft Chain Routing
28304
U
D
F B
219
229
111
222
111
111
219
222
229
229
Figure 19
Fertilizer Chain Routing
28305
U
D
F B
113
221
220
229
229
113
113
221
220
229
229
Figure 20
Fertilizer+Agitator Chain Routing
28307
U
D
F B
220
113
221
229
229
9
113
221
9
220
229
229
229
