Remove Existing Hardware 9
02/24/2010 175-253M
Remove Transmission Chain
If an Accessory Drive system is not yet installed on this
drill, skip to step 21 on page 11.
Refer to Figure 7
13. Remove one of:
136-014D CHAIN RL #40 79 PITCHES
136-096D CHAIN RL #40 76 PITCHES
136-250D CHAIN RL #40 96 PITCHES
This chain is replaced by a new chain in the kit,
which may or may not be the same part number.
Release Hoses Near Drive
Refer to Figure 8
14. Loosen fasteners securing each of two:
800-064C HOSE CLIP 13/16 ID
Disconnect Small Seeds Hoses
If Small Seeds (SGS) is not installed on this drill, con-
tinue at step 21 on page 11.
The existing SGS hoses are replaced by new hoses to
side delivery tubes, at step 75 on page 19.
Refer to Figure 9
15. At each row, release and remove two (2) each:
800-321C HOSE CLAMP NO.12 3/4 ID
and one (1)
816-513C SGS HOSE 85 RIBS
These parts are not re-used.

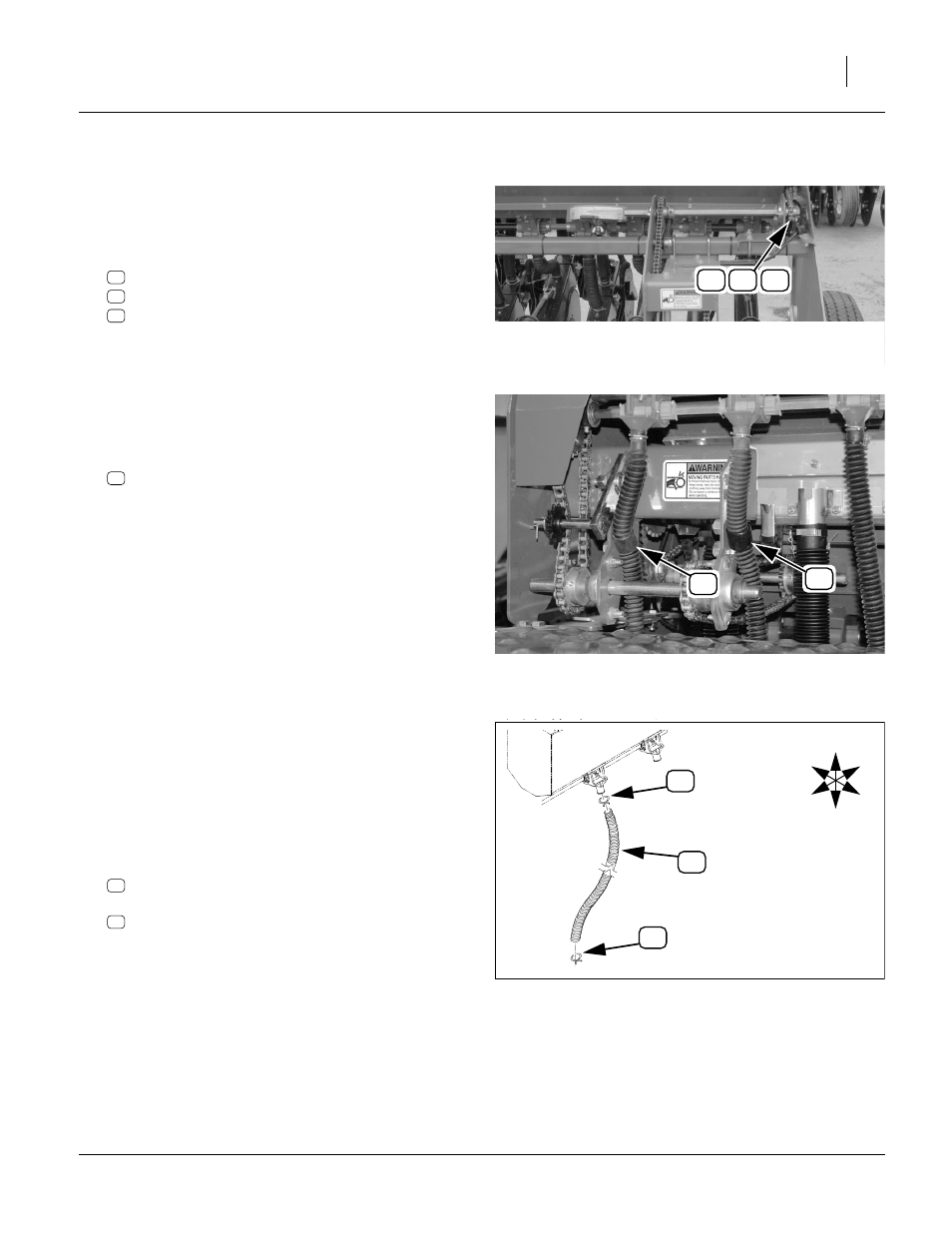

Figure 7
Accessory Transmission Chain
29566
16 17 18 16
17
18
Figure 8
Small Seeds Final Drive
29008
23
23
23
Figure 9
Remove Small Seeds Hose
28212
24
45
U
D
L
R
B
F
24
24
45
