Install Supports and Walkboard
Steps depend on drill configuration. The edge channels
of the walkboard wrap around support and/or frame
breaks. Using a specific order eases the tasks.
• If Small Seeds was not installed on the drill, continue
at step 81 below.
• If Small Seeds was installed on the drill, continue at
step 95 on page 22.
The decal application is covered in a later section of this
manual.
Supports and Walkboard, w/o Small Seeds
LH Walkboard Support (w/o SGS)
Refer to Figure 28
81. Select one (1) each new:
142-077D LH WLK BRD SUPP FERT
802-214C RHSNB 1/2-13X1 1/4 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
82. Position the support , break up, inside the left
side rear frame. Insert the round head bolt , from
outside drill left, at the top front hole . Loosely
secure with lock washer and nut .
83. Select and three (3) sets new:
802-034C HHCS 1/2-13X1 1/4 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
Insert hex head bolts from the outside, at the
remaining support-to-frame holes. Loosely secure
with lock washer
and nut .

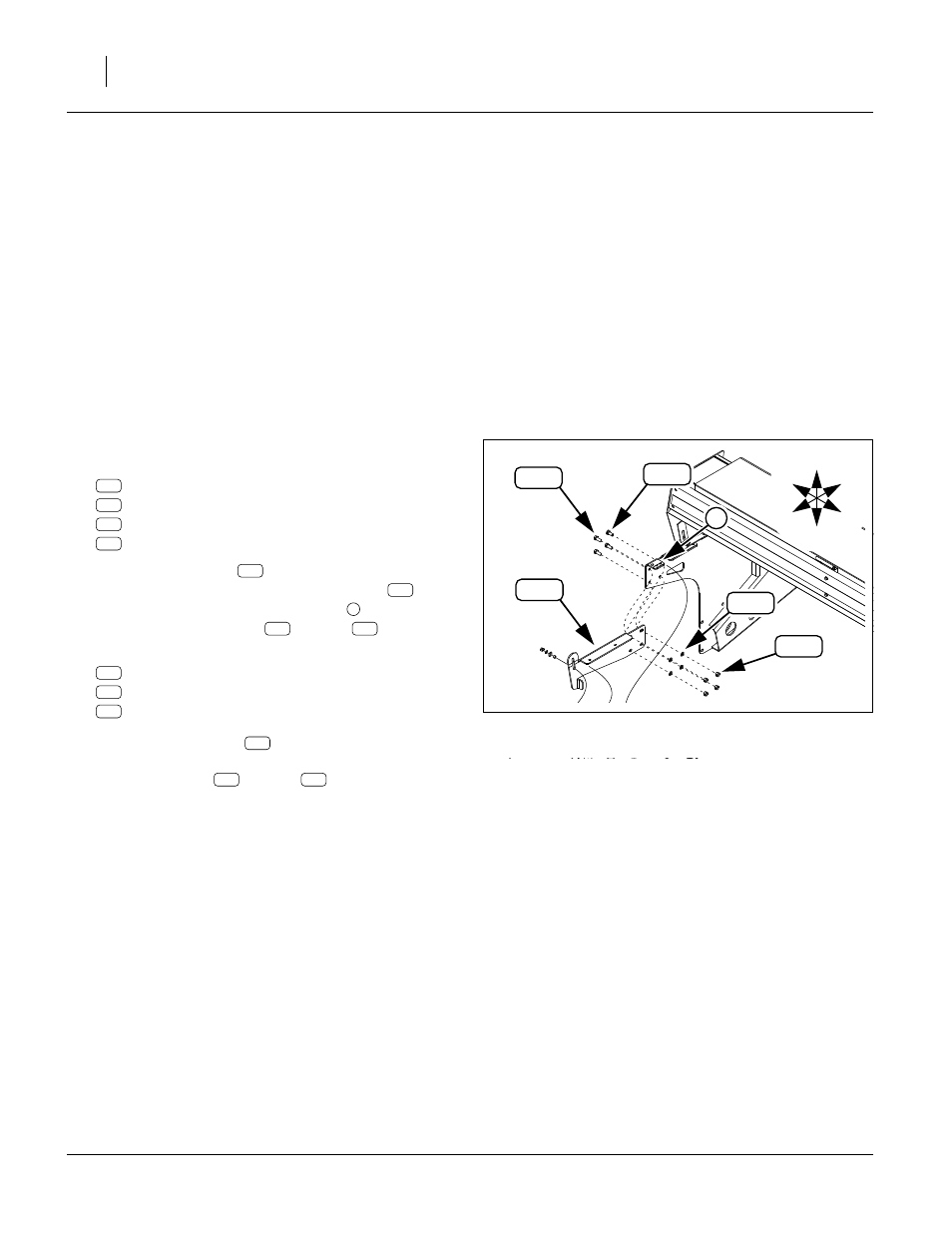

Figure 28
