Position Walkboard on Drill (with SGS)
Two people are needed for the next two steps.
Refer to Figure 34
99. Select and two (2) sets new:
802-034C HHCS 1/2-13X1 1/4 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
100.Maneuver the walkboard/support assembly so that
the four-hole bolt faces of the supports are inside
the rear side frames.
At each side, insert one hex head bolt from the
outside, at the upper rear hole. Loosely secure with
lock washer
and nut .
Secure Walkboard (w/ SGS)
Refer to Figure 35
101.Select four (4) sets new:
802-034C HHCS 1/2-13X1 1/4 GR5
804-015C WASHER LOCK SPRING 1/2 PLT
803-020C NUT HEX 1/2-13 PLT
Insert hex head bolts from the outside, at the
remaining support-to-frame holes. Loosely secure
with lock washer
and nut .
102.Tighten all walkboard and support bolts.

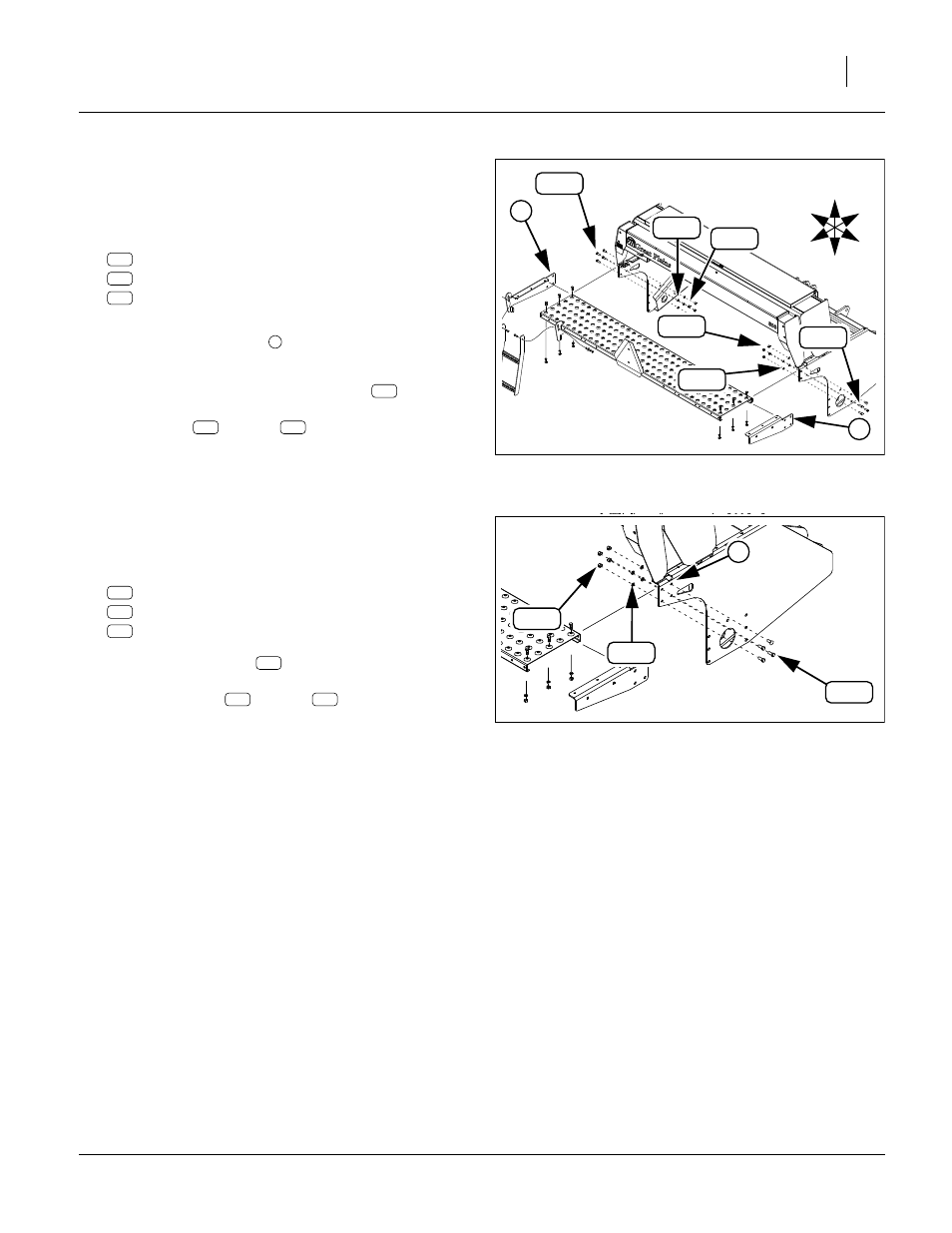

Figure 34
Position Walkboard (w/ SGS)
29573
172
U
D
B
F
R
L 9
9
204
191
172
191
204
172
204
191
9
172
204 191
Figure 35
Secure Walkboard (w/ SGS)
29573
1
172
191
204
172
204
191
172
204 191
