TSF660
500-644M 9/1/2009
40
Elevator Slide Adjustment
Refer to Figure 24
The polyethylene slides on the elevator can be ad-
justed to take out any side-to-side play.
Periodically check the slide pads (A) for wear. As
the pads wear, tighten 1/2-inch bolts (B) on both
sides of elevator frame (C) until pads just touch
frame.
Tighten the slides so that there is a minimal
amount of play in the elevator.
Important: When tightening the slides be sure
to keep the elevator slide centered in the ele-
vator mount. If the elevator is adjusted to one
side there can be an interference.
Cycle the elevator a few times to ensure there is
no binding and that the slides are sufficiently
tightened.

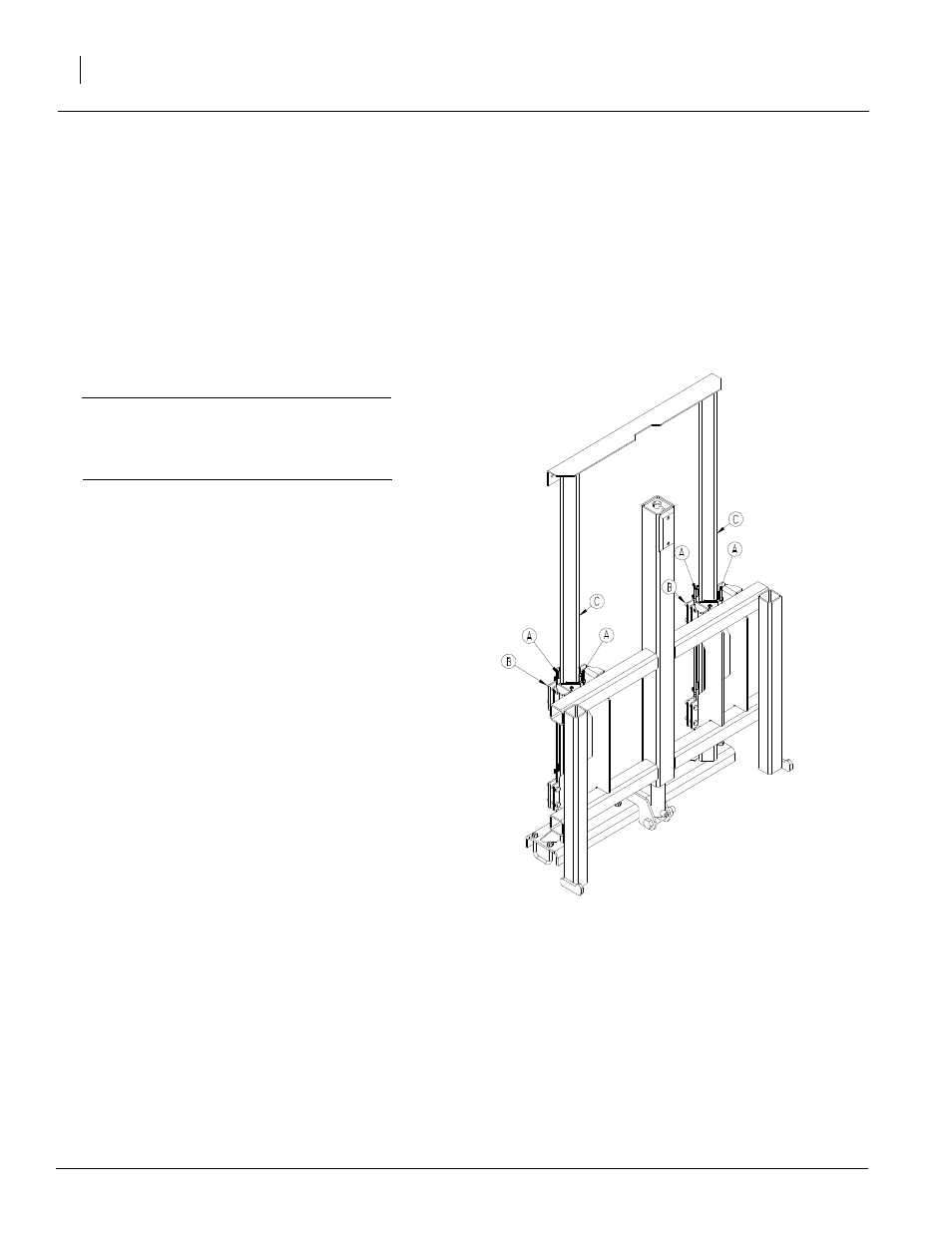

Figure 24
Hydraulic Elevator
17000
