Leveling Boom
!
WARNING
Pinch point hazard. Your fingers, hands or arms could
be seriously injured or severed if caught in the folding
boom sections. Shut off tractor and remove key before
adjusting shims.
Note: The boom sections must be level across the
span for even spraying.
Refer to Figure 13

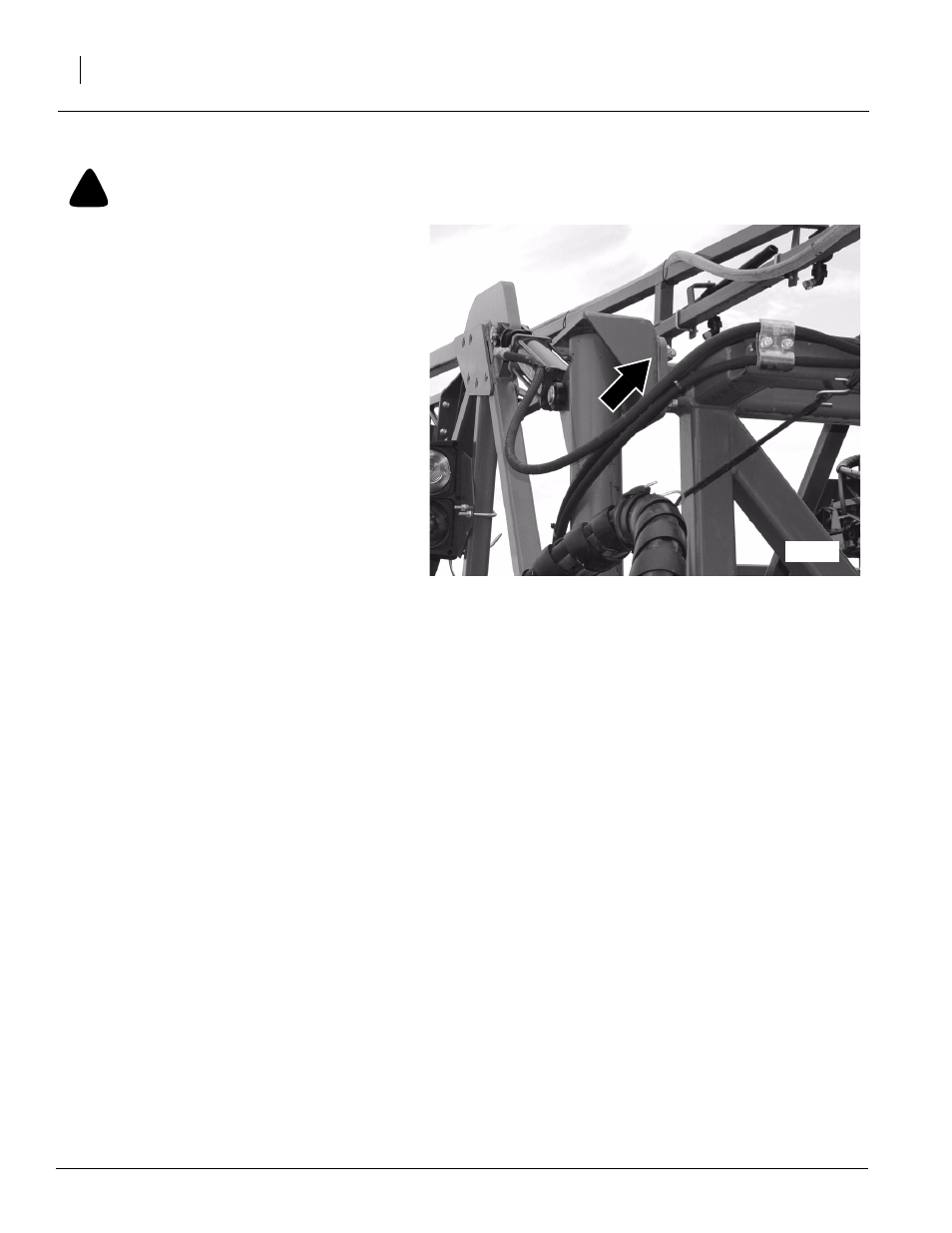

To adjust the inner arm place supports under
boom and loosen bolts holding plate (A) at the top
of the pivot. Add or remove shims as necessary
and retighten bolts.
21762
Figure 13
Shims
