Tank Rinse and Flush System
The Tank Rinse and Flush is a factory installed
feature that compliments the Boom Flush op-
tion.The Tank Rinse and Flush feature will use the
fresh water in the 50 gallon flush tank to rinse out
the main sprayer tank in the field.
Refer to Figure 16
Before operation make sure the flush tank is filled
with fresh, clean water. To operate the Tank Rinse
and Flush, refer to the following instructions:
1. Completely empty the chemical in the main
sprayer tank by turning the agitation off the
last pass and spraying it out in the field.
2. Make sure all boom valves and pump are
turned off.
3. Turn the agitation valve #1 (in the control pan-
el) to “FLUSH”, and rotate the tank valve #2
from “MAIN TANK” to “FLUSH TANK”.
4. Operate the pump with the sprayer stationary,
and rinse the tank until 1/3 of the flush tank
volume (17 gallons) is consumed and then
stop the pump.
5. With the sprayer pump off, turn the agitation
valve #1 from “FLUSH” to “OFF”.
Refer to Figure 17
6. Rotate the tank valve #2 from “FLUSH TANK”
to “MAIN TANK”.
7. Operate the pump and spray out the full vol-
ume of liquid (deposited into the main sprayer
tank from the Flush Tank) in the field just fin-
ished.
8. Repeat steps two through seven twice more
until the flush tank is empty and the main
sprayer tank has been rinsed completely
three times.
9. Reset the agitation pressure before filling the
main sprayer tank again.
24493

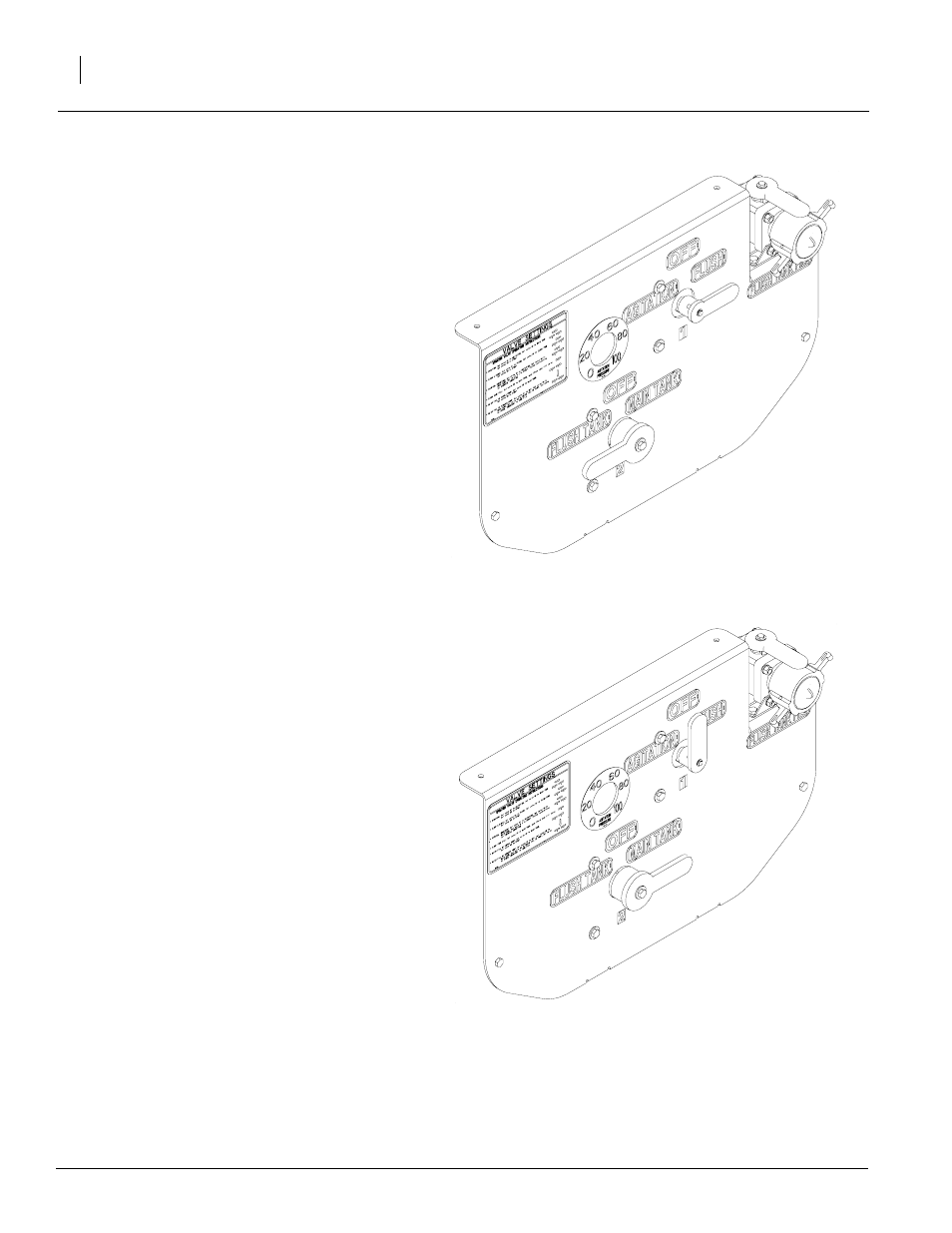

Figure 16
Control Panel
24494
Figure 17
Control Panel
