19 Preparation and Setup
Axle Wheel Spacing Adjustment
!
CAUTION
Axle position must be located correctly to avoid exces-
sive tongue weight or negative tongue weight which
could cause mechanical failure resulting in personal
injury.
Refer to Figure 5
The wheel spacing of the axle can also be adjust-
ed for differing row spacings.
!
CAUTION
Do not adjust the wheel spacing wider than 120". To
do so may cause a falling axle hazard while the spray-
er is in service.

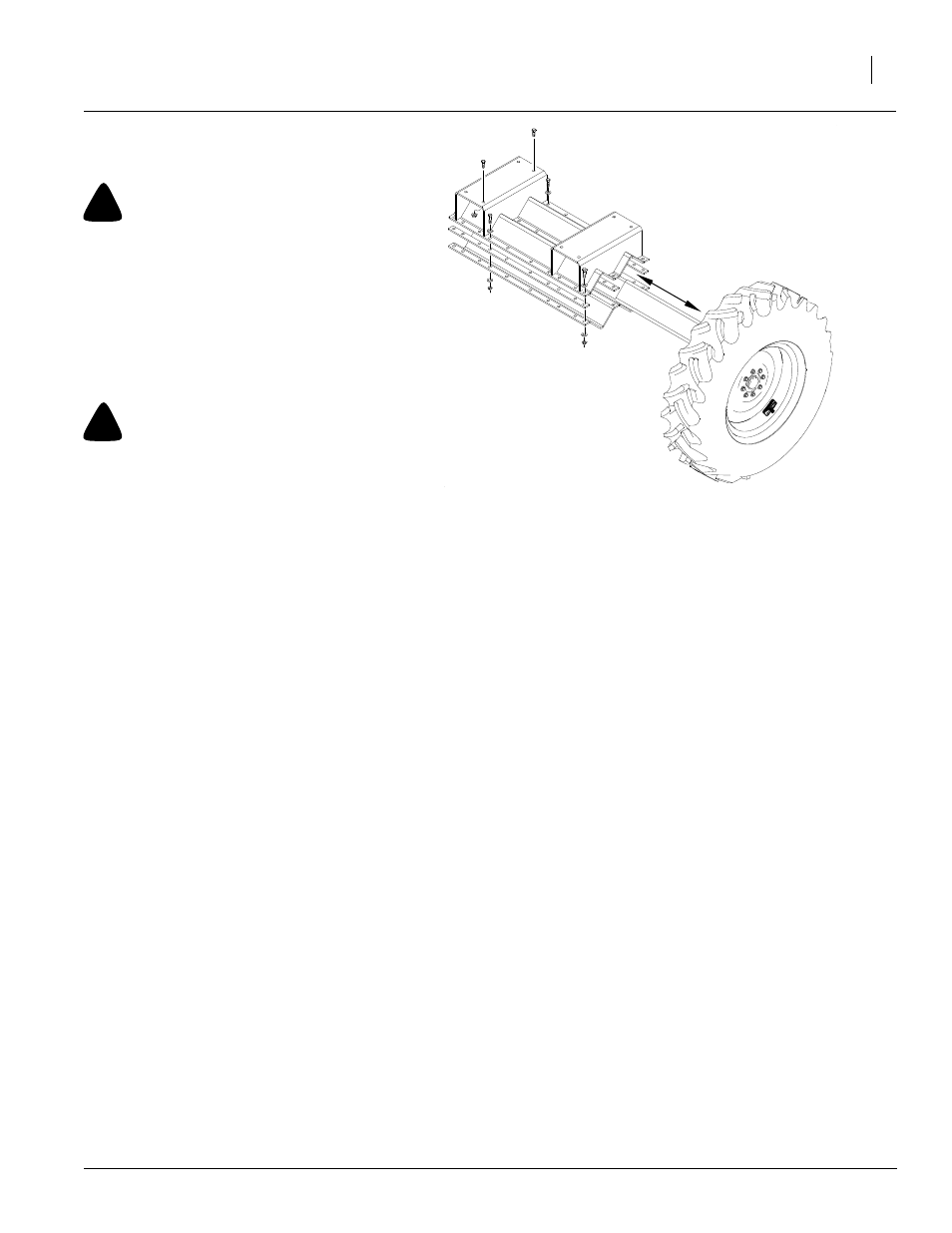

Figure 5
Sprayer Axle Assembly
24035
