TSF660
500-644M 9/1/2009
36
Tank Fill Using Existing Pump Operations (If
Equipped) (2006-)
The Tank Fill can be used to fill the main sprayer tank us-
ing the existing sprayer pump. To do so refer to the
following instructions:
1. Make sure sprayer pump is off and insert supply tank
hose into the main quick-fill coupler. Leave quick-fill
valve off.
Refer to Figure 19
2. Turn agitation valve #1 to “OFF”. Turn tank valve #2 to
“MAIN TANK”.
3. Open supply tank valve making sure that positive
head pressure is maintained at the quick-fill to prevent
back-flow from the sprayer tank.
!
WARNING
Make sure the supply tank is higher than the sprayer tank. Fail-
ure to do so can cause back-flow from the sprayer tank causing
sickness, serious injury or death from water contamination.
4. Open quick-fill valve under the main frame.
Refer to Figure 20
5. Turn product valve #4 from “OFF” to “TANK FILL”.
6. Make sure the boom section valve switches are all off,
start the pump and fill the tank.
7. When finished, follow this order:
a. Turn off pump.
b. Rotate product valve #4 from “TANK” to “OFF”.
c. Shut quick fill valve under walkboard.
d. Shut off supply tank valve.
e. Rotate operation valve #3 to “SPRAY”.
NOTE: Make sure there is positive head pressure from
supply tank during this procedure.

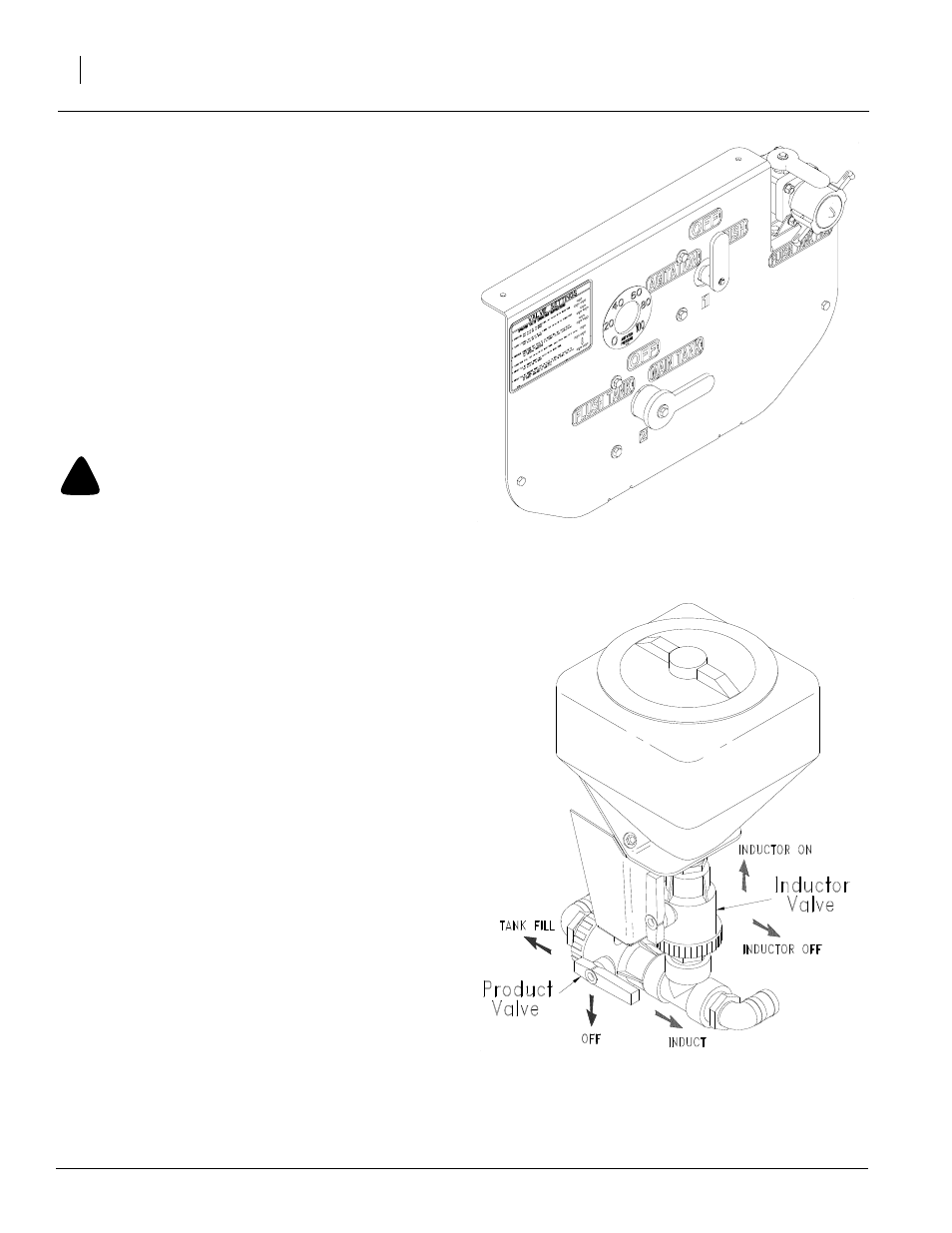

Figure 19
Control Panel
Figure 20
Product Valve and Inductor Valve
14993
24494
