A clevis hitch is used. Park the sprayer in an open,
flat area with the jack in the park position. See figure
2.
Refer to Figure 2
1. Park the sprayer in an open, flat area with the
jack in the park position.
Refer to Figure 3
2. Back the tractor up to the sprayer. Secure tractor
to sprayer with bolt (1), flat washer (2), and hex
nut (3).
3. Now that the sprayer is attached to the tractor,
prepare to level the frame of the sprayer by se-
curely supporting the front of the frame with a
hoist.
4. Adjust the frame by moving the hitch up or down.
Hitch may be turned over for further adjustment.
The frame should be sloping to the front by
about one degree. This will allow the fluid to
drain into the sump.
13811

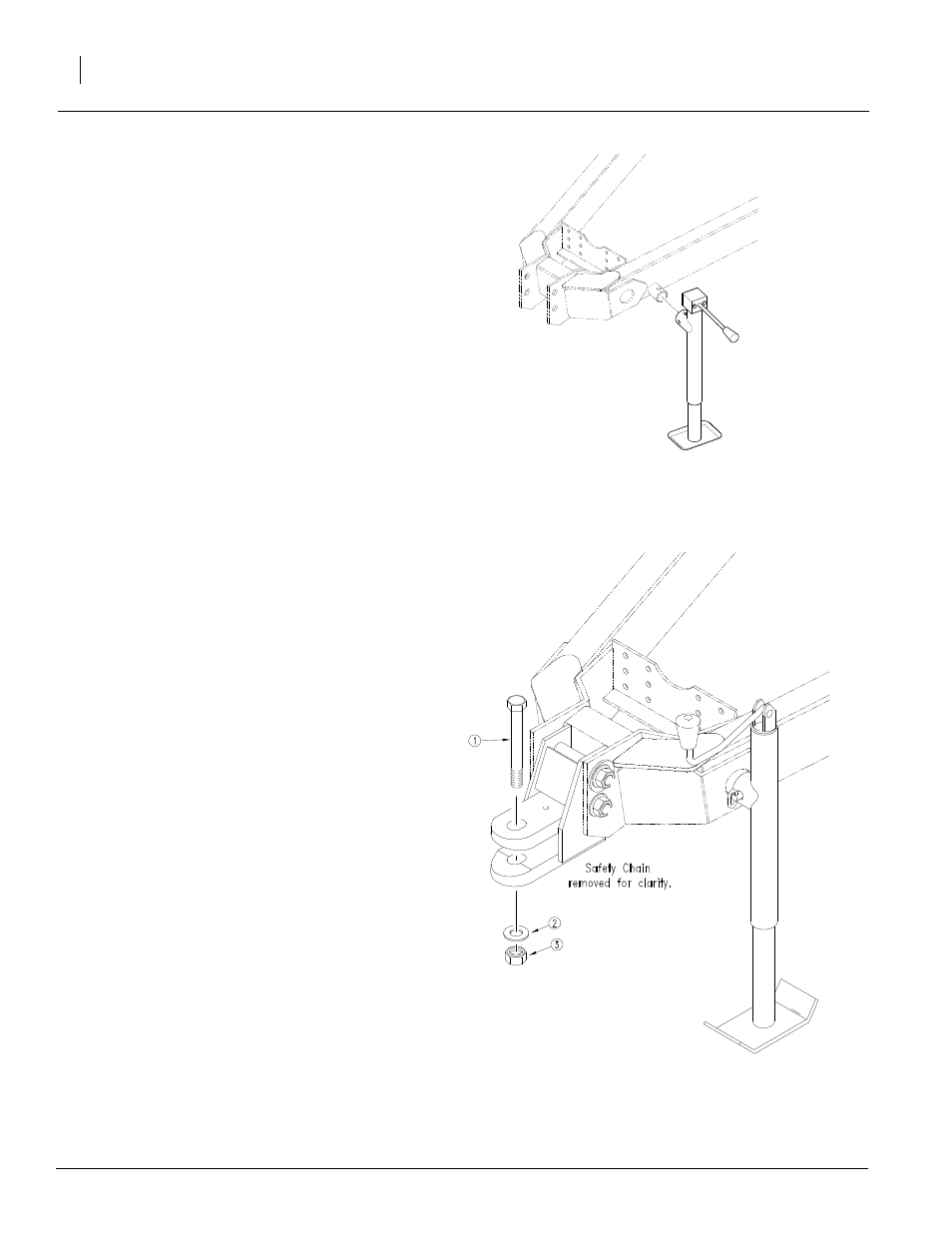

Figure 2
Jack In Parking Position
24497
Figure 3
Hitching Tractor to Sprayer
